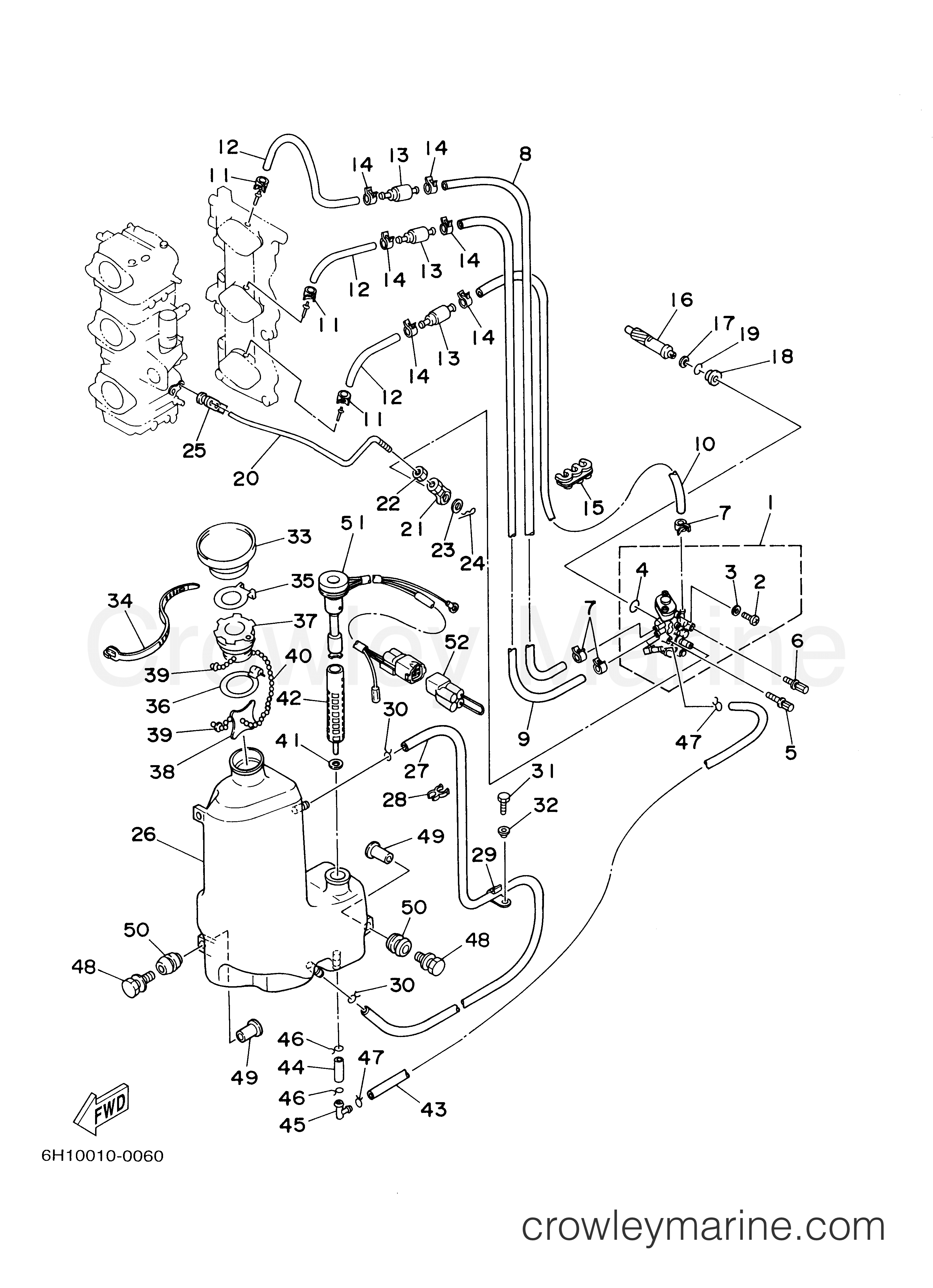

2004 Outboard 90hp - 90TLRC OIL PUMP diagram
1
Yamaha Motors
Oil Injection Pump Assembly6H1-13200-02-00
Required: 1
OIL INJECTION PUMP ASSY
In stock
Only 2 remaining
$209.95
You save $52.95
2
Yamaha Motors
Pan Head Screw98580-04006-00
Required: 1
.PLUG, DRAIN
Supersedes: 6R3-13471-00-00
$2.72
You save $0.48
3
Yamaha Motors
Breather Bolt Gasket1YU-13187-00-00
Required: 1
.GASKET
Supersedes: 6L2-13475-00-00
$7.22
You save $1.27
In stock
Only 2 remaining
$6.48
You save $1.62
$1.91
You save $0.34
$1.84
You save $0.46
In stock
5+ in stock
$4.76
You save $1.19
In stock
Only 2 remaining
$5.92
You save $1.48
9
Yamaha Motors
Hose (L340)90445-07M45-00
Required: 1
HOSE (L330)
Supersedes: 90445-07240-00
$6.29
You save $1.11
10
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L250)
Supersedes: 90445-07M44-00
In stock
Only 2 remaining
$5.92
You save $1.48
In stock
5+ in stock
$4.76
You save $1.19
12
Yamaha Motors
Hose (L450)90446-07M48-00
Required: 3
HOSE (L110)
Supersedes: 90445-07M87-00
In stock
5+ in stock
$9.19
You save $2.30
In stock
5+ in stock
$16.80
You save $4.20
In stock
5+ in stock
$4.76
You save $1.19
$3.02
You save $0.53
$45.43
You save $8.02
17
Yamaha Motors
Plate Washer90201-08M93-00
Required: 1
WASHER, PLATE
$2.04
You save $0.51
18
Yamaha Motors
Distance Collar6H1-13117-01-00
Required: 1
COLLAR, DISTANCE
$12.54
You save $2.21
In stock
Only 2 remaining
$1.68
You save $0.42
In stock
Only 1 remaining
$12.07
You save $2.13
In stock
5+ in stock
$16.52
You save $4.13
In stock
Only 5 remaining
$7.59
You save $1.90
23
Yamaha Motors
Plate Washer90202-05088-00
Required: 1
WASHER, PLATE
In stock
Only 2 remaining
$6.16
You save $1.54
In stock
5+ in stock
$2.84
You save $0.71
25
Yamaha Motors
Link Joint6R5-41237-00-00
Required: 1
JOINT, LINK
Supersedes: 6E9-41237-00-00
In stock
5+ in stock
$8.52
You save $2.13
In stock
Only 2 remaining
$108.95
You save $26.80
In stock
Only 2 remaining
$9.12
You save $2.28
$5.70
You save $1.00
-50%
In stock
Only 1 remaining
$4.42
You save $4.42
In stock
Only 3 remaining
$2.16
You save $0.54
$2.21
You save $0.55
$4.55
You save $0.80
33
Yamaha Motors
Filler Tube6H1-21752-00-00
Required: 1
TUBE, FILLER 1
$18.84
You save $4.71
In stock
Only 4 remaining
$3.32
You save $0.83
In stock
Only 1 remaining
$7.48
You save $1.87
$4.76
You save $1.19
37
Yamaha Motors
Oil Tank Cap Assembly6H4-21770-01-00
Required: 1
OIL TANK CAP ASSY
Supersedes: 6H4-21770-00-00
In stock
5+ in stock
$24.56
You save $6.14
38
Yamaha Motors
Special Washer6J8-21758-00-00
Required: 1
WASHER, SPECIAL 2
$7.52
You save $1.33
39
Yamaha Motors
Special Washer6H1-21757-00-00
Required: 2
WASHER, SPECIAL 1
$5.06
You save $0.89
$6.25
You save $1.10
41
Yamaha Motors
Strainer Cover Gasket6J8-13414-00-00
Required: 1
GASKET, STRAINER COVER
In stock
Only 5 remaining
$2.84
You save $0.71
In stock
Only 4 remaining
$25.32
You save $6.33
In stock
Only 3 remaining
$10.20
You save $2.55
In stock
Only 1 remaining
$4.52
You save $1.13
In stock
Only 1 remaining
$33.00
You save $8.25
$2.12
You save $0.37
In stock
5+ in stock
$7.59
You save $1.90
48
Yamaha Motors
Bolt with Washer90119-06311-00
Required: 3
BOLT, WITH WASHER
Supersedes: 90119-06M88-00
In stock
Only 1 remaining
$1.59
You save $0.40
49
Yamaha Motors
Collar90387-06119-00
Required: 3
PIPE
Supersedes: 624-42542-00-00
In stock
5+ in stock
$3.84
You save $0.96
50
Yamaha Motors
DAMPER, IGNITION C6A0-82317-01-00
Required: 3
DAMPER, IGNITION COIL
Supersedes: 6A0-82317-00-00
In stock
Only 5 remaining
$5.68
You save $1.42
51
Yamaha Motors
OIL LEVEL GAUGE ASSY6H1-85720-17-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 6H1-85720-15-00
In stock
5+ in stock
$146.95
You save $37.40
52
Yamaha Motors
Wire Harness Cover6R5-82582-B0-00
Required: 1
COVER, WIRE HARNESS
$17.98
You save $3.17
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
