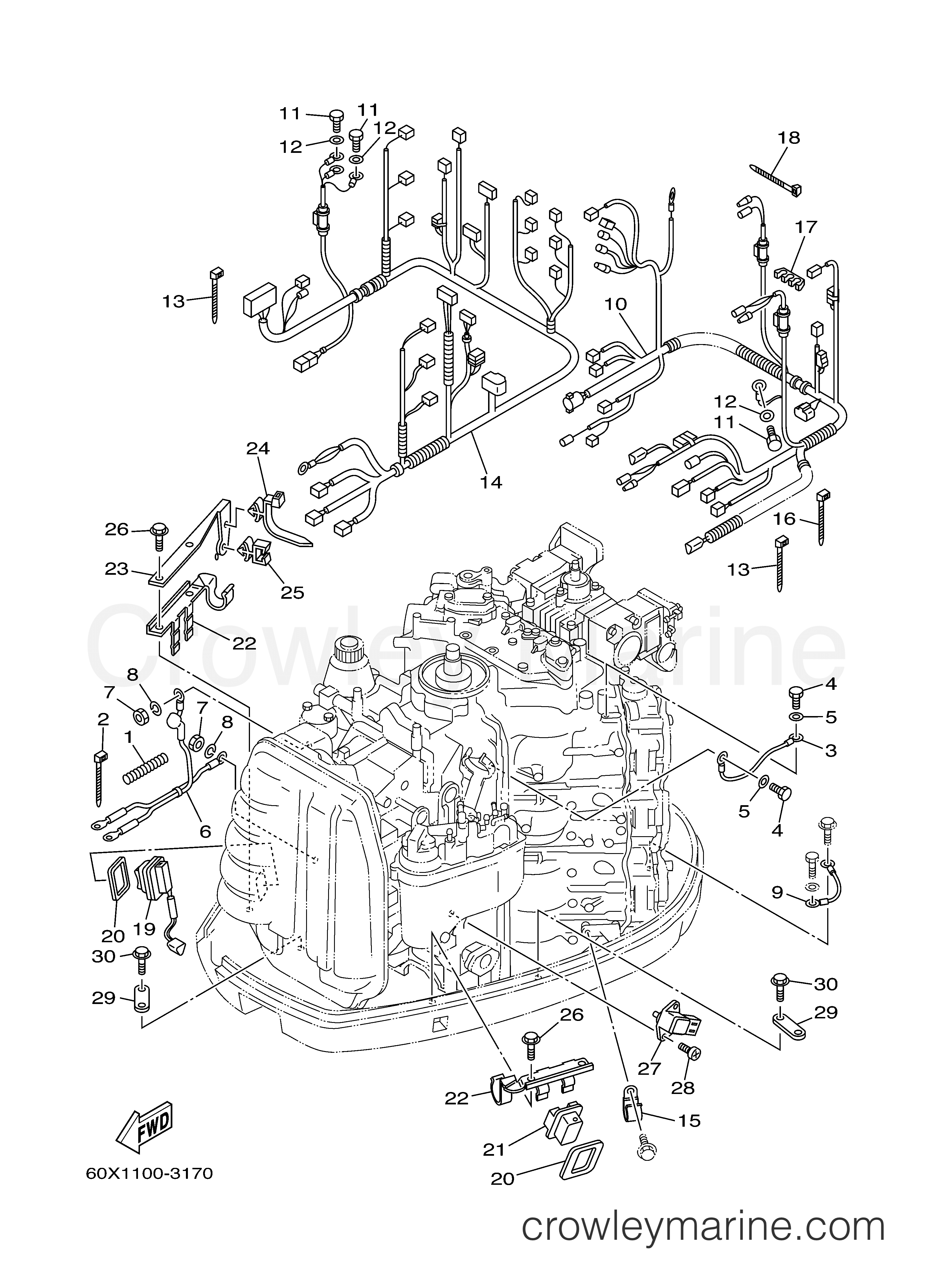

2003 Outboard 225hp - VZ225TLRB ELECTRICAL 2 diagram
$3.65
You save $0.65
2
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
3
Yamaha Motors
LEAD WIRE6H2-81949-12-00
Required: 1
WIRE, LEAD
Supersedes: 61A-81949-00-00
$15.38
You save $2.71
$2.54
You save $0.45
5
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
6
Yamaha Motors
BATTERY CABLE (RL45)60X-82105-01-00
Required: 1
BATTERY CABLE
Supersedes: 60X-82105-00-00
$399.50
You save $70.50
In stock
Only 1 remaining
$3.23
You save $0.57
8
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER, PLAIN
Supersedes: 92903-08100-00
$4.76
You save $0.84
$13.69
You save $2.42
10
Yamaha Motors
Wire Harness Assembly60V-82590-00-00
Required: 1
WIRE HARNESS ASSY
$650.85
You save $114.86
$2.54
You save $0.45
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 5 remaining
$1.57
You save $0.28
14
Yamaha Motors
Wire Harness Assembly60V-8259M-00-00
Required: 1
WIRE HARNESS ASSY 2
$674.18
You save $118.97
$5.31
You save $0.94
16
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
$2.72
You save $0.48
18
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
19
Yamaha Motors
Trim & Tilt Switch Assembly69J-82563-01-00
Required: 1
TRIM & TILT SWITCH ASSY
Supersedes: 69J-82563-00-00
In stock
5+ in stock
$54.32
You save $9.59
20
Yamaha Motors
Tank Cap Gasket69J-82587-01-00
Required: 2
GASKET
Supersedes: 69J-82587-00-00
In stock
Only 2 remaining
$4.72
You save $0.83
21
Yamaha Motors
Bottom Cover69J-42723-01-00
Required: 1
COVER, BOTTOM
Supersedes: 69J-42723-00-00
$29.03
You save $5.12
$22.14
You save $3.91
$11.73
You save $2.07
$4.67
You save $0.82
In stock
Only 2 remaining
$2.72
You save $0.48
In stock
Only 5 remaining
$1.54
You save $0.27
27
Yamaha Motors
Pressure Sensor67H-82380-00-00
Required: 1
SENSOR, PRESSURE
$264.61
You save $46.69
28
Yamaha Motors
Pan Head Screw98580-06020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98580-06520-00
In stock
Only 1 remaining
$8.07
You save $1.42
In stock
Only 1 remaining
$24.27
You save $4.28
30
Yamaha Motors
DEEP FLANGE BOLT95D95-06020-00
Required: 2
BOLT, FLANGE
Supersedes: 95895-06020-00
In stock
5+ in stock
$4.55
You save $0.80
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
