All diagrams for this model

2003 Outboard 90hp - F90TLRB CYLINDER CRANKCASE 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

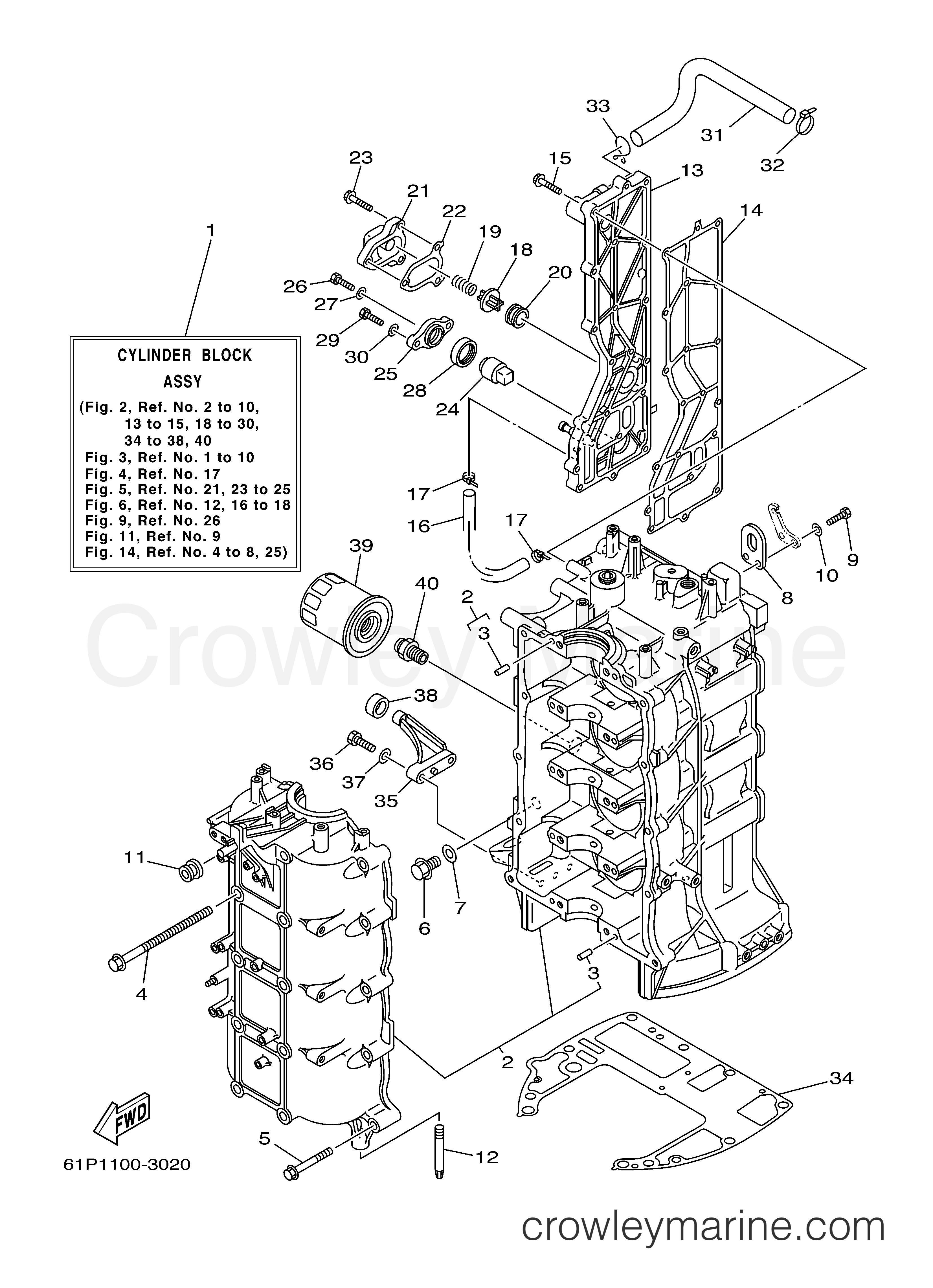

Yamaha Motors F90TLRB - CYLINDER CRANKCASE 1
Change View:
Cylinder Block Assembly
1
Yamaha Motors
Cylinder Block Assembly60C-W009B-07-9S
Required: 1
CYLINDER BLOCK ASSY
Supersedes: 60C-W009B-01-1S
Cross Ship
Leaves in 2-5 days
$5675.65
$4824.30
You save $851.35
More details
Crankcase Assembly
2
Yamaha Motors
Crankcase Assembly67F-15100-03-00
Required: 1
CRANKCASE ASSY
Supersedes: 67F-15100-03-1S
Cross Ship
Leaves in 2-5 days
$2725.00
$2316.25
You save $408.75
More details
Bolt with Washer
4
Yamaha Motors
Bolt with Washer90119-10M88-00
Required: 10
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$12.75
$10.84
You save $1.91
More details
Engine Hanger
8
Yamaha Motors
Engine Hanger62Y-11119-00-00
Required: 2
HANGER, ENGINE
Cross Ship
Leaves in 2-5 days
$13.25
$11.26
You save $1.99
More details
Guide
12
Yamaha Motors
Guide67F-15142-00-00
Required: 2
GUIDE 1
Cross Ship
Leaves in 2-5 days
$28.15
$23.93
You save $4.22
More details
Exhaust Outer Cover
13
Yamaha Motors
Exhaust Outer Cover67F-41113-31-9S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 67F-41113-01-1S
Cross Ship
Leaves in 2-5 days
$226.75
$192.74
You save $34.01
More details
Cover
21
Yamaha Motors
Cover67F-1246A-A0-9S
Required: 1
COVER 1
Supersedes: 67F-1246A-00-1S
Cross Ship
Leaves in 2-5 days
$25.50
$21.68
You save $3.82
More details
ANODE COVER ASSY
25
Yamaha Motors
ANODE COVER ASSY67F-11301-11-00
Required: 1
COVER, ANODE
Supersedes: 67F-11327-00-94
Cross Ship
Leaves in 2-5 days
$54.55
$46.37
You save $8.18
More details
BOLT
26
Yamaha Motors
BOLT97095-06020-00
Required: 1
BOLT
Supersedes: 97075-06020-00
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details
BOLT, HEXAGON DEEP R
29
Yamaha Motors
BOLT, HEXAGON DEEP R97D75-08025-00
Required: 2
BOLT
Supersedes: 97075-08025-00
Cross Ship
Leaves in 2-5 days
$5.95
$5.06
You save $0.89
More details
Hose
31
Yamaha Motors
Hose67F-1243A-00-00
Required: 1
HOSE 1
Cross Ship
Leaves in 2-5 days
$30.20
$25.67
You save $4.53
More details
Clip
33
Yamaha Motors
Clip90467-20M15-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$6.75
$5.74
You save $1.01
More details
Stopper
35
Yamaha Motors
Stopper67F-42761-01-00
Required: 2
STOPPER
Supersedes: 67F-42761-00-94
Cross Ship
Leaves in 2-5 days
$30.55
$25.97
You save $4.58
More details
BOLT
36
Yamaha Motors
BOLT97095-06025-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
