All diagrams for this model

2003 Outboard 4hp - F4MSHB CYLINDER CRANKCASE 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

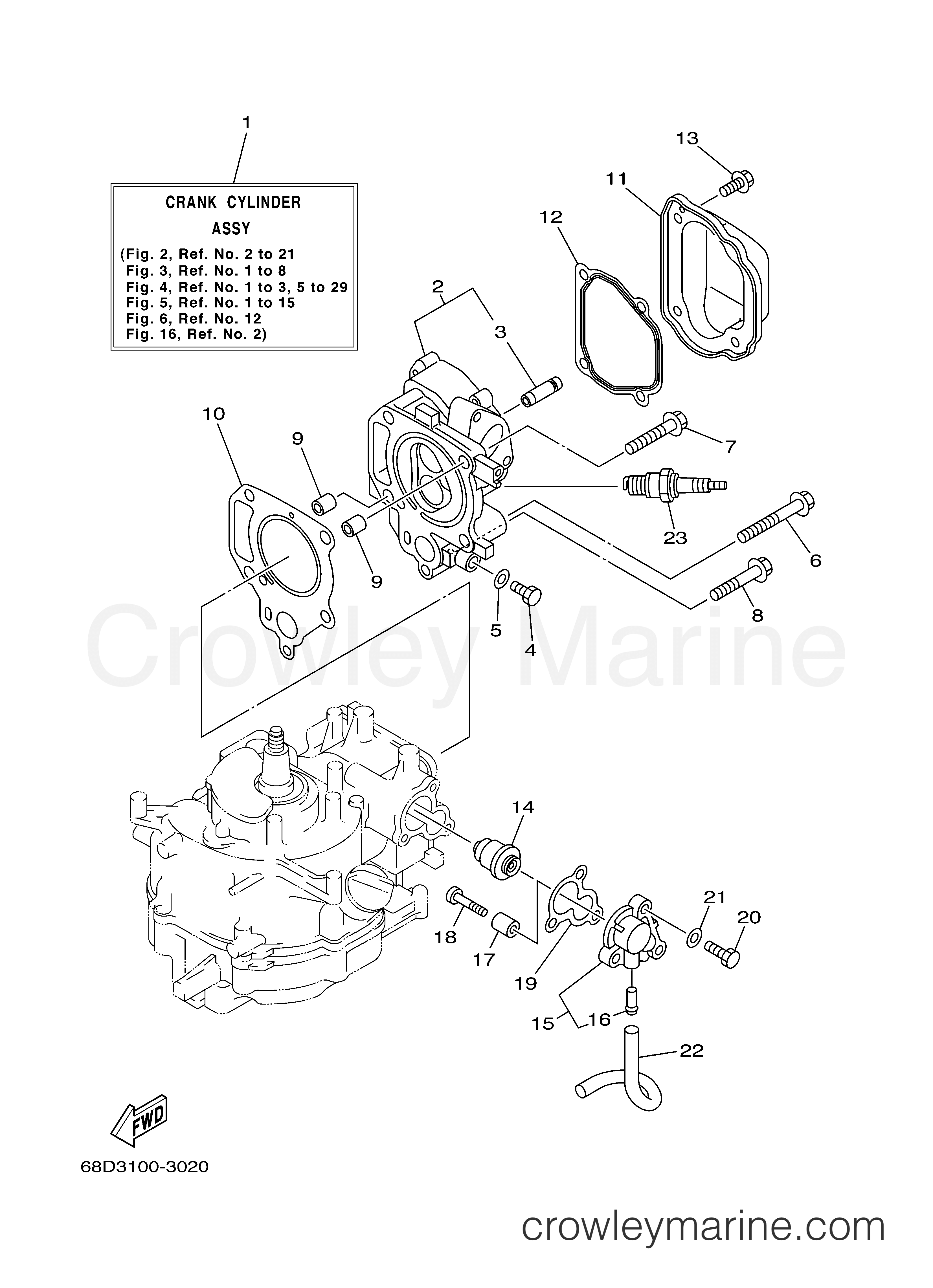

Yamaha Motors F4MSHB - CYLINDER CRANKCASE 1
Change View:
Crank Cylinder Assembly
1
Yamaha Motors
Crank Cylinder Assembly68D-WE090-11-1S
Required: 1
CRANK CYLINDER ASSY
Supersedes: 68D-WE090-10-4D
Cross Ship
Leaves in 2-5 days
$1301.05
$1105.89
You save $195.16
More details
Cylinder Head
2
Yamaha Motors
Cylinder Head68D-E1111-10-1S
Required: 1
HEAD, CYLINDER 1
Supersedes: 68D-E1111-10-94
Cross Ship
Leaves in 2-5 days
$292.60
$248.71
You save $43.89
More details
Valve Guide
3
Yamaha Motors
Valve Guide67D-11133-10-00
Required: 2
.GUIDE, VALVE 1
Cross Ship
Leaves in 2-5 days
$115.75
$98.39
You save $17.36
More details
BOLT, HEXAGON DEEP R
4
Yamaha Motors
BOLT, HEXAGON DEEP R97D95-08014-00
Required: 1
BOLT
Supersedes: 97095-08014-00
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details
Gasket
5
Yamaha Motors
Gasket90430-08143-00
Required: 1
.GASKET
Supersedes: 90430-08800-00
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
Flange Bolt
6
Yamaha Motors
Flange Bolt90105-08M36-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Flange Bolt
7
Yamaha Motors
Flange Bolt90105-08046-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
Cylinder Head Gasket
10
Yamaha Motors
Cylinder Head Gasket67D-11181-A0-00
Required: 1
.GASKET, CYLINDER HEAD 1
Cross Ship
Leaves in 2-5 days
$24.90
$21.17
You save $3.73
More details
Cylinder Head Cover
11
Yamaha Motors
Cylinder Head Cover67D-11191-00-00
Required: 1
COVER, CYLINDER HEAD 1
Cross Ship
Leaves in 2-5 days
$22.80
$19.38
You save $3.42
More details
Head Cover Gasket
12
Yamaha Motors
Head Cover Gasket68D-E1193-A0-00
Required: 1
.GASKET, HEAD COVER 1
Cross Ship
Leaves in 2-5 days
$19.90
$16.91
You save $2.98
More details
Flange Bolt
13
Yamaha Motors
Flange Bolt90105-06M14-00
Required: 4
BOLT FLANGE
Cross Ship
Leaves in 2-5 days
$1.49
$1.27
You save $0.22
More details
Thermostat Cover
15
Yamaha Motors
Thermostat Cover6EE-E2413-00-1S
Required: 1
COVER, THERMOSTAT
Supersedes: 68D-E2413-00-9M
Cross Ship
Leaves in 2-5 days
$52.75
$44.84
You save $7.91
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
