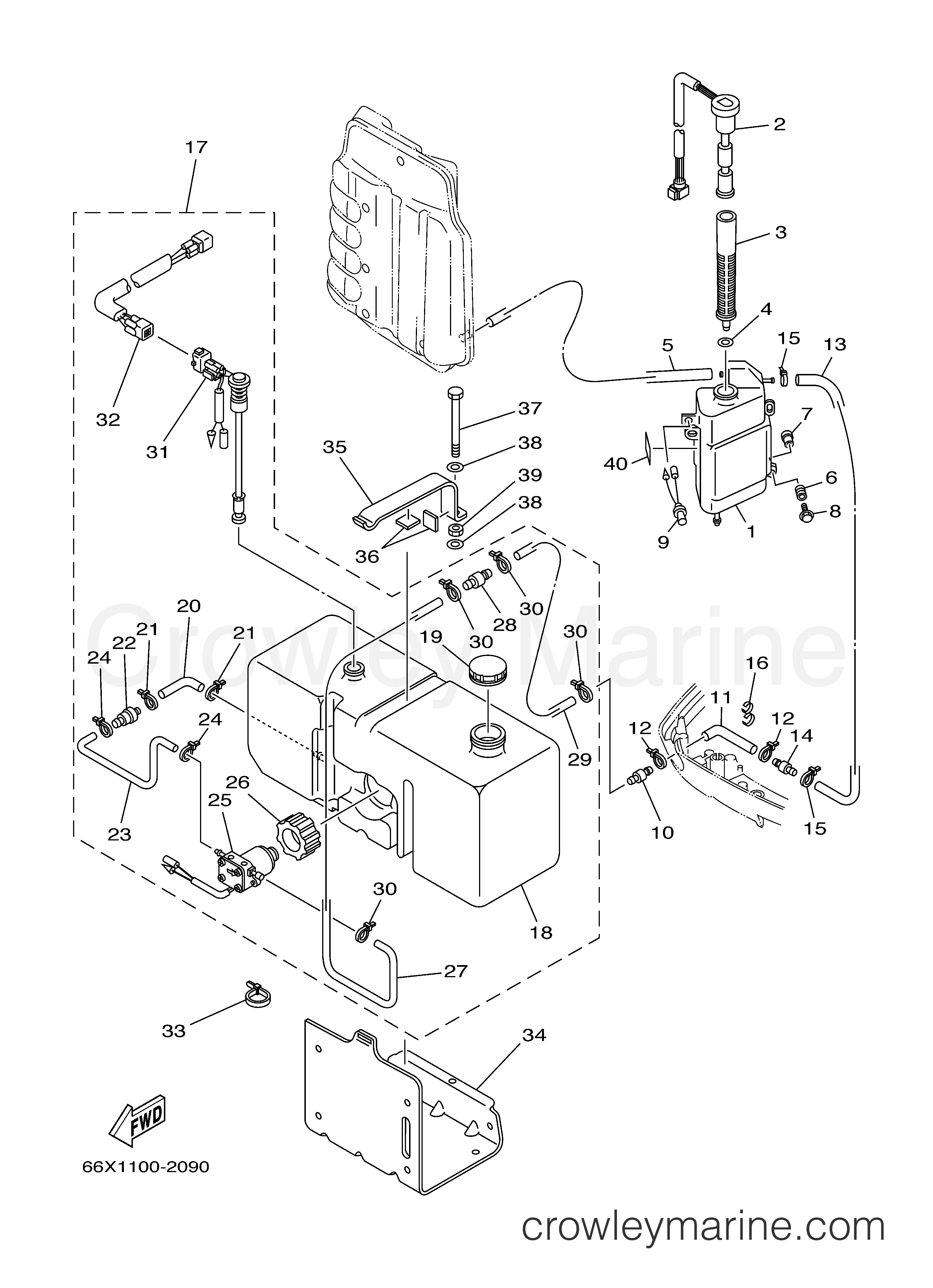

2002 Outboard 250hp - VX250TLRA OIL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VX250TLRA - OIL TANK
Change View:
OIL TANK ASSY
1
Yamaha Motors
OIL TANK ASSY61A-W2170-00-00
Required: 1
OIL TANK ASSY
Supersedes: 61A-21750-00-00
Cross Ship
Leaves in 2-5 days
$176.15
$149.73
You save $26.42
More details
Bolt with Washer
8
Yamaha Motors
Bolt with Washer90119-06294-00
Required: 3
BOLT, WITH WASHER
Supersedes: 90119-06M65-00
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
Switch Assembly
9
Yamaha Motors
Switch Assembly6R3-8259E-00-00
Required: 1
SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$83.25
$70.76
You save $12.49
More details
Clamp
16
Yamaha Motors
Clamp90464-13M34-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$1.50
$1.27
You save $0.23
More details
SUB OIL TANK ASSY.
17
Yamaha Motors
SUB OIL TANK ASSY.61A-21708-31-00
Required: 1
OIL TANK SUB-ASSY
Supersedes: 61A-21708-10-00
Cross Ship
Leaves in 2-5 days
$831.05
$706.39
You save $124.66
More details
Obsolete Yamaha Part
18
Yamaha Motors
Obsolete Yamaha Part6E5-21733-30-00
Required: 1
.SUB TANK, OIL (18L)
Supersedes: 6E5-21733-10-00
Cross Ship
Leaves in 2-5 days
$150.60
$128.01
You save $22.59
More details
Pipe
20
Yamaha Motors
Pipe6E5-24322-10-00
Required: 1
.PIPE 11
Cross Ship
Leaves in 2-5 days
$7.40
$6.29
You save $1.11
More details
Oil Pipe
23
Yamaha Motors
Oil Pipe6E5-24319-10-00
Required: 1
.PIPE, OIL
Cross Ship
Leaves in 2-5 days
$10.65
$9.05
You save $1.60
More details
Hose (L8000)
29
Yamaha Motors
Hose (L8000)90445-11M00-00
Required: 1
.HOSE (L6500)
Supersedes: 90445-11M26-00
Cross Ship
Leaves in 6-30 days
$92.85
$78.92
You save $13.93
More details
Lead Wire
32
Yamaha Motors
Lead Wire6R3-85721-80-00
Required: 1
.WIRE, LEAD (L=80M)
Cross Ship
Leaves in 2-5 days
$185.60
$157.76
You save $27.84
More details
Oil Sub Tank Holder
34
Yamaha Motors
Oil Sub Tank Holder6E5-21734-01-33
Required: 1
HOLDER, OIL SUB TANK
Cross Ship
Leaves in 2-5 days
$198.10
$168.38
You save $29.72
More details
Damper
36
Yamaha Motors
Damper6E5-21746-00-00
Required: 2
DAMPER
Cross Ship
Leaves in 2-5 days
$6.15
$5.23
You save $0.92
More details
Bolt
37
Yamaha Motors
Bolt97080-06100-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$10.40
$8.84
You save $1.56
More details
Caution Mark
40
Yamaha Motors
Caution Mark6E5-85711-40-00
Required: 1
MARK, CAUTION
Cross Ship
Leaves in 2-5 days
$6.95
$5.91
You save $1.04
More details
