All diagrams for this model

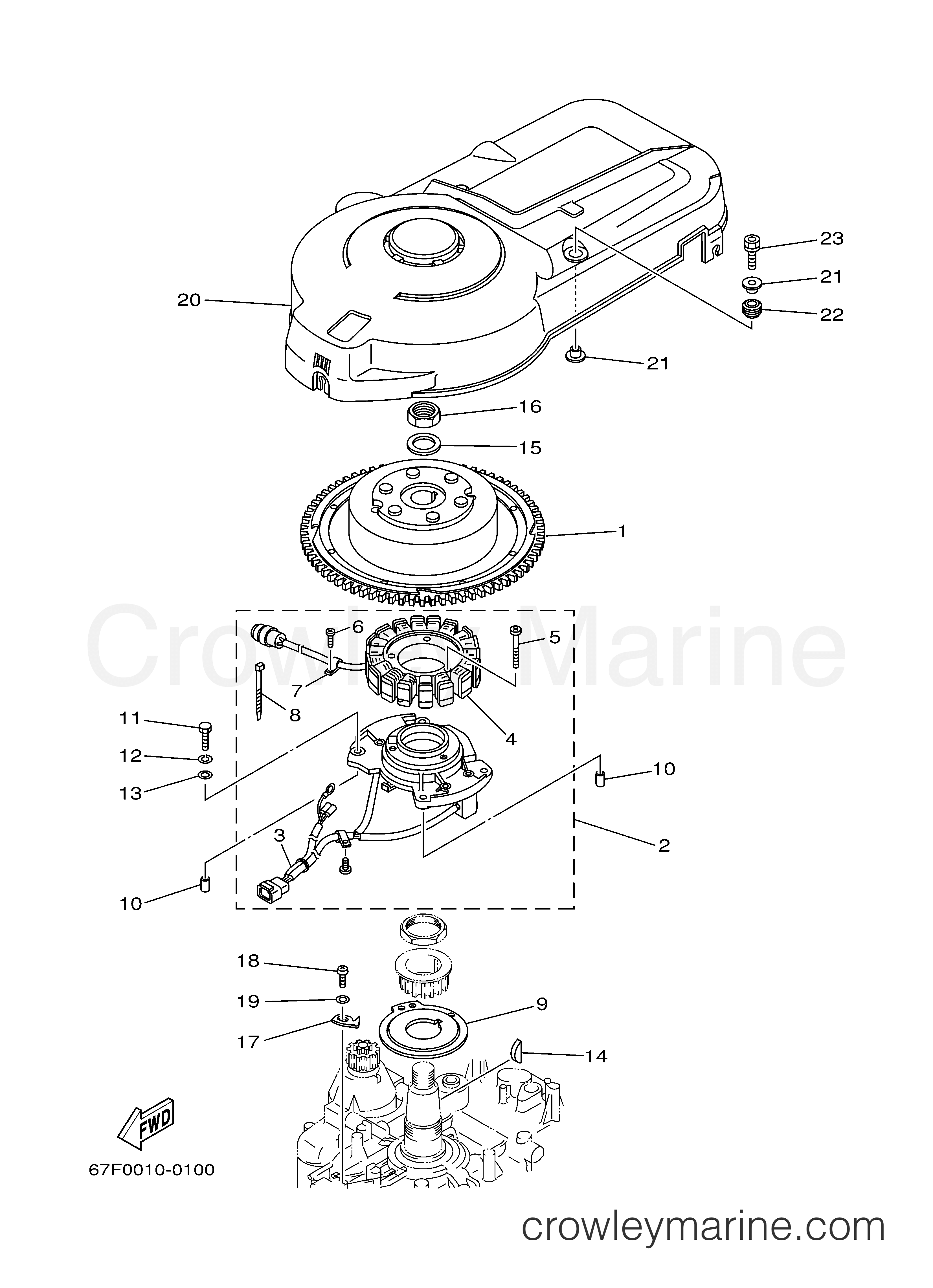

2001 Outboard 80hp - F80TLRZ GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F80TLRZ - GENERATOR
Change View:
ROTOR ASSY
1
Yamaha Motors
ROTOR ASSY67F-85550-01-00
Required: 1
ROTOR ASSY
Supersedes: 67F-85550-00-00
Cross Ship
Leaves in 2-5 days
$1204.20
$1023.57
You save $180.63
More details
Base Assembly
2
Yamaha Motors
Base Assembly67F-85560-01-00
Required: 1
BASE ASSY
Supersedes: 67F-85560-00-00
Cross Ship
Leaves in 2-5 days
$1204.20
$1023.57
You save $180.63
More details
Pulser Coil
3
Yamaha Motors
Pulser Coil67F-85580-00-00
Required: 1
.COIL, PULSER
Cross Ship
Leaves in 2-5 days
$436.15
$370.73
You save $65.42
More details
Stator Assembly
4
Yamaha Motors
Stator Assembly67F-85510-01-00
Required: 1
.STATOR ASSY
Supersedes: 67F-85510-00-00
Cross Ship
Leaves in 2-5 days
$541.70
$460.45
You save $81.25
More details
Pan Head Screw
6
Yamaha Motors
Pan Head Screw98507-04012-00
Required: 1
.SCREW, PAN HEAD WITH WASHER
Supersedes: 97607-04112-00
Cross Ship
Leaves in 2-5 days
$0.15
$0.13
You save $0.02
More details
Clamp
7
Yamaha Motors
Clamp445-81328-20-00
Required: 1
.CLAMP
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
Clamp
8
Yamaha Motors
Clamp66T-81328-00-00
Required: 1
.CLAMP
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Plate Washer
15
Yamaha Motors
Plate Washer90201-25M02-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$7.70
$6.54
You save $1.16
More details
Nut
16
Yamaha Motors
Nut90170-24M22-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$14.99
$12.74
You save $2.25
More details
Timing Plate
17
Yamaha Motors
Timing Plate6D8-81332-00-00
Required: 1
PLATE, TIMING
Supersedes: 67F-81332-00-00
Cross Ship
Leaves in 2-5 days
$5.50
$4.68
You save $0.83
More details
COVER, FLYWHEEL
20
Yamaha Motors
COVER, FLYWHEEL67F-81337-02-00
Required: 1
COVER, FLYWHEEL
Supersedes: 67F-81337-01-00
Cross Ship
Leaves in 2-5 days
$74.70
$63.49
You save $11.21
More details
Grommet
22
Yamaha Motors
Grommet90480-15M31-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$7.70
$6.54
You save $1.16
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
