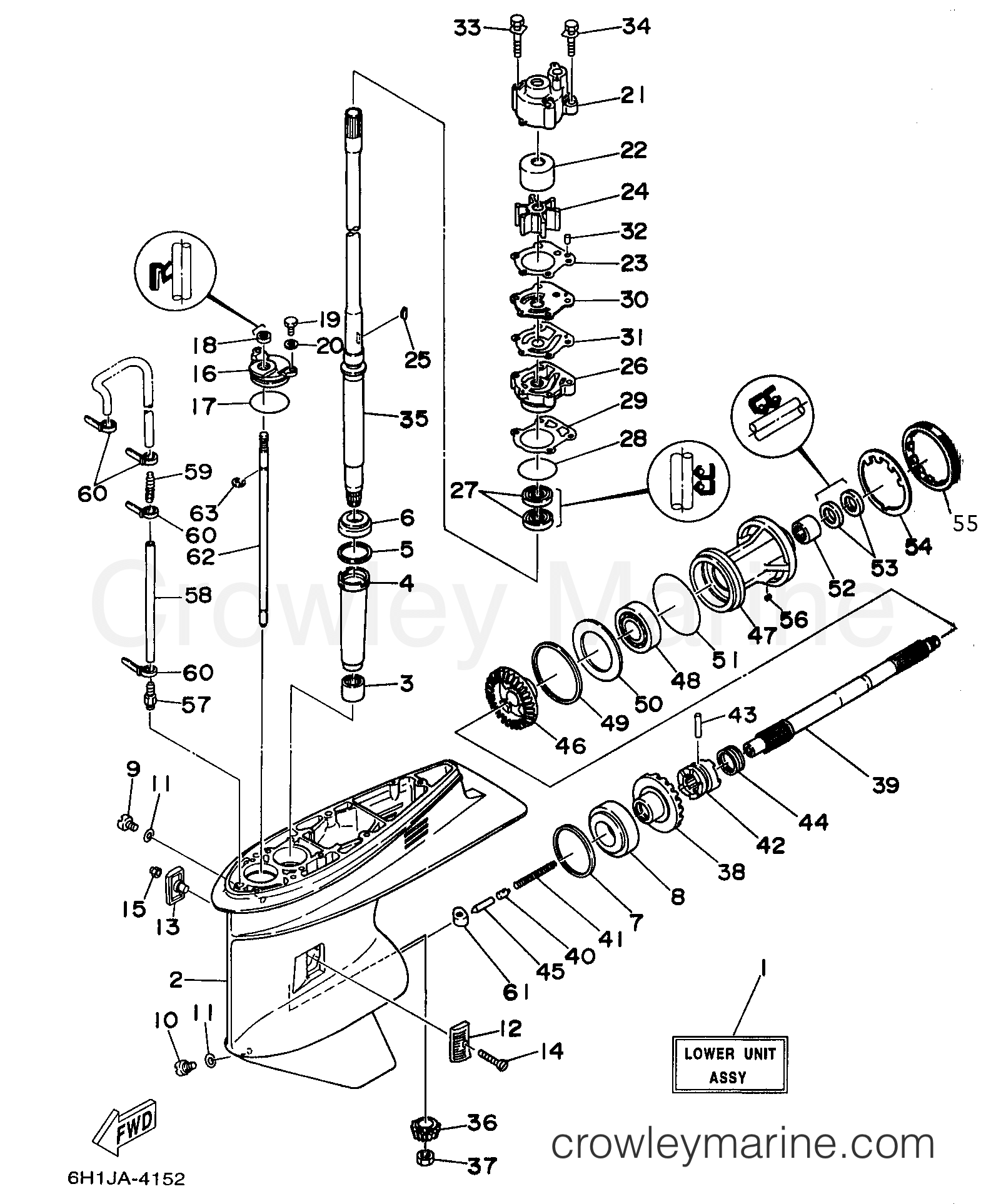

1999 Outboard 90hp - C90TLRX LOWER CASING DRIVE 1 diagram
1
Yamaha Motors
Lower Unit Assembly6H1-45300-A5-8D
Required: 1
LOWER UNIT ASSY
Supersedes: 6H1-45300-A3-4D
$1934.09
You save $341.31
2
Yamaha Motors
Lower Casing Set6H1-W4530-12-8D
Required: 1
CASING, LOWER
Supersedes: 6H1-45301-12-4D
$964.62
You save $170.23
$63.74
You save $11.25
4
Yamaha Motors
Drive Shaft Sleeve688-45536-01-00
Required: 1
SLEEVE, DRIVE SHAFT
$29.88
You save $7.47
5
Yamaha Motors
Shim (T:0.15MM)688-45587-20-00
Required: 1
SHIM (T:0.15MM)
Supersedes: 688-45587-01-15
$3.02
You save $0.53
-50%
5
Yamaha Motors
Shim (T:0.10MM)688-45587-01-00
Required: 1
SHIM (T:0.10MM)
Supersedes: 688-45587-01-10
In stock
Only 1 remaining
$1.77
You save $1.77
5
Yamaha Motors
Shim (T:0.50MM)688-45587-60-00
Required: 1
SHIM (T:0.50MM)
Supersedes: 688-45587-01-50
In stock
Only 1 remaining
$3.02
You save $0.53
5
Yamaha Motors
SHIM (T:0.30MM)688-45587-01-30
Required: 1
SHIM (T:0.30MM)
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.12MM)688-45587-10-00
Required: 1
SHIM (T:0.12MM)
Supersedes: 688-45587-01-12
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.18MM)688-45587-30-00
Required: 1
SHIM (T:0.18MM)
Supersedes: 688-45587-01-18
In stock
Only 1 remaining
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.40MM)688-45587-50-00
Required: 1
SHIM (T:0.40MM)
Supersedes: 688-45587-01-40
$3.02
You save $0.53
In stock
Only 2 remaining
$35.99
You save $9.00
7
Yamaha Motors
Shim (T:0.30MM)688-45567-40-00
Required: 1
SHIM (T:0.30MM)
Supersedes: 688-45567-01-30
$5.31
You save $0.94
7
Yamaha Motors
Shim (T:0.50MM)688-45567-60-00
Required: 1
SHIM (T:0.50MM)
Supersedes: 688-45567-01-50
In stock
Only 1 remaining
$5.31
You save $0.94
7
Yamaha Motors
Shim (T:0.12MM)688-45567-01-12
Required: 1
SHIM (T:0.12MM)
$5.31
You save $0.94
7
Yamaha Motors
Shim (T:0.10MM)688-45567-01-00
Required: 1
SHIM (T:0.10MM)
Supersedes: 688-45567-01-10
In stock
Only 1 remaining
$5.31
You save $0.94
7
Yamaha Motors
Shim (T:0.15MM)688-45567-20-00
Required: 1
SHIM (T:0.15MM)
Supersedes: 688-45567-01-15
$5.31
You save $0.94
7
Yamaha Motors
Shim (T:0.18MM)688-45567-30-00
Required: 1
SHIM (T:0.18MM)
Supersedes: 688-45567-01-18
$5.31
You save $0.94
7
Yamaha Motors
Shim (T:0.40MM)688-45567-50-00
Required: 1
SHIM (T:0.40MM)
Supersedes: 688-45567-01-40
$5.31
You save $0.94
$91.95
You save $23.04
9
Yamaha Motors
Straight Screw Plug90340-08002-00
Required: 1
PLUG, STRAIGHT SCREW
Supersedes: 90340-08M04-00
In stock
5+ in stock
$10.20
You save $2.55
10
Yamaha Motors
Drain Plug688-45341-10-00
Required: 1
PLUG, DRAIN
Supersedes: 688-45341-00-00
In stock
5+ in stock
$10.16
You save $2.54
11
Yamaha Motors
Tank Cap Gasket90430-08003-00
Required: 2
.GASKET
Supersedes: 90430-08020-00
In stock
5+ in stock
$1.24
You save $0.31
12
Yamaha Motors
Water Inlet Cover6H1-45214-00-00
Required: 1
COVER, WATER INLET 1
In stock
5+ in stock
$11.36
You save $2.84
13
Yamaha Motors
Water Inlet Cover 26H1-45215-00-00
Required: 1
COVER, WATER INLET 2
In stock
5+ in stock
$11.36
You save $2.84
14
Yamaha Motors
Countersunk Screw90151-05M00-00
Required: 1
SCREW, COUNTERSUNK
In stock
5+ in stock
$2.68
You save $0.67
15
Yamaha Motors
Self-Locking Nut90185-05904-00
Required: 1
NUT, NYLON
Supersedes: 90185-05002-00
In stock
5+ in stock
$1.80
You save $0.45
$14.20
You save $3.55
In stock
5+ in stock
$6.79
You save $1.70
In stock
5+ in stock
$6.72
You save $1.68
$2.21
You save $0.55
20
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.28
You save $0.57
21
Yamaha Motors
Water Pump Housing688-44311-01-00
Required: 1
HOUSING, WATER PUMP
In stock
5+ in stock
$26.56
You save $6.64
22
Yamaha Motors
Cartridge Insert688-44322-00-00
Required: 1
INSERT, CARTRIDGE
In stock
5+ in stock
$9.84
You save $2.46
23
Yamaha Motors
Water Pump Gasket688-44315-A0-00
Required: 1
.GASKET, WATER PUMP
In stock
5+ in stock
$4.40
You save $1.10
In stock
5+ in stock
$27.64
You save $6.91
In stock
5+ in stock
$7.16
You save $1.79
26
Yamaha Motors
Water Pump Housing6D8-WS443-00-00
Required: 1
HOUSING, WATER PUMP
Supersedes: 688-44341-01-94
In stock
5+ in stock
$54.12
You save $13.53
In stock
5+ in stock
$5.84
You save $1.46
In stock
5+ in stock
$6.79
You save $1.70
29
Yamaha Motors
Water Pump Gasket688-44316-A0-00
Required: 1
.GASKET, WATER PUMP
In stock
5+ in stock
$4.40
You save $1.10
30
Yamaha Motors
Cartridge Outer Plate688-44323-00-00
Required: 1
OUTER PLATE, CARTRIDGE
In stock
5+ in stock
$9.80
You save $2.45
31
Yamaha Motors
Cartridge Gasket688-44324-A0-00
Required: 1
.GASKET, CARTRIDGE
In stock
5+ in stock
$4.40
You save $1.10
In stock
Only 1 remaining
$4.16
You save $1.04
33
Yamaha Motors
Bolt With Washer90119-08M16-00
Required: 2
.BOLT, WITH WASHER
In stock
Only 2 remaining
$8.39
You save $2.10
34
Yamaha Motors
Bolt With Washer90119-08M13-00
Required: 2
.BOLT, WITH WASHER
In stock
5+ in stock
$4.48
You save $1.12
35
Yamaha Motors
Complete Drive Shaft6H1-45501-11-00
Required: 1
DRIVE SHAFT COMP.
$590.95
You save $104.15
$142.25
You save $25.10
In stock
Only 4 remaining
$5.99
You save $1.50
$215.52
You save $38.03
39
Yamaha Motors
Propeller Shaft688-45611-00-00
Required: 1
SHAFT, PROPELLER
Supersedes: 688-45611-01-00
$283.95
You save $71.10
In stock
Only 3 remaining
$8.32
You save $2.08
41
Yamaha Motors
Compression Spring90501-16233-00
Required: 1
SPRING, COMPRESSION
$6.16
You save $1.54
$140.95
You save $25.15
43
Yamaha Motors
Straight Pin90250-07M02-00
Required: 1
PIN, STRAIGHT
In stock
Only 1 remaining
$6.32
You save $1.58
44
Yamaha Motors
Cross Pin Ring688-45633-00-00
Required: 1
RING, CROSS PIN
In stock
Only 5 remaining
$2.84
You save $0.71
45
Yamaha Motors
Shift Plunger688-45635-00-00
Required: 1
PLUNGER, SHIFT
In stock
Only 4 remaining
$23.20
You save $5.80
$238.21
You save $42.04
47
Yamaha Motors
Bearing Housing688-45331-00-CA
Required: 1
HOUSING, BEARING
Supersedes: 688-45331-00-94
$89.95
You save $23.10
In stock
5+ in stock
$30.39
You save $7.60
49
Yamaha Motors
Shim (T:0.15MM)688-45577-20-00
Required: 1
SHIM (T:0.15MM)
Supersedes: 688-45577-01-15
$5.00
You save $1.25
49
Yamaha Motors
Shim (T:0.10MM)688-45577-01-00
Required: 1
SHIM (T:0.10MM)
Supersedes: 688-45577-01-10
$5.31
You save $0.94
49
Yamaha Motors
Shim (T:0.50MM)688-45577-60-00
Required: 1
SHIM (T:0.50MM)
Supersedes: 688-45577-01-50
In stock
Only 1 remaining
$5.31
You save $0.94
49
Yamaha Motors
Shim (T:0.30MM)688-45577-40-00
Required: 1
SHIM (T:0.30MM)
Supersedes: 688-45577-01-30
$5.31
You save $0.94
49
Yamaha Motors
Shim (T:0.12MM)688-45577-10-00
Required: 1
SHIM (T:0.12MM)
Supersedes: 688-45577-01-12
$5.31
You save $0.94
49
Yamaha Motors
Shim (T:0.18MM)688-45577-30-00
Required: 1
SHIM (T:0.18MM)
Supersedes: 688-45577-01-18
In stock
Only 1 remaining
$5.31
You save $0.94
49
Yamaha Motors
Shim (T:0.40MM)688-45577-50-00
Required: 1
SHIM (T:0.40MM)
Supersedes: 688-45577-01-40
$5.31
You save $0.94
50
Yamaha Motors
Thrust Washer688-45576-00-00
Required: 1
WASHER, THRUST
In stock
Only 1 remaining
$14.53
You save $2.56
In stock
Only 4 remaining
$10.80
You save $2.70
In stock
5+ in stock
$20.79
You save $5.20
In stock
5+ in stock
$5.84
You save $1.46
In stock
Only 5 remaining
$12.16
You save $3.04
55
Yamaha Motors
Nut688-45384-02-00
Required: 1
NUT
Supersedes: 688-45384-00-00
In stock
Only 3 remaining
$27.68
You save $6.92
56
Yamaha Motors
Straight Key90282-04010-00
Required: 1
KEY, STRAIGHT
In stock
Only 1 remaining
$11.36
You save $2.84
In stock
5+ in stock
$8.64
You save $2.16
58
Yamaha Motors
Hose (L250)90445-07MF2-00
Required: 1
HOSE (L120)
Supersedes: 90445-07ME9-00
In stock
5+ in stock
$3.32
You save $0.83
In stock
5+ in stock
$9.12
You save $2.28
60
Yamaha Motors
Clamp90465-10098-00
Required: 4
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
In stock
5+ in stock
$26.56
You save $6.64
In stock
Only 1 remaining
$41.82
You save $7.38
63
Yamaha Motors
Circle Clip99001-08600-00
Required: 1
CIRCLIP
Supersedes: 93430-08006-00
In stock
Only 4 remaining
$7.59
You save $1.90
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
