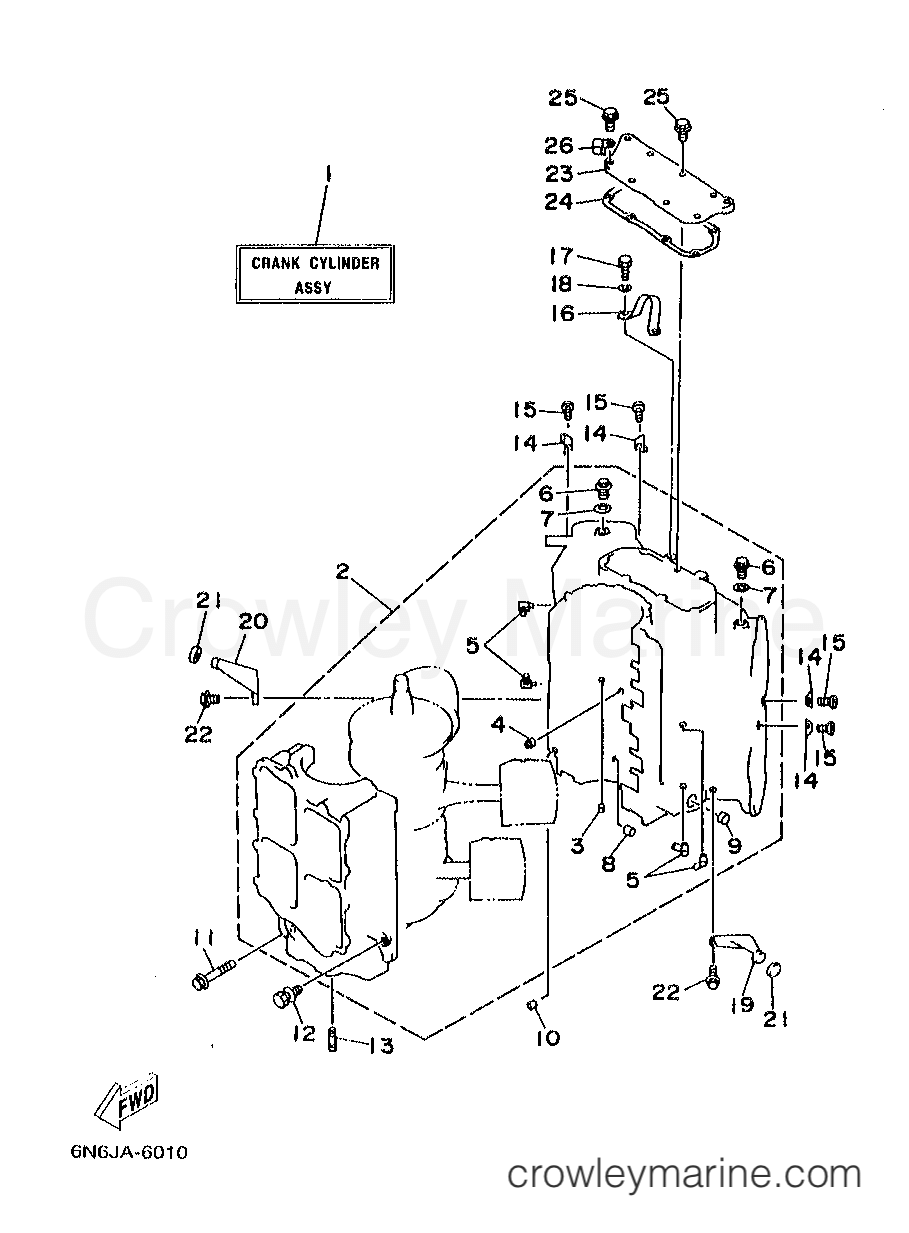

1999 Outboard 115hp - B115TLRX CYLINDER CRANKCASE diagram
1
Yamaha Motors
Crank Cylinder Assembly6N6-W0090-18-1S
Required: 1
CRANK CYLINDER ASSEMBLY
Supersedes: 6N6-W0090-15-4D
$8895.38
You save $1569.77
2
Yamaha Motors
Crankcase Assembly6N6-15100-10-00
Required: 1
CRANKCASE ASSEMBLY
Supersedes: 6N6-15100-01-94
$2112.72
You save $372.83
3
Yamaha Motors
Check Valve624-11379-00-00
Required: 1
.VALVE, CHECK
$10.84
You save $1.91
4
Yamaha Motors
Bearing Lock663-11518-01-00
Required: 1
.LOCK, BEARING
$9.27
You save $1.63
5
Yamaha Motors
Hose Nipple6E5-11372-01-00
Required: 4
.NIPPLE, HOSE
Supersedes: 6E5-11372-00-00
$8.67
You save $1.53
6
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 2
.PLUG, STRAIGHT SCREW
Supersedes: 90340-14M00-00
In stock
5+ in stock
$11.36
You save $2.84
In stock
Only 2 remaining
$2.40
You save $0.60
8
Yamaha Motors
Bimetal Formed Bushing90384-06002-00
Required: 1
.BUSH, BIMETAL FORMED
Supersedes: 90384-06M07-00
$3.10
You save $0.55
9
Yamaha Motors
Bimetal Formed Bushing90384-14011-00
Required: 1
.BUSH, BIMETAL FORMED
Supersedes: 90384-14M09-00
$5.74
You save $1.01
-50%
In stock
Only 1 remaining
$3.38
You save $3.38
-50%
In stock
Only 2 remaining
$3.25
You save $3.25
12
Yamaha Motors
Washer with bolt90119-08M23-00
Required: 8
BOLT, W/WASHER
$4.14
You save $-1.00
13
Yamaha Motors
Stud Bolt90116-08M14-00
Required: 2
BOLT, STUD
Supersedes: 90116-08M45-00
$5.82
You save $1.03
In stock
5+ in stock
$4.40
You save $1.10
15
Yamaha Motors
Flat Head Screw98780-04014-00
Required: 4
SCREW, FLAT HEAD
Supersedes: 98780-04015-00
In stock
Only 4 remaining
$2.84
You save $0.71
16
Yamaha Motors
Engine Hanger6E5-11119-01-00
Required: 1
HANGER, ENGINE
Supersedes: 6E5-11119-00-00
$14.19
You save $2.51
$1.44
You save $0.36
18
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER, PLAIN
Supersedes: 92903-08100-00
$4.48
You save $1.12
19
Yamaha Motors
Stopper6E5-42761-00-1S
Required: 1
STOPPER
Supersedes: 6E5-42761-00-94
$14.41
You save $2.54
$9.82
You save $1.73
21
Yamaha Motors
Upper Mount Rubber Damper663-44533-00-00
Required: 2
DAMPER, UPPER MOUNT RUBBER
In stock
Only 2 remaining
$13.56
You save $2.39
22
Yamaha Motors
Bolt with Washer97513-06520-00
Required: 4
BOLT, WITH WASHER
In stock
Only 2 remaining
$1.66
You save $0.29
23
Yamaha Motors
Cover6K7-11371-01-1S
Required: 1
COVER
Supersedes: 6K7-11371-01-9M
$28.65
You save $5.05
In stock
Only 4 remaining
$10.40
You save $2.60
25
Yamaha Motors
Bolt with Washer97513-06520-00
Required: 7
BOLT, WITH WASHER
In stock
Only 2 remaining
$1.66
You save $0.29
$4.80
You save $0.85
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
