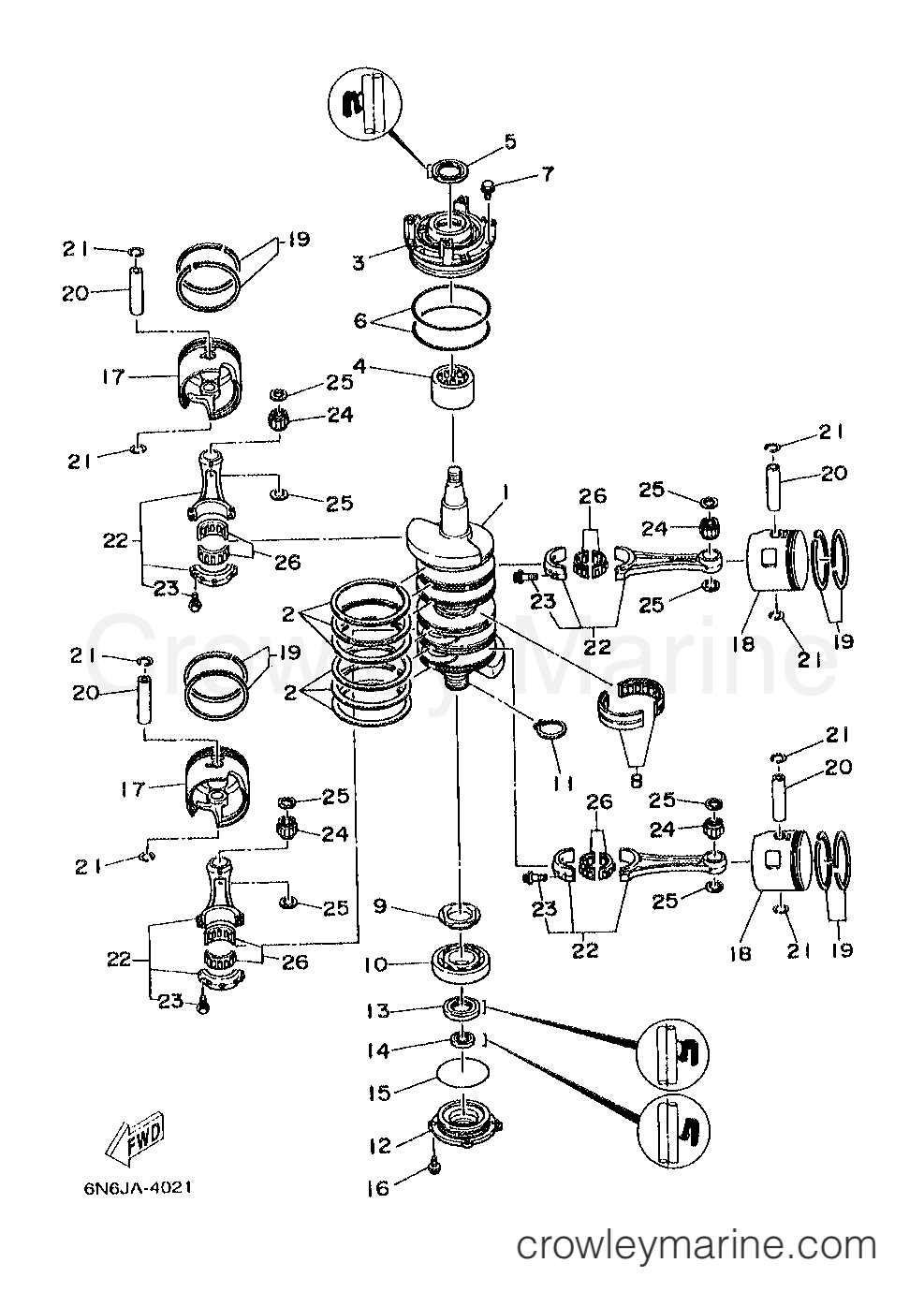

1999 Outboard 115hp - B115TLRX CRANKSHAFT PISTON diagram
1
Yamaha Motors
Crankshaft6N7-11411-01-00
Required: 1
CRANKSHAFT
Supersedes: 6N7-11411-00-00
$1102.02
You save $194.48
$16.76
You save $4.19
3
Yamaha Motors
Bearing Housing6R3-15163-00-1S
Required: 1
HOUSING, BEARING 1
Supersedes: 6R3-15163-00-94
$129.95
You save $23.40
$151.95
You save $27.04
5
Yamaha Motors
Oil Seal93102-40M38-00
Required: 1
.OIL SEAL
Supersedes: 93102-40M14-00
In stock
Only 1 remaining
$15.44
You save $3.86
6
Yamaha Motors
O-Ring93211-04384-00
Required: 2
.O-RING
Supersedes: 93211-04M36-00
In stock
5+ in stock
$5.40
You save $1.35
7
Yamaha Motors
Bolt with Washer97513-06520-00
Required: 3
BOLT, WITH WASHER
In stock
Only 2 remaining
$1.66
You save $0.29
$197.19
You save $34.80
$132.52
You save $23.38
In stock
Only 1 remaining
$50.14
You save $8.85
11
Yamaha Motors
Circle Clip99009-40400-00
Required: 1
CIRCLIP
Supersedes: 93410-40M03-00
$3.57
You save $0.63
12
Yamaha Motors
Oil Seal Housing6G5-15359-00-94
Required: 1
HOUSING, OIL SEAL
$142.12
You save $25.08
In stock
Only 1 remaining
$10.76
You save $2.69
In stock
Only 1 remaining
$6.48
You save $1.62
In stock
Only 2 remaining
$9.24
You save $2.31
16
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 4
BOLT, WITH WASHER
Supersedes: 97595-06520-00
In stock
Only 2 remaining
$2.44
You save $0.61
-50%
In stock
Only 2 remaining
$60.30
You save $60.30
17
Yamaha Motors
Piston (0.50MM O/S)6R5-11636-11-00
Required: 2
PISTON (0.50MM O/S)
$108.25
You save $19.10
$102.95
You save $17.65
18
Yamaha Motors
Piston6R5-11646-11-00
Required: 2
PISTON 2 (0.50MM O/S)
$108.25
You save $19.10
19
Yamaha Motors
Piston Ring Set (Standard)64D-11603-02-00
Required: 4
PISTON RING SET (STD)
Supersedes: 64D-11603-01-00
In stock
Only 1 remaining
$57.92
You save $14.48
19
Yamaha Motors
Piston Ring Set (0.50Mm O/S)64D-11605-02-00
Required: 4
PISTON RING SET (0.50MM O/S)
Supersedes: 64D-11605-01-00
In stock
Only 1 remaining
$52.57
You save $9.28
In stock
Only 2 remaining
$11.69
You save $2.06
21
Yamaha Motors
Piston Pin Clip6R5-11634-10-00
Required: 8
CLIP, PISTON PIN
In stock
5+ in stock
$4.92
You save $1.23
22
Yamaha Motors
Connecting Rod Assembly6R5-11650-10-00
Required: 4
CONNECTING ROD ASSY
$230.95
You save $40.35
23
Yamaha Motors
Bolt90109-08022-00
Required: 2
.BOLT
Supersedes: 90109-08M71-00
$6.24
You save $1.56
24
Yamaha Motors
Bearing93310-32337-00
Required: 4
BEARING
Supersedes: 93310-323V6-00
$40.79
You save $7.20
25
Yamaha Motors
Plate Washer90201-23M01-00
Required: 8
WASHER, PLATE
In stock
Only 3 remaining
$4.80
You save $0.85
$97.74
You save $17.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
