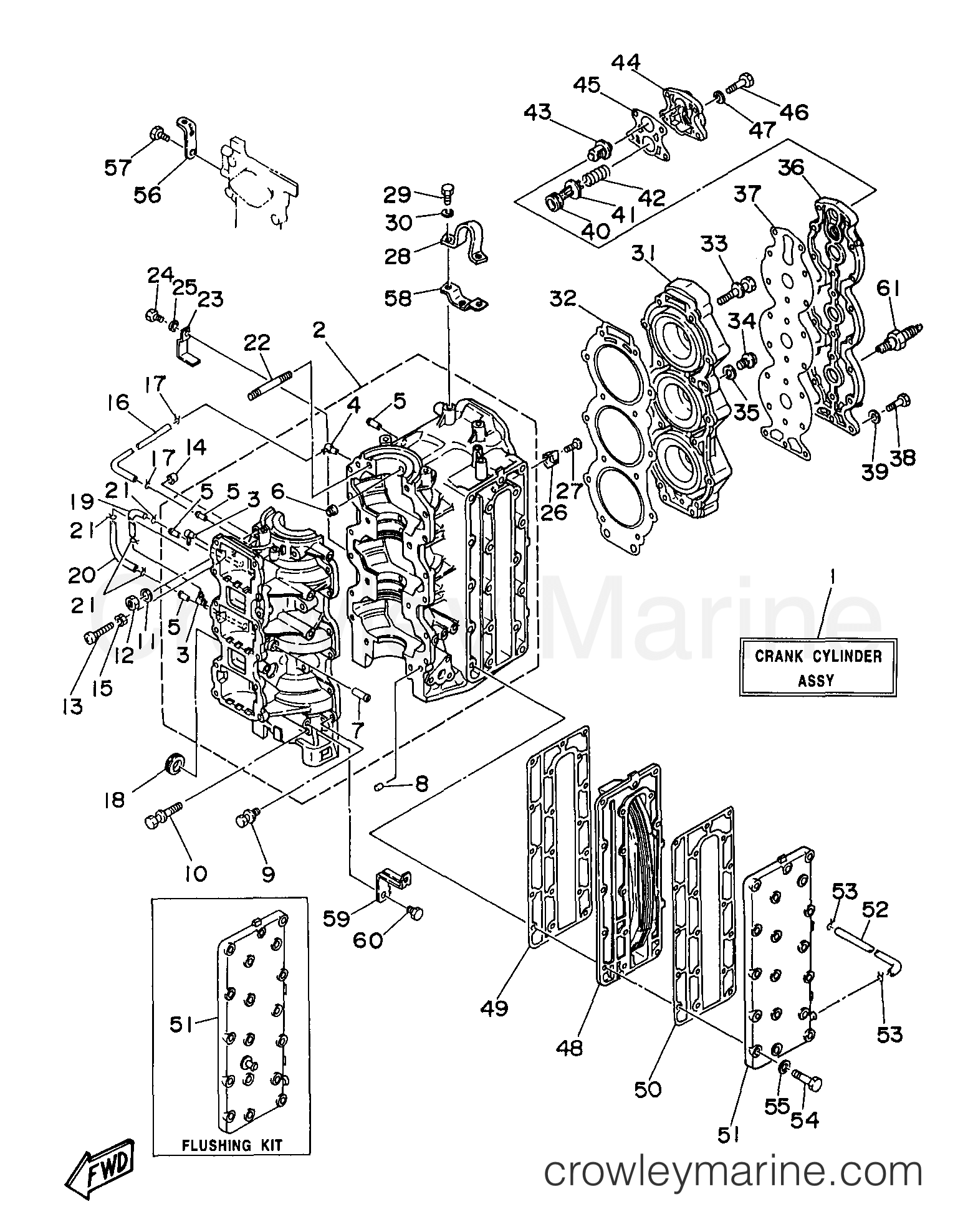

1999 Outboard 90hp - 90TLRX CYLINDER CRANKCASE diagram
1
Yamaha Motors
Crank Cylinder Assembly (O/I)6H1-W0090-45-1S
Required: 1
CRANK CYLINDER ASSY
Supersedes: 6H1-W0090-43-4D
In stock
Only 1 remaining
$2800.00
You save $698.05
2
Yamaha Motors
CRANKCASE ASSEMBLY6H1-15100-05-00
Required: 1
CRANKCASE ASSY (N.O/I)
Supersedes: 6H1-15100-02-94
$1883.81
You save $332.44
3
Yamaha Motors
Check Valve Assembly688-11370-01-00
Required: 2
.CHECK VALVE ASSY
Supersedes: 688-11370-00-00
In stock
Only 1 remaining
$12.76
You save $3.19
4
Yamaha Motors
Check Valve Assembly650-11370-01-00
Required: 1
.CHECK VALVE ASSY
Supersedes: 650-11370-00-00
In stock
Only 4 remaining
$13.40
You save $3.35
$6.88
You save $1.21
6
Yamaha Motors
Bearing Lock663-11518-01-00
Required: 3
.LOCK, BEARING
$9.27
You save $1.63
7
Yamaha Motors
Joint Pipe652-24461-00-00
Required: 1
.PIPE, JOINT 4
Supersedes: 650-24378-00-00
In stock
Only 1 remaining
$4.64
You save $1.16
-50%
In stock
Only 1 remaining
$3.38
You save $3.38
9
Yamaha Motors
Bolt with Washer90119-06M12-00
Required: 12
BOLT, WITH WASHER
$3.88
You save $0.97
10
Yamaha Motors
Bolt with Washer90119-10M07-00
Required: 6
BOLT, WITH WASHER
$4.39
You save $1.10
11
Yamaha Motors
Plate Washer90201-100F7-00
Required: 2
WASHER, PLATE
Supersedes: 90201-10430-00
$8.92
You save $1.57
12
Yamaha Motors
Nut95314-10600-00
Required: 2
NUT
Supersedes: 95313-10600-00
$2.17
You save $0.38
13
Yamaha Motors
Pan Head Screw90157-06M12-00
Required: 1
SCREW, PAN HEAD
Supersedes: 90157-06014-00
$5.35
You save $0.95
In stock
Only 2 remaining
$13.18
You save $2.33
15
Yamaha Motors
Nut95380-06700-00
Required: 1
NUT
Supersedes: 95303-06700-00
In stock
Only 4 remaining
$7.59
You save $1.90
16
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L276)
Supersedes: 90445-07260-00
In stock
Only 2 remaining
$5.92
You save $1.48
In stock
Only 3 remaining
$2.56
You save $0.64
$7.14
You save $1.26
19
Yamaha Motors
Hose (L167)90445-07M02-00
Required: 1
HOSE (L100)
Supersedes: 90445-07M00-00
$6.29
You save $1.11
20
Yamaha Motors
Hose (L570)90445-07MF1-00
Required: 1
HOSE (L408)
Supersedes: 90445-07M23-00
In stock
Only 4 remaining
$6.52
You save $1.63
In stock
Only 3 remaining
$2.56
You save $0.64
$5.09
You save $0.90
-50%
In stock
Only 5 remaining
$4.83
You save $4.83
In stock
5+ in stock
$1.24
You save $0.31
25
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.69
In stock
5+ in stock
$5.60
You save $1.40
27
Yamaha Motors
Flat Head Screw98780-04014-00
Required: 2
SCREW, FLAT HEAD
Supersedes: 98780-04015-00
In stock
Only 4 remaining
$2.84
You save $0.71
28
Yamaha Motors
Engine Hanger688-11119-01-00
Required: 1
HANGER, ENGINE
Supersedes: 688-11119-00-00
$12.66
You save $2.24
$1.44
You save $0.36
30
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER, PLAIN
Supersedes: 92903-08100-00
$4.48
You save $1.12
31
Yamaha Motors
Cylinder Head6H1-11111-01-1S
Required: 1
HEAD, CYLINDER 1
Supersedes: 6H1-11111-01-94
In stock
5+ in stock
$249.95
You save $62.85
32
Yamaha Motors
Cylinder Head Gasket688-11181-A2-00
Required: 1
.GASKET, CYLINDER HEAD 1
Supersedes: 688-11181-A1-00
In stock
5+ in stock
$47.80
You save $11.95
33
Yamaha Motors
Bolt with Washer90119-08M07-00
Required: 14
BOLT, WITH WASHER
Supersedes: 90119-08M21-00
In stock
5+ in stock
$4.39
You save $1.10
34
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 1
.PLUG, STRAIGHT SCREW
Supersedes: 90340-14M00-00
In stock
5+ in stock
$11.36
You save $2.84
In stock
Only 2 remaining
$2.40
You save $0.60
36
Yamaha Motors
Cylinder Head Cover688-11191-00-1S
Required: 1
COVER, CYLINDER HEAD 1
Supersedes: 688-11191-00-9M
In stock
Only 1 remaining
$34.52
You save $8.63
37
Yamaha Motors
Head Cover Gasket688-11193-A1-00
Required: 1
GASKET, HEAD COVER 1
In stock
5+ in stock
$16.92
You save $4.23
In stock
5+ in stock
$1.28
You save $0.32
39
Yamaha Motors
Plate Washer92990-06600-00
Required: 18
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.28
You save $0.57
In stock
5+ in stock
$3.52
You save $0.88
41
Yamaha Motors
Pressure Control Valve688-12416-00-00
Required: 1
VALVE, PRESSURE CONTROL
In stock
5+ in stock
$11.08
You save $2.77
42
Yamaha Motors
Compression Spring90501-16M11-00
Required: 1
SPRING, COMPRESSION
In stock
5+ in stock
$6.08
You save $1.52
43
Yamaha Motors
Thermostat6E5-12411-30-00
Required: 1
THERMOSTAT
Supersedes: 688-12411-10-00
In stock
5+ in stock
$25.88
You save $6.47
44
Yamaha Motors
Thermostat Cover688-12413-00-1S
Required: 1
COVER, THERMOSTAT
Supersedes: 688-12413-00-9M
In stock
Only 3 remaining
$12.12
You save $3.03
45
Yamaha Motors
Cover Gasket688-12414-A1-00
Required: 1
.GASKET, COVER
In stock
5+ in stock
$4.68
You save $1.17
In stock
5+ in stock
$2.12
You save $0.53
47
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.28
You save $0.57
48
Yamaha Motors
Exhaust Inner Cover688-41111-00-1S
Required: 1
INNER COVER, EXHAUST
Supersedes: 688-41111-00-9M
In stock
Only 4 remaining
$35.72
You save $8.93
49
Yamaha Motors
Exhaust Inner Cover Gasket688-41112-A0-00
Required: 1
GASKET, EXHAUST INNER COVER
In stock
5+ in stock
$7.28
You save $1.82
50
Yamaha Motors
Exhaust Outer Cover Gasket688-41114-A0-00
Required: 1
.GASKET, EXHAUST OUTER COVER
In stock
5+ in stock
$10.20
You save $2.55
51
Yamaha Motors
Obsolete Yamaha Part688-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 688-41113-00-9M
$45.90
You save $8.10
51
Yamaha Motors
Exhaust Outer Cover6H1-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 6H1-41113-00-9M
$61.48
You save $15.37
52
Yamaha Motors
Fuel Pipe6H4-24311-00-00
Required: 1
PIPE 2
Supersedes: 663-24312-01-00
In stock
Only 4 remaining
$5.56
You save $1.39
In stock
5+ in stock
$7.59
You save $1.90
$1.36
You save $0.24
55
Yamaha Motors
Plate Washer92990-08600-00
Required: 18
WASHER, PLATE
Supersedes: 92903-08600-00
In stock
5+ in stock
$2.16
You save $0.54
$10.12
You save $1.79
$2.54
You save $0.45
$14.41
You save $2.54
$11.08
You save $2.77
$1.36
You save $0.24
61
Yamaha Motors
NGK B8HS-10 SCREW TOP SPARK PLUGB8H-S1000-00-00
Required: 3
PLUG, SPARK (NGK B8HS-10)
Supersedes: NGK-B8HS1-00-00
In stock
5+ in stock
$3.76
You save $0.94
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
