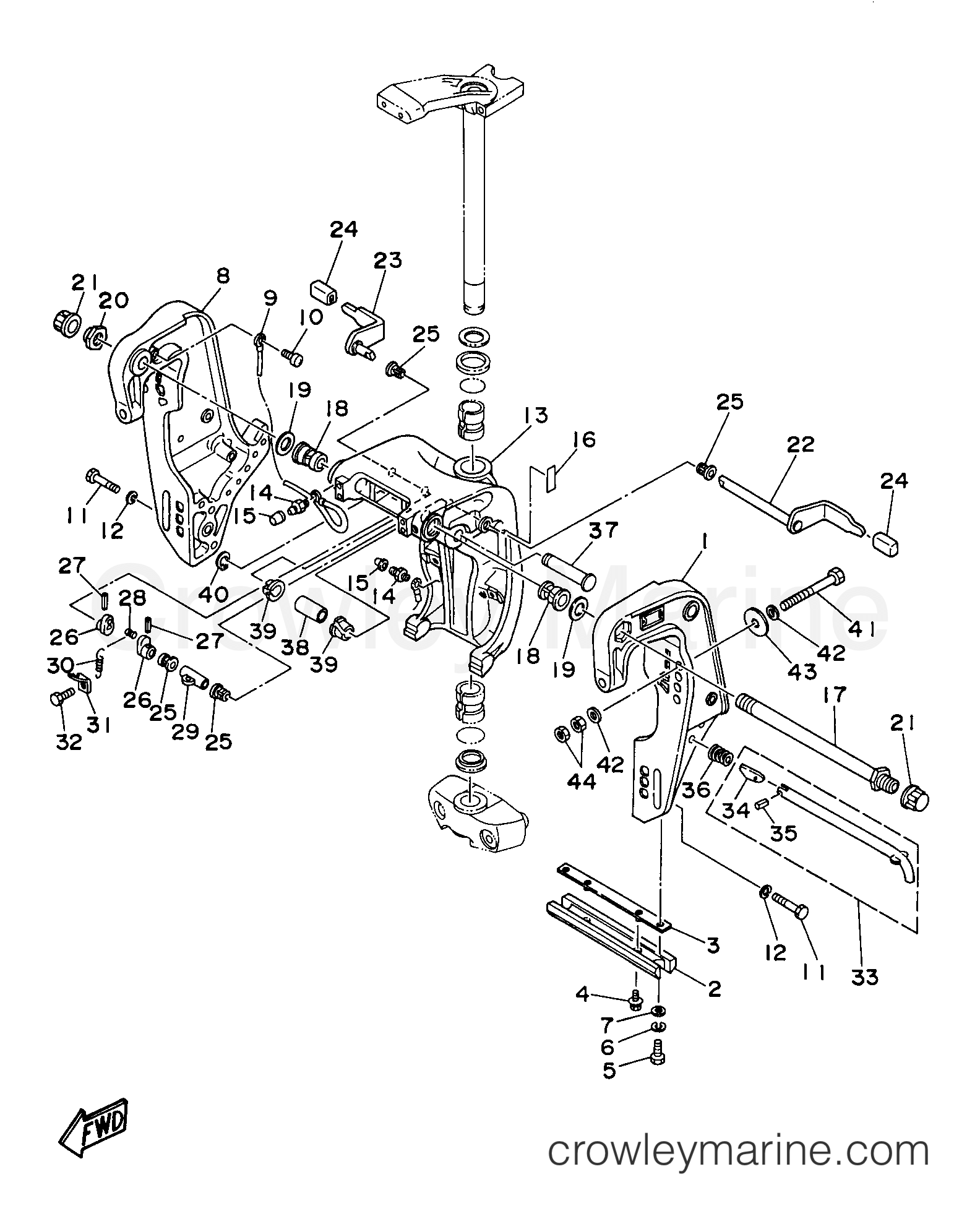

1998 Outboard 75hp - E75MLHW BRACKET 1 diagram
1
Yamaha Motors
Clamp Bracket 1688-43111-13-8D
Required: 1
BRACKET, CLAMP
Supersedes: 688-43111-13-4D
$371.96
You save $65.64
2
Yamaha Motors
Anode6H1-45251-03-00
Required: 1
ANODE
Supersedes: 6H1-45251-02-00
In stock
5+ in stock
$19.76
You save $3.49
3
Yamaha Motors
Plate6EK-44536-00-00
Required: 1
PLATE
Supersedes: 6H1-44526-00-00
In stock
5+ in stock
$12.41
You save $2.19
4
Yamaha Motors
Bolt with Washer90119-06274-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06M29-00
In stock
Only 4 remaining
$2.51
You save $0.44
$2.35
You save $0.41
6
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
7
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
8
Yamaha Motors
Clamp Bracket 2688-43112-12-8D
Required: 1
BRACKET, CLAMP
Supersedes: 688-43112-12-4D
$336.64
You save $59.41
In stock
Only 1 remaining
$19.46
You save $3.44
10
Yamaha Motors
Pan Head Screw97885-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 97880-06012-00
$2.85
You save $0.50
In stock
5+ in stock
$9.31
You save $1.64
12
Yamaha Motors
Spring Washer92990-10100-00
Required: 6
WASHER
Supersedes: 92995-10100-00
In stock
5+ in stock
$2.76
You save $0.49
13
Yamaha Motors
Swivel Bracket6H1-43311-02-8D
Required: 1
BRACKET, SWIVEL 1
Supersedes: 6H1-43311-01-4D
$535.88
You save $94.57
14
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 3
NIPPLE, GREASE
In stock
5+ in stock
$7.01
You save $1.24
15
Yamaha Motors
Grease Nipple Cap663-45119-01-00
Required: 3
CAP, GREASE NIPPLE
Supersedes: 663-45119-00-00
In stock
5+ in stock
$2.04
You save $0.36
16
Yamaha Motors
Tilt Indicator688-43691-01-00
Required: 1
INDICATOR, TILT
$4.33
You save $0.77
17
Yamaha Motors
Clamp Bracket Bolt688-43131-03-00
Required: 1
BOLT, CLAMP BRACKET
In stock
Only 2 remaining
$131.03
You save $23.12
In stock
5+ in stock
$9.44
You save $1.67
19
Yamaha Motors
Plate Washer90201-22M67-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$4.80
You save $0.85
20
Yamaha Motors
Self-Locking Nut90185-22007-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-22043-00
In stock
5+ in stock
$20.36
You save $3.59
21
Yamaha Motors
Clamp Bracket Cap6G5-43145-01-00
Required: 2
CAP, CLAMP BRACKET
Supersedes: 6G5-43145-00-00
In stock
5+ in stock
$10.67
You save $1.88
22
Yamaha Motors
Tilt Stop Lever688-43181-10-00
Required: 1
LEVER, TILT STOP
$81.90
You save $14.45
23
Yamaha Motors
Tilt Stop Lever688-43185-10-00
Required: 1
LEVER, TILT STOP
$81.90
You save $14.45
$10.67
You save $1.88
In stock
5+ in stock
$4.72
You save $0.83
26
Yamaha Motors
Distance Collar6G5-43148-00-00
Required: 2
COLLAR, DISTANCE
In stock
5+ in stock
$8.03
You save $1.42
In stock
5+ in stock
$3.02
You save $0.53
In stock
5+ in stock
$7.73
You save $1.37
In stock
Only 1 remaining
$8.59
You save $1.52
30
Yamaha Motors
Tension Spring90506-14M24-00
Required: 1
SPRING, TENSION
In stock
5+ in stock
$7.73
You save $1.37
In stock
Only 1 remaining
$6.08
You save $1.07
$5.09
You save $0.90
In stock
Only 1 remaining
$51.85
You save $9.15
34
Yamaha Motors
Tilt Lock Plate688-43165-00-00
Required: 1
.PLATE, TILT LOCK
$10.67
You save $1.88
In stock
Only 1 remaining
$4.72
You save $0.83
36
Yamaha Motors
Conical Spring90502-16M02-00
Required: 1
SPRING, CONICAL
In stock
Only 1 remaining
$5.31
You save $0.94
37
Yamaha Motors
Upper Shock Mount Pin6E5-43126-02-00
Required: 1
PIN, UPPER SHOCK MOUNT
In stock
Only 5 remaining
$45.94
You save $8.11
In stock
Only 2 remaining
$12.66
You save $2.24
In stock
5+ in stock
$13.30
You save $2.35
40
Yamaha Motors
Circle Clip93410-18M05-00
Required: 1
CIRCLIP
Supersedes: 93410-18M02-00
In stock
5+ in stock
$4.80
You save $0.85
$28.26
You save $4.99
42
Yamaha Motors
Washer92990-12200-00
Required: 8
WASHER, PLAIN
In stock
Only 1 remaining
$8.07
You save $1.42
43
Yamaha Motors
Plate Washer90201-12426-00
Required: 4
WASHER, PLATE
In stock
Only 1 remaining
$1.91
You save $0.34
$8.71
You save $1.54
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
