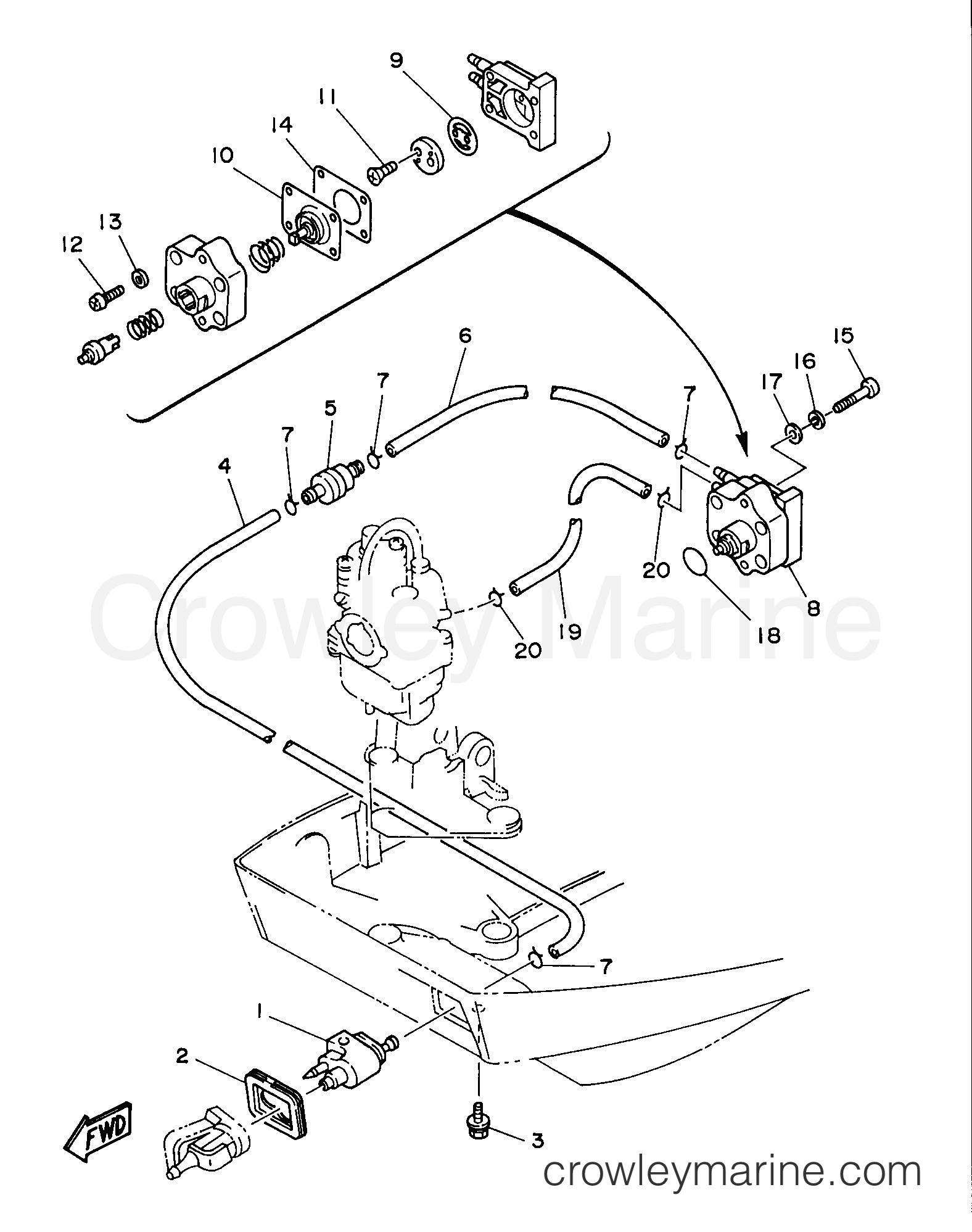

1997 Outboard 9.9hp - F9.9MLHV FUEL diagram
1
Yamaha Motors
FUEL PIPE JOINT COMP. 16G1-24304-11-00
Required: 1
FUEL PIPE JOINT COMP. 1
Supersedes: 6G1-24304-02-00
In stock
Only 5 remaining
$28.16
You save $7.04
$11.56
You save $2.04
3
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06520-00
In stock
Only 2 remaining
$2.44
You save $0.61
$12.92
You save $2.28
In stock
5+ in stock
$15.28
You save $3.82
6
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE
Supersedes: 90445-09078-00
In stock
5+ in stock
$9.99
You save $2.50
In stock
5+ in stock
$7.59
You save $1.90
8
Yamaha Motors
Fuel Pump Assembly99999-03273-00
Required: 1
FUEL PUMP ASSY
Supersedes: 6G8-24410-03-00
In stock
Only 1 remaining
$95.95
You save $24.35
9
Yamaha Motors
Check Valve6G8-24421-10-00
Required: 1
.VALVE, CHECK
Supersedes: 6G8-24421-00-00
In stock
Only 5 remaining
$20.00
You save $5.00
In stock
5+ in stock
$17.72
You save $4.43
11
Yamaha Motors
Flat Head Screw98780-03008-00
Required: 2
.SCREW, FLAT HEAD
$4.80
You save $0.85
12
Yamaha Motors
Pan Head Screw98580-04014-00
Required: 4
.SCREW, PAN HEAD
$3.60
You save $-0.30
-50%
In stock
Only 1 remaining
$1.00
You save $1.00
$24.04
You save $6.01
15
Yamaha Motors
Pan Head Screw97885-06025-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98580-06025-00
In stock
Only 3 remaining
$4.29
You save $0.76
16
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.69
17
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
In stock
5+ in stock
$4.40
You save $1.10
19
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (JN3)
Supersedes: 90445-093J2-00
In stock
5+ in stock
$9.99
You save $2.50
In stock
5+ in stock
$7.59
You save $1.90
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
