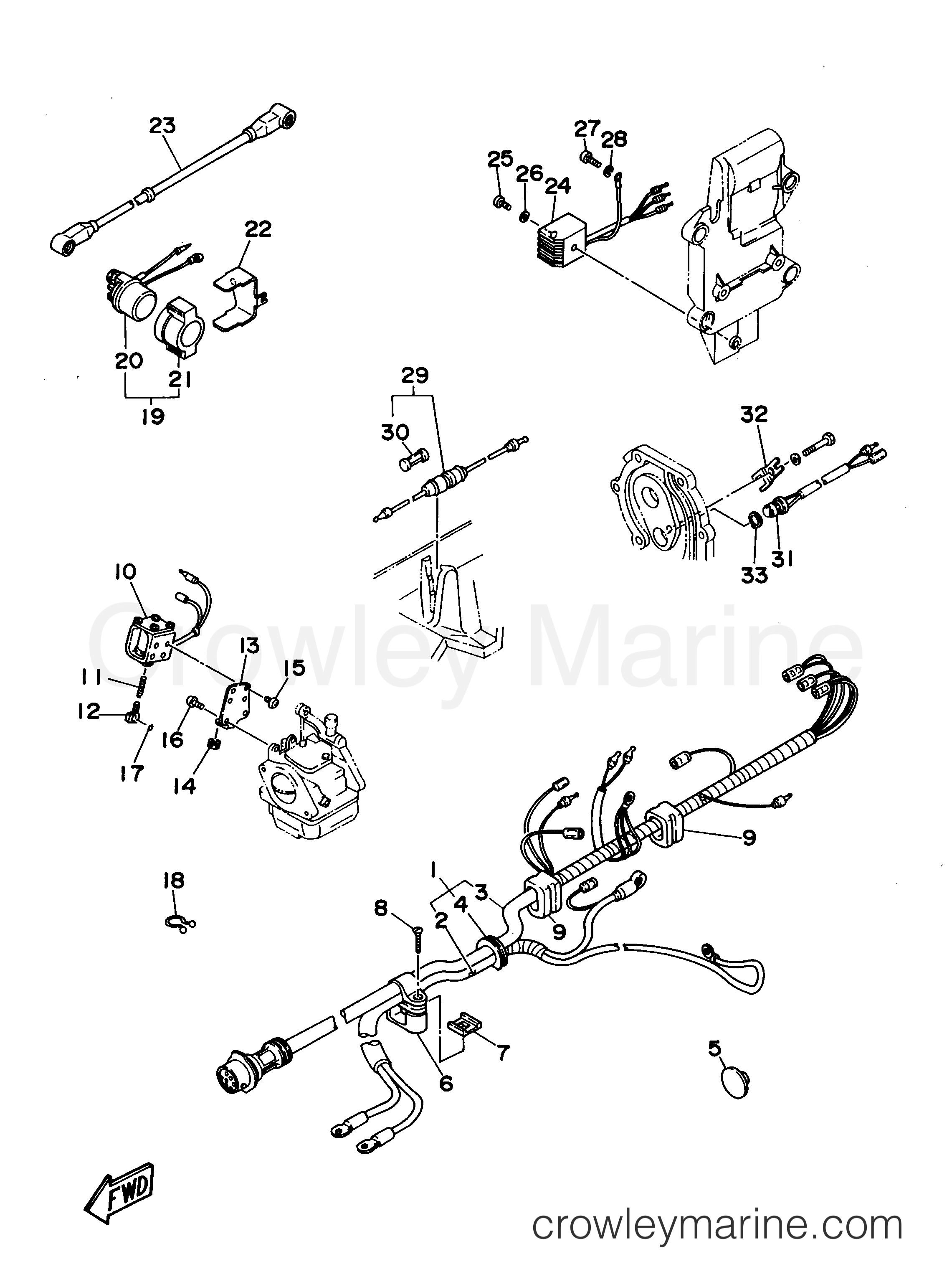

1997 Outboard 30hp - C30ELRV ELECTRICAL 2 diagram

1
Yamaha Motors
Wire Harness Assembly61T-82580-00-00
Required: 1
WIRE HARNESS ASSEMBLY 2
$200.69
You save $35.42

2
Yamaha Motors
Wire Harness Assembly61T-82590-00-00
Required: 1
.WIRE HARNESS ASSEMBLY
$133.28
You save $23.52

3
Yamaha Motors
BATTERY CABLE66T-82105-J2-00
Required: 1
.BATTERY CABLE
Supersedes: 695-82105-13-00
$126.18
You save $22.27

4
Yamaha Motors
GROMMET689-42724-51-00
Required: 1
.GROMMET
Supersedes: 689-42724-50-00
$7.91
You save $1.40
$8.59
You save $1.52
$11.05
You save $1.95

7
Yamaha Motors
Friction Plate682-42525-00-00
Required: 1
PLATE, FRICTION 1
$10.84
You save $1.91

8
Yamaha Motors
Tapping Screw90161-06M03-00
Required: 1
SCREW, TAPPING
$3.91
You save $0.69
$7.52
You save $1.33

10
Yamaha Motors
Solenoid Coil61T-86111-00-00
Required: 1
COIL, SOLENOID
$84.06
You save $14.84
$4.80
You save $0.85

12
Yamaha Motors
Wire Pull Hook682-86117-00-00
Required: 1
HOOK, WIRE PULL
$12.03
You save $2.12

13
Yamaha Motors
Solenoid Stay61T-86112-00-00
Required: 1
STAY, SOLENOID
$11.69
You save $2.06
$5.70
You save $1.00

15
Yamaha Motors
Pan Head Screw98580-04006-00
Required: 4
.SCREW, PAN HEAD
$2.72
You save $0.48

16
Yamaha Motors
Screw98580-05012-00
Required: 2
.SCREW, PAN HEAD
In stock
Only 1 remaining
$6.79
You save $1.20
In stock
5+ in stock
$5.82
You save $1.03
$7.22
You save $1.27

19
Yamaha Motors
Starter Relay6G1-81941-10-00
Required: 1
STARTER RELAY ASSEMBLY
Supersedes: 6G1-81940-00-00
In stock
5+ in stock
$74.84
You save $13.21

20
Yamaha Motors
Starter Relay6G1-81941-10-00
Required: 1
.STARTER RELAY ASSY
In stock
5+ in stock
$74.84
You save $13.21

21
Yamaha Motors
HOLDER, RELAY6G1-81952-01-00
Required: 1
.HOLDER, RELAY
Supersedes: 6G1-81952-00-00
$12.07
You save $2.13

22
Yamaha Motors
Switch Fitting Plate61T-81945-00-00
Required: 1
PLATE, SWITCH FITTING
$16.23
You save $2.86

23
Yamaha Motors
WIRE, LEAD689-82531-03-00
Required: 1
WIRE, LEAD
Supersedes: 689-82531-02-00
$34.04
You save $6.01

24
Yamaha Motors
Obsolete Yamaha Part664-81970-62-00
Required: 1
RECTIFIER ASSEMBLY
Supersedes: 664-81970-61-00
$77.77
You save $13.73

25
Yamaha Motors
Pan Head Screw98580-05525-00
Required: 1
SCREW, PAN HEAD
In stock
Only 5 remaining
$1.70
You save $0.30

26
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER, PLATE
In stock
Only 4 remaining
$0.68
You save $0.12
$2.54
You save $0.45

28
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52

29
Yamaha Motors
FUSE HOLDER ASSEMBLY682-82150-11-00
Required: 1
FUSE HOLDER ASSEMBLY
Supersedes: 682-82150-10-00
$13.81
You save $2.44

30
Yamaha Motors
Fuse (12V/10A)682-82151-01-00
Required: 1
.FUSE (12V-20A)
Supersedes: 682-82151-00-00
$2.17
You save $0.38

31
Yamaha Motors
Thermo Switch Assembly61T-82560-00-00
Required: 1
THERMO SWITCH ASSEMBLY
$97.28
You save $17.17
$5.70
You save $1.00
$2.25
You save $0.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
