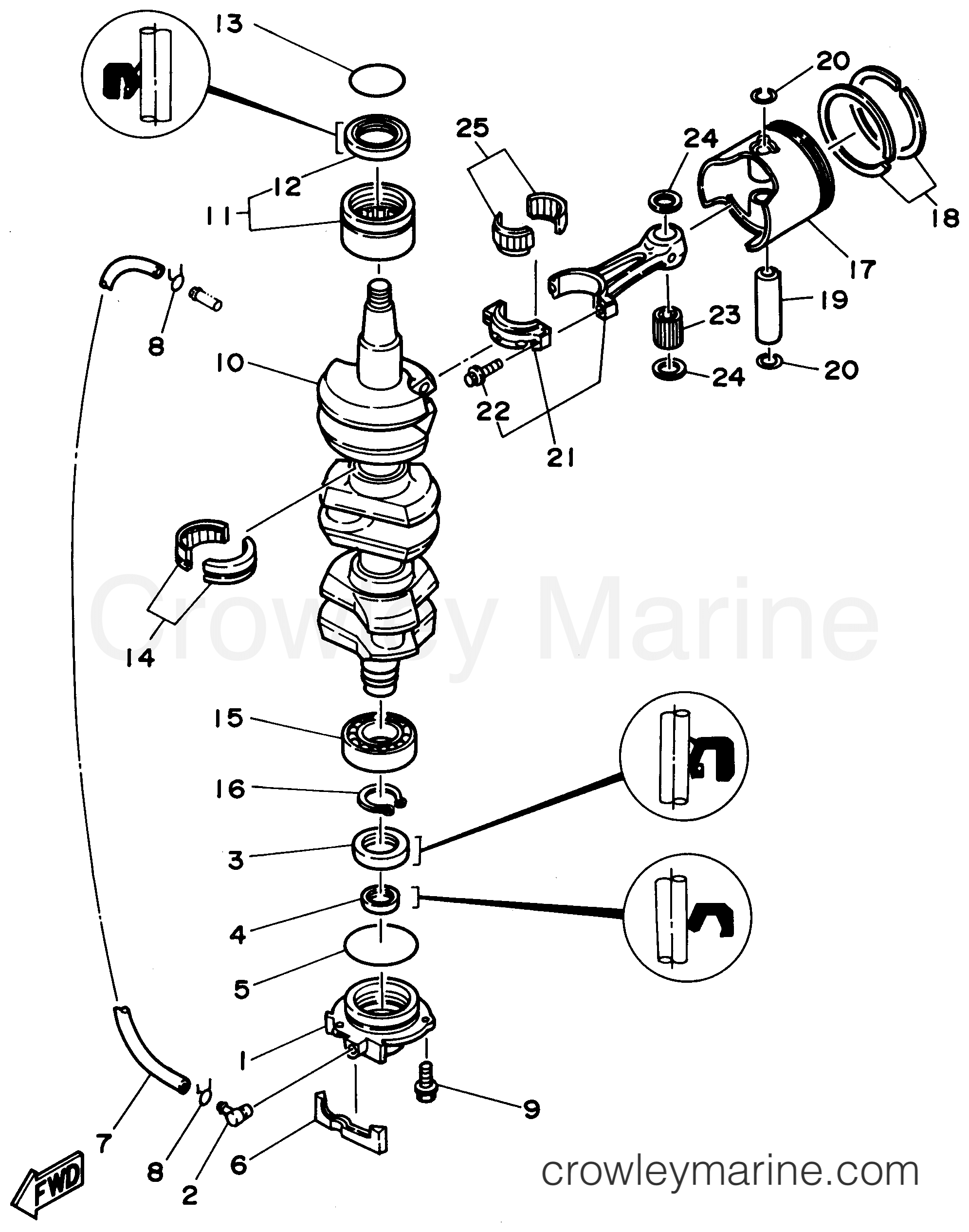

1996 Outboard 85hp - C85TLRU CRANKSHAFT PISTON diagram
1
Yamaha Motors
Oil Seal Housing6H1-15359-01-94
Required: 1
HOUSING, OIL SEAL
$53.42
You save $9.43
2
Yamaha Motors
Check Valve Assembly688-11370-01-00
Required: 1
CHECK VALVE ASSY
Supersedes: 688-11370-00-00
In stock
Only 1 remaining
$12.76
You save $3.19
$8.88
You save $2.22
In stock
Only 2 remaining
$5.56
You save $1.39
In stock
Only 1 remaining
$8.32
You save $2.08
6
Yamaha Motors
Crankcase Seal688-15379-00-00
Required: 1
SEAL, CRANKCASE
$13.00
You save $3.25
$19.54
You save $3.45
In stock
Only 3 remaining
$2.56
You save $0.64
9
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 3
BOLT, WITH WASHER
Supersedes: 97595-06520-00
In stock
Only 2 remaining
$2.44
You save $0.61
$857.10
You save $151.25
$93.95
You save $17.04
12
Yamaha Motors
SD-TYPE OIL SEAL93102-36351-00
Required: 1
.OIL SEAL
Supersedes: 93102-36M24-00
In stock
Only 1 remaining
$8.56
You save $2.14
In stock
Only 1 remaining
$7.72
You save $1.93
$113.95
You save $29.04
$73.09
You save $12.90
16
Yamaha Motors
S -type Circlip93410-32075-00
Required: 1
CIRCLIP
Supersedes: 93410-32M00-00
In stock
5+ in stock
$8.92
You save $1.57
17
Yamaha Motors
Piston (0.25MM O/S)6H1-11635-03-00
Required: 3
PISTON (0.25MM O/S)
$151.05
You save $26.66
17
Yamaha Motors
Piston (0.50MM O/S)6H1-11636-03-00
Required: 3
PISTON (0.50MM O/S)
$150.95
You save $26.75
$131.95
You save $32.80
-50%
18
Yamaha Motors
Piston Ring Set688-11604-A0-00
Required: 3
PISTON RING SET (0.25MM O/S)
In stock
Only 1 remaining
$30.70
You save $30.70
18
Yamaha Motors
Piston Ring Set (0.50Mm O/S)688-11605-A0-00
Required: 3
PISTON RING SET (0.50MM O/S)
$52.48
You save $13.12
18
Yamaha Motors
Piston Ring Set (Standard)688-11603-A0-00
Required: 3
PISTON RING SET (STD)
In stock
Only 5 remaining
$49.12
You save $12.28
$17.55
You save $3.10
20
Yamaha Motors
Piston Pin Clip688-11634-00-00
Required: 6
CLIP, PISTON PIN
$4.00
You save $1.00
21
Yamaha Motors
Connecting Rod Assembly688-11650-03-00
Required: 3
CONNECTING ROD ASSY
$214.95
You save $38.25
22
Yamaha Motors
Bolt90109-08022-00
Required: 2
.BOLT
Supersedes: 90109-08M61-00
$6.24
You save $1.56
In stock
Only 1 remaining
$3.04
You save $0.76
24
Yamaha Motors
Plate Washer90201-20417-00
Required: 6
WASHER, PLATE
In stock
Only 2 remaining
$5.72
You save $1.43
$93.95
You save $23.04
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
