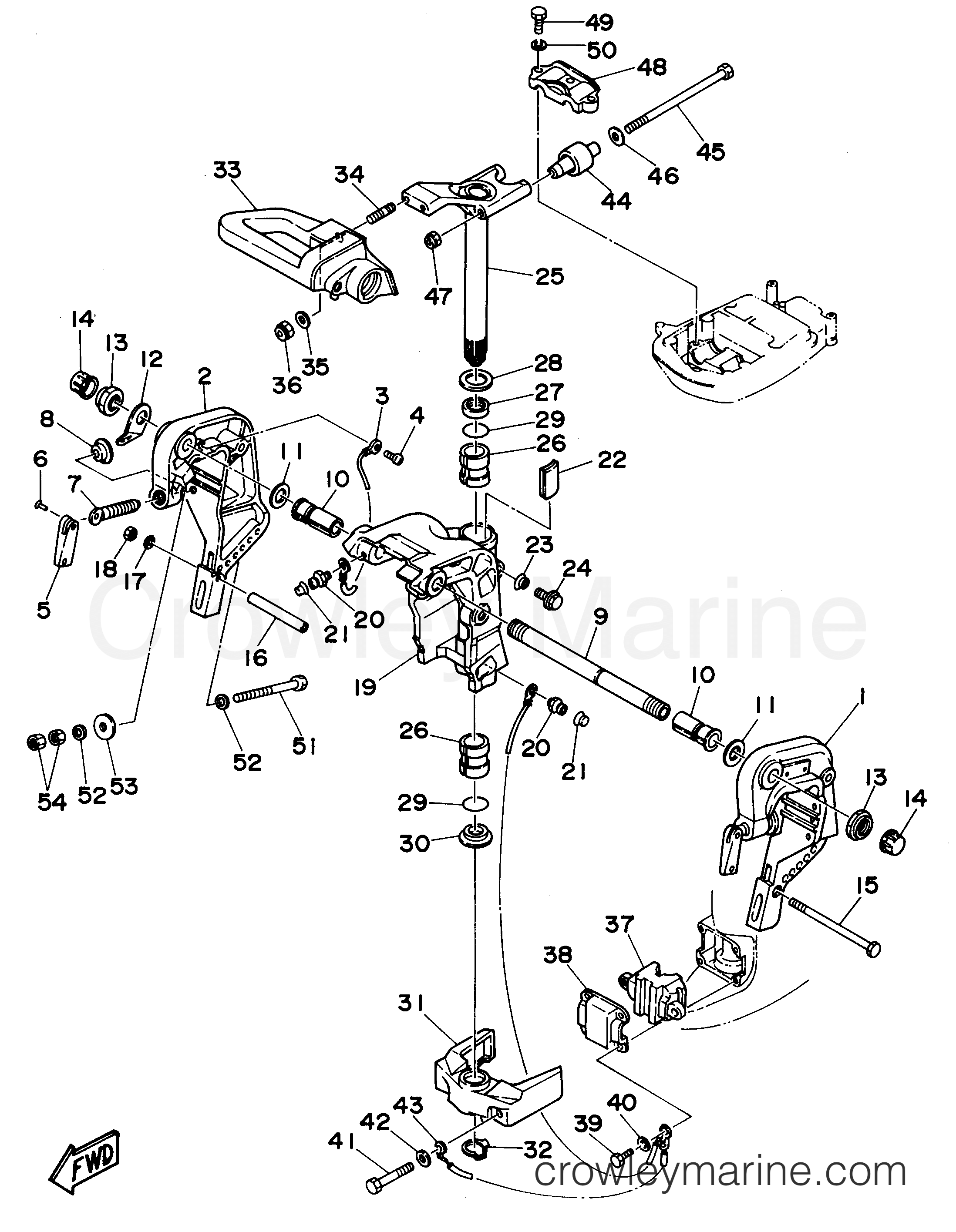

1996 Outboard 30hp - 30ELHU BRACKET 1 diagram
1
Yamaha Motors
Clamp Bracket 16H4-43111-05-8D
Required: 1
BRACKET, CLAMP
Supersedes: 6H4-43111-05-4D
$199.07
You save $35.13
2
Yamaha Motors
Clamp Bracket 26H4-43112-04-8D
Required: 1
BRACKET, CLAMP
Supersedes: 6H4-43112-04-4D
$170.51
You save $30.09
In stock
Only 1 remaining
$19.46
You save $3.44
4
Yamaha Motors
Pan Head Screw97885-06008-00
Required: 1
SCREW, PAN HEAD
$0.98
You save $0.17
5
Yamaha Motors
TRANSOM HANDLE CLAMP99999-02808-00
Required: 2
HANDLE, TRANSOM CLAMP
Supersedes: 616-43118-01-4D
$16.15
You save $2.85
$5.78
You save $1.02
$16.79
You save $2.96
8
Yamaha Motors
Transom Clamp Pad648-43114-01-00
Required: 2
PAD, TRANSOM CLAMP
In stock
Only 2 remaining
$12.07
You save $2.13
9
Yamaha Motors
Clamp Bracket Bolt6J8-43131-01-00
Required: 1
BOLT, CLAMP BRACKET
In stock
Only 1 remaining
$45.13
You save $7.97
In stock
Only 1 remaining
$6.93
You save $1.22
11
Yamaha Motors
Plate Washer90201-22M03-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$3.82
You save $0.68
12
Yamaha Motors
Clamp Bracket Plate6J8-43113-01-00
Required: 1
PLATE, CLAMP BRACKET
In stock
Only 1 remaining
$13.56
You save $2.39
13
Yamaha Motors
Self-Locking Nut90185-22007-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 90185-22M11-00
In stock
5+ in stock
$20.36
You save $3.59
14
Yamaha Motors
Clamp Bracket Cap6G5-43145-01-00
Required: 2
CAP, CLAMP BRACKET
Supersedes: 6G5-43145-00-00
In stock
5+ in stock
$10.67
You save $1.88
In stock
Only 1 remaining
$7.69
You save $1.36
16
Yamaha Motors
COLLAR90387-09019-00
Required: 1
COLLAR
Supersedes: 90387-08M03-00
$11.05
You save $1.95
17
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.29
You save $0.41
In stock
Only 1 remaining
$7.22
You save $1.27
19
Yamaha Motors
Swivel Bracket6J8-43311-04-8D
Required: 1
BRACKET, SWIVEL 1
Supersedes: 6J8-43311-04-4D
$319.05
You save $56.30
20
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 3
NIPPLE, GREASE
In stock
5+ in stock
$7.01
You save $1.24
21
Yamaha Motors
Grease Nipple Cap663-45119-01-00
Required: 3
CAP, GREASE NIPPLE
Supersedes: 663-45119-00-00
In stock
5+ in stock
$2.04
You save $0.36
22
Yamaha Motors
PLATE, FRICTION6J8-42528-01-00
Required: 1
PLATE, FRICTION
Supersedes: 6J8-42528-00-00
$9.78
You save $1.72
23
Yamaha Motors
SEAL, DAMPER689-43373-02-00
Required: 1
SEAL, DAMPER
Supersedes: 689-43373-01-00
In stock
Only 1 remaining
$5.31
You save $0.94
$2.46
You save $0.44
25
Yamaha Motors
STEERING BRACKET ASSY6J8-42510-03-8D
Required: 1
STEERING BRACKET ASSY
Supersedes: 6J8-42510-02-4D
$297.88
You save $52.57
In stock
Only 1 remaining
$13.30
You save $2.35
$6.54
You save $1.16
28
Yamaha Motors
Plate Washer90201-30M00-00
Required: 1
WASHER, PLATE
In stock
Only 2 remaining
$6.08
You save $1.07
In stock
Only 1 remaining
$5.44
You save $0.96
In stock
Only 1 remaining
$7.31
You save $1.29
31
Yamaha Motors
Lower Mount Housing (Rubber)6H4-44551-02-8D
Required: 1
HOUSING, LOWER MOUNT RUBBER
Supersedes: 6H4-44551-02-4D
$151.47
You save $26.73
In stock
Only 5 remaining
$12.20
You save $2.15
33
Yamaha Motors
Obsolete Yamaha Part6J8-WS421-02-4D
Required: 1
BRACKET
Supersedes: 6J8-42121-01-4D
$102.98
You save $18.17
34
Yamaha Motors
Stud Bolt90116-10063-00
Required: 2
BOLT, STUD
Supersedes: 90116-10M28-00
In stock
5+ in stock
$3.44
You save $0.61
35
Yamaha Motors
Plate Washer92990-10600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.55
You save $0.45
36
Yamaha Motors
Self-Locking Nut90185-10027-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 90185-10051-00
In stock
5+ in stock
$2.04
You save $0.36
37
Yamaha Motors
Lower Front Mount Damper6H4-44557-00-00
Required: 1
MOUNT DAMPER, LOWER FRONT
$66.43
You save $11.72
37
Yamaha Motors
Lower Front Mount Damper6H4-44557-10-00
Required: 1
MOUNT DAMPER, LOWER FRONT
$80.79
You save $14.26
38
Yamaha Motors
Lower Mount Cover6H4-44553-01-00
Required: 1
COVER, LOWER MOUNT
$48.92
You save $8.63
39
Yamaha Motors
Bolt97095-08025-00
Required: 4
BOLT
Supersedes: 97395-08025-00
In stock
5+ in stock
$8.07
You save $1.42
40
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER, PLATE
In stock
5+ in stock
$2.29
You save $0.41
41
Yamaha Motors
Bolt97095-10060-00
Required: 2
BOLT
Supersedes: 97395-10060-00
$7.64
You save $1.35
42
Yamaha Motors
Plate Washer92990-10600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.55
You save $0.45
$22.40
You save $3.95
44
Yamaha Motors
Upper Side Mount Damper6H4-44514-00-00
Required: 2
MOUNT DAMPER, UPPER SIDE
$33.11
You save $5.84
$15.72
You save $2.77
46
Yamaha Motors
Plate Washer90201-09425-00
Required: 2
WASHER, PLATE
In stock
Only 2 remaining
$5.91
You save $1.04
47
Yamaha Motors
Self-Locking Nut90185-08018-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 90185-08045-00
In stock
5+ in stock
$3.91
You save $0.69
48
Yamaha Motors
UPPER MOUNT COVER6J8-44511-00-00
Required: 1
COVER, UPPER MOUNT
Supersedes: 6J8-44511-00-4D
$50.58
You save $8.93
49
Yamaha Motors
Bolt97095-08035-00
Required: 3
BOLT
Supersedes: 97090-08035-00
In stock
5+ in stock
$4.67
You save $0.82
50
Yamaha Motors
Spring Washer92990-08100-00
Required: 3
WASHER, SPRING
$4.76
You save $0.84
In stock
Only 1 remaining
$12.83
You save $2.27
52
Yamaha Motors
Plate Washer92990-10600-00
Required: 8
WASHER, PLATE
In stock
5+ in stock
$2.55
You save $0.45
53
Yamaha Motors
Plate Washer90201-12426-00
Required: 4
WASHER, PLATE
In stock
Only 1 remaining
$1.91
You save $0.34
$2.38
You save $0.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
