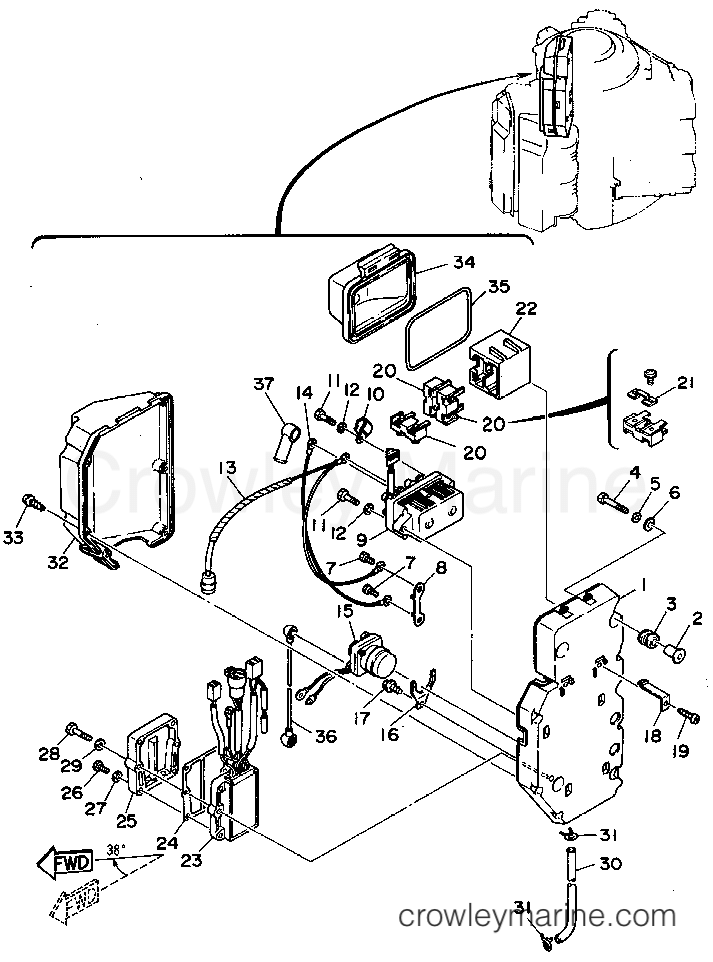

1995 Outboard 250hp - L250TXRT ELECTRICAL 3 diagram
1
Yamaha Motors
Obsolete Yamaha Part61A-81948-01-00
Required: 1
BRACKET
Supersedes: 61A-81948-00-00
$55.38
You save $9.77
2
Yamaha Motors
Collar90387-06119-00
Required: 4
PIPE
Supersedes: 624-42542-00-00
In stock
5+ in stock
$4.08
You save $0.72
3
Yamaha Motors
DAMPER, IGNITION C6A0-82317-01-00
Required: 4
DAMPER, IGNITION COIL
Supersedes: 6A0-82317-00-00
In stock
Only 5 remaining
$6.03
You save $1.07
4
Yamaha Motors
Bolt97080-06030-00
Required: 4
BOLT
Supersedes: 97095-06030-00
In stock
5+ in stock
$3.49
You save $0.62
5
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
6
Yamaha Motors
Plate Washer90201-06M62-00
Required: 4
WASHER, PLATE
$4.04
You save $0.71
7
Yamaha Motors
BOLT, HEXAGON DEEP R97D95-06014-00
Required: 2
BOLT, HEXAGON
Supersedes: 97313-06014-00
In stock
5+ in stock
$1.32
You save $0.23
$7.95
You save $1.40
9
Yamaha Motors
Relay Assembly61A-81950-01-00
Required: 1
RELAY ASSY
Supersedes: 61A-81950-00-00
In stock
Only 3 remaining
$229.71
You save $40.54
$6.37
You save $1.12
11
Yamaha Motors
Bolt97080-06030-00
Required: 2
BOLT
Supersedes: 97095-06030-00
In stock
5+ in stock
$3.49
You save $0.62
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
13
Yamaha Motors
WIRE, LEAD61A-81949-11-00
Required: 1
WIRE, LEAD
Supersedes: 61A-81949-10-00
$33.75
You save $5.95
14
Yamaha Motors
LEAD WIRE6H2-81949-12-00
Required: 1
WIRE, LEAD
Supersedes: 61A-81949-00-00
$15.38
You save $2.71
15
Yamaha Motors
Starter Relay61A-81941-00-00
Required: 1
STARTER RELAY ASSY
In stock
5+ in stock
$115.77
You save $20.43
$7.69
You save $1.36
17
Yamaha Motors
Tapping Screw97780-50612-00
Required: 1
SCREW, TAPPING
$3.74
You save $0.66
18
Yamaha Motors
Fuse Box Stay61A-82171-00-00
Required: 2
STAY, FUSE BOX
$5.70
You save $1.00
19
Yamaha Motors
Tapping Screw97780-50612-00
Required: 2
SCREW, TAPPING
$3.74
You save $0.66
20
Yamaha Motors
Obsolete Yamaha Part61A-82150-01-00
Required: 3
FUSE HOLDER ASSY
Supersedes: 61A-82150-00-00
$28.22
You save $4.98
21
Yamaha Motors
Fuse (12V-80A)61A-82151-00-00
Required: 1
.FUSE (12V-80A)
$5.23
You save $0.92
22
Yamaha Motors
Fuse Holder Stay61A-82153-00-00
Required: 1
STAY, FUSE HOLDER
$13.81
You save $2.44
23
Yamaha Motors
Obsolete Yamaha Part61A-81960-03-00
Required: 1
RECTIFIER & REGULATOR ASSY
Supersedes: 61A-81960-01-00
$186.83
You save $32.97
24
Yamaha Motors
Rectifier Fitting Plate61A-81975-A0-00
Required: 1
PLATE, RECTIFIER FITTING
In stock
Only 3 remaining
$13.56
You save $2.39
25
Yamaha Motors
Rectifier Cover69J-81972-02-9S
Required: 1
COVER, RECTIFIER
Supersedes: 61A-81972-00-9M
In stock
Only 3 remaining
$41.01
You save $7.24
$2.85
You save $0.50
27
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
28
Yamaha Motors
Bolt97080-06030-00
Required: 2
BOLT
Supersedes: 97095-06030-00
In stock
5+ in stock
$3.49
You save $0.62
29
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
30
Yamaha Motors
Fuel Pipe6H4-24311-00-00
Required: 1
PIPE 4
Supersedes: 61A-24314-00-00
In stock
Only 4 remaining
$5.91
You save $1.04
In stock
5+ in stock
$8.07
You save $1.42
In stock
Only 1 remaining
$20.44
You save $3.61
33
Yamaha Motors
Truss Head Tapping Screw90169-05M00-00
Required: 6
SCREW, TRUSS HEAD TAPPING
In stock
5+ in stock
$4.17
You save $0.74
34
Yamaha Motors
Case61A-82154-01-00
Required: 1
CASE
Supersedes: 61A-82154-00-00
$13.18
You save $2.33
$7.31
You save $1.29
$29.71
You save $5.24
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
