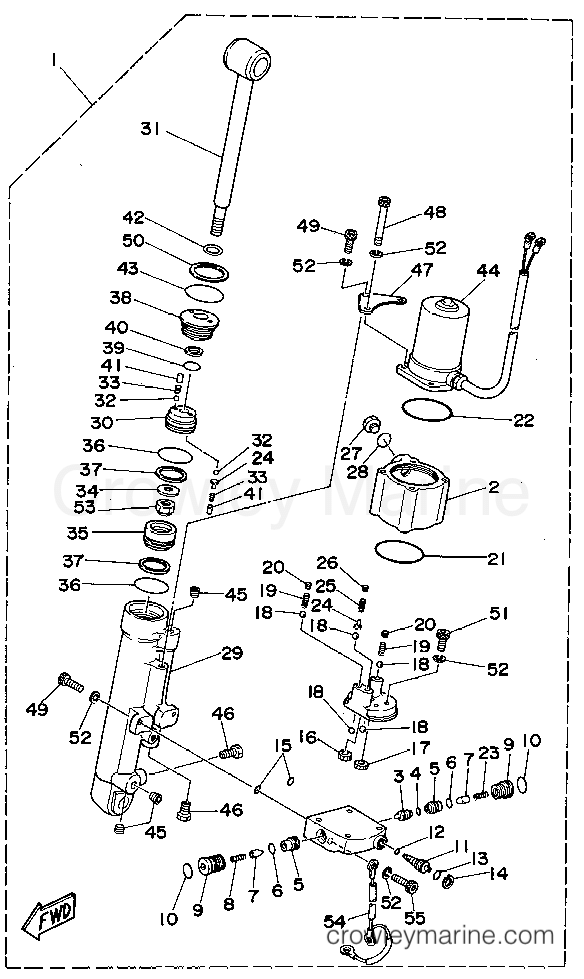

1995 Outboard 40hp - C40MLHT POWER TILT ASSEMBLY (C40PR) diagram

1
Yamaha Motors
Power Tilt Assembly6H5-43840-05-4D
Required: 1
POWER TILT ASSEMBLY
$2182.55
You save $385.16

2
Yamaha Motors
Reservoir Body6H5-43828-00-00
Required: 1
.BODY, RESERVOIR
$133.88
You save $23.63

3
Yamaha Motors
Shuttle Piston6H5-43841-00-00
Required: 1
.PISTON, SHUTTLE
$41.48
You save $7.32
$6.84
You save $1.21
$45.05
You save $7.95
$9.95
You save $1.76

7
Yamaha Motors
Valve Support Pin6H5-43849-00-00
Required: 2
.PIN, VALVE SUPPORT
$26.39
You save $4.66

8
Yamaha Motors
Main Valve Spring6H5-43853-00-00
Required: 1
.SPRING, MAIN VALVE
$11.26
You save $1.99
$41.44
You save $7.31
$9.31
You save $1.64

11
Yamaha Motors
Manual Valve Seat Screw6H5-43846-02-00
Required: 1
.SCREW, MANUAL VALVE SEAT
$45.01
You save $7.94
$7.40
You save $1.31
$8.12
You save $1.43
$10.37
You save $1.83
$7.82
You save $1.38

16
Yamaha Motors
Driven Gear6H5-43837-00-00
Required: 1
.GEAR, DRIVEN
$68.38
You save $12.07
$75.91
You save $13.39
$6.46
You save $1.14

19
Yamaha Motors
Down Relief Spring6H5-43856-00-00
Required: 2
.SPRING, DOWN RELIEF
$9.69
You save $1.71

20
Yamaha Motors
Valve Support Pin6H5-43844-00-00
Required: 2
.PIN, VALVE SUPPORT
$11.65
You save $2.05
$11.09
You save $1.96
$13.56
You save $2.39

23
Yamaha Motors
Main Valve Spring6H5-43853-10-00
Required: 1
.SPRING, MAIN VALVE
$10.58
You save $1.87

24
Yamaha Motors
Valve Support Pin6H5-43859-00-00
Required: 6
.PIN, VALVE SUPPORT
$8.03
You save $1.42

25
Yamaha Motors
Up Relief Spring6H5-43855-01-00
Required: 1
.SPRING, UP RELIEF
$8.50
You save $1.50

26
Yamaha Motors
Straight Ring6H5-4386F-00-00
Required: 1
.RING, STRAIGHT
$10.50
You save $1.85

27
Yamaha Motors
Reservoir Plug6H5-43829-00-00
Required: 1
.PLUG, RESERVOIR
$42.71
You save $7.54
$8.12
You save $1.43

29
Yamaha Motors
Tilt Cylinder6H5-43813-00-00
Required: 1
.CYLINDER, TILT
$175.44
You save $30.96

30
Yamaha Motors
Tilt Piston6H5-4385A-00-00
Required: 1
.PISTON, TILT
$67.75
You save $11.95
$150.49
You save $26.56
$4.93
You save $0.87

33
Yamaha Motors
Absorber Valve Spring6H5-43857-00-00
Required: 5
.SPRING, ABSORBER VALVE
$7.14
You save $1.26
$8.71
You save $1.54

35
Yamaha Motors
Free Piston6H5-43814-00-00
Required: 1
.PISTON, FREE
$52.78
You save $9.32
$11.09
You save $1.96

37
Yamaha Motors
Back Up Ring6H5-43871-00-00
Required: 2
.RING, BACK UP
$10.50
You save $1.85
$92.18
You save $16.27
$9.95
You save $1.76

40
Yamaha Motors
Back Up Ring6H5-43873-00-00
Required: 1
.RING, BACK UP
$10.88
You save $1.92
$5.82
You save $1.03
$21.89
You save $3.86
$10.37
You save $1.83

44
Yamaha Motors
Obsolete Yamaha Part6H5-43880-09-00
Required: 1
.MOTOR ASSEMBLY
Supersedes: 6H5-43880-02-00
$518.29
You save $91.46

45
Yamaha Motors
Taper Screw Plug6H5-43826-00-00
Required: 3
.PLUG, TAPER SCREW
$15.89
You save $2.80

46
Yamaha Motors
Cylinder End Screw6H5-43811-00-00
Required: 2
.SCREW, CYLINDER END
$36.46
You save $6.44
$12.15
You save $2.14

48
Yamaha Motors
Through Bolt6H5-43887-00-00
Required: 4
.BOLT, THROUGH
$13.60
You save $2.40
$10.84
You save $1.91

50
Yamaha Motors
Back Up Ring6H5-43872-00-00
Required: 1
.RING, BACK UP
$11.30
You save $2.00
$1.96
You save $0.35

52
Yamaha Motors
Spring Washer92995-06100-00
Required: 12
.WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
53
Yamaha Motors
NUT95617-12100-00
Required: 1
.NUT, U
Supersedes: 95600-12100-00
$3.54
You save $0.62

54
Yamaha Motors
Lead Wire6G1-82127-00-00
Required: 1
.WIRE, LEAD 2
$18.45
You save $3.25
$7.14
You save $1.26
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
