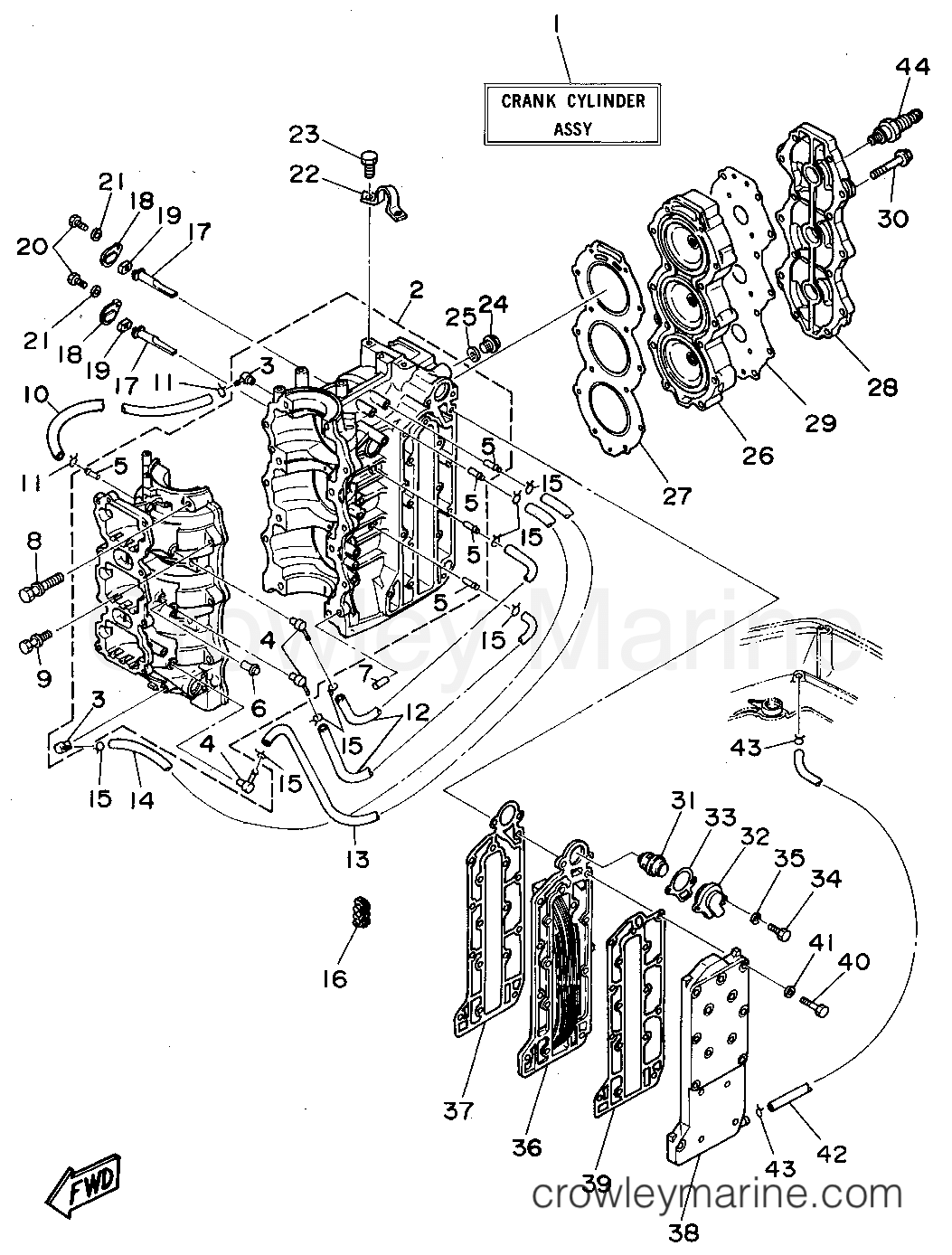

1994 Outboard 60hp - P60TLHS CYLINDER CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors P60TLHS - CYLINDER CRANKCASE
Change View:
CRANK CYLINDER ASSY
1
Yamaha Motors
CRANK CYLINDER ASSY6H3-W0090-47-1S
Required: 1
CRANK CYLINDER ASSY
Supersedes: 6H3-W0090-41-4D
Cross Ship
Leaves in 2-5 days
$3264.45
$2774.78
You save $489.67
More details
Crankcase Assembly
2
Yamaha Motors
Crankcase Assembly6H3-15100-14-94
Required: 1
CRANKCASE ASSY
Supersedes: 6H3-15100-13-94
Cross Ship
Leaves in 2-5 days
$2435.95
$2070.56
You save $365.39
More details
Joint Pipe
5
Yamaha Motors
Joint Pipe624-14485-00-00
Required: 5
.PIPE, JOINT
Cross Ship
Leaves in 2-5 days
$8.10
$6.88
You save $1.21
More details
Bolt with Washer
8
Yamaha Motors
Bolt with Washer90119-10M07-00
Required: 8
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Bolt with Washer
9
Yamaha Motors
Bolt with Washer90119-08M17-00
Required: 6
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$3.14
$2.67
You save $0.47
More details
Hose (L440)
14
Yamaha Motors
Hose (L440)90445-07M82-00
Required: 1
HOSE (L440)
Cross Ship
Leaves in 2-5 days
$22.99
$19.54
You save $3.45
More details
Clamp
16
Yamaha Motors
Clamp90464-07M05-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Anode Cover
18
Yamaha Motors
Anode Cover6H3-11327-00-94
Required: 2
COVER, ANODE
Cross Ship
Leaves in 2-5 days
$32.50
$27.63
You save $4.88
More details
BOLT, HEXAGON DEEP RECESS
20
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
BOLT, HEX
Supersedes: 97395-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Engine Hanger
22
Yamaha Motors
Engine Hanger688-11119-01-00
Required: 1
HANGER, ENGINE
Supersedes: 688-11119-00-00
Cross Ship
Leaves in 2-5 days
$14.90
$12.66
You save $2.24
More details
Bolt
23
Yamaha Motors
Bolt97013-08020-00
Required: 2
BOLT, HEXAGON
Supersedes: 97313-08020-00
Cross Ship
Leaves in 2-5 days
$1.80
$1.53
You save $0.27
More details
Cylinder Head
26
Yamaha Motors
Cylinder Head6H3-11111-01-1S
Required: 1
HEAD, CYLINDER 1
Supersedes: 6H3-11111-01-94
Cross Ship
Leaves in 2-5 days
$312.80
$265.88
You save $46.92
More details
Thermostat Cover
32
Yamaha Motors
Thermostat Cover6H3-12413-00-9M
Required: 1
COVER, THERMOSTAT
Cross Ship
Leaves in 2-5 days
$23.95
$20.36
You save $3.59
More details
BOLT
34
Yamaha Motors
BOLT97095-06025-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
Exhaust Outer Cover
38
Yamaha Motors
Exhaust Outer Cover6H3-41113-02-9M
Required: 1
OUTER COVER, EXHAUST
Supersedes: 6H3-41113-00-9M
Cross Ship
Leaves in 2-5 days
$92.10
$78.29
You save $13.81
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
