All diagrams for this model

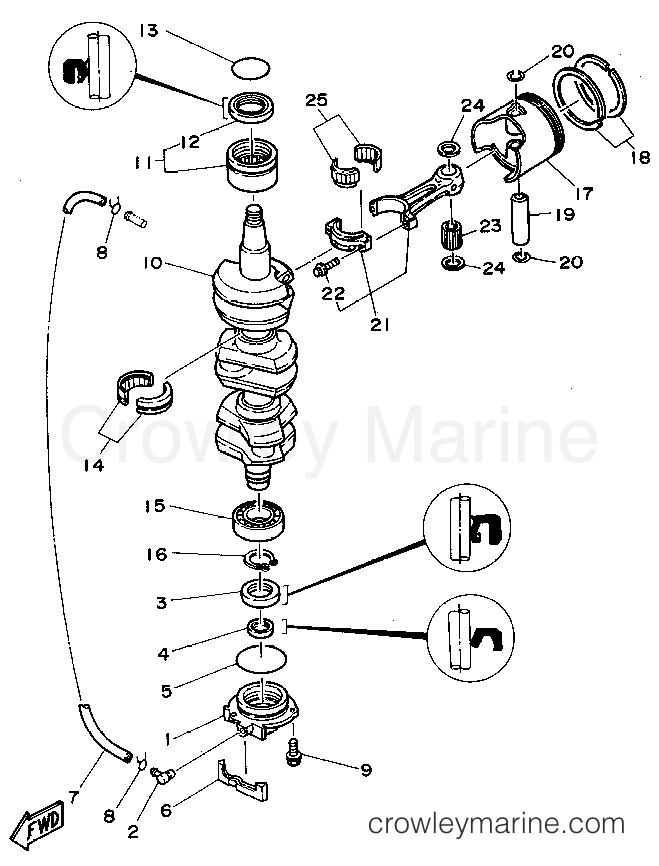

1994 Outboard 90hp - 90TLRS CRANKSHAFT PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 90TLRS - CRANKSHAFT PISTON
Change View:
Oil Seal Housing
1
Yamaha Motors
Oil Seal Housing6H1-15359-01-94
Required: 1
HOUSING, OIL SEAL
Cross Ship
Leaves in 2-5 days
$62.85
$53.42
You save $9.43
More details
Oil Seal
3
Yamaha Motors
Oil Seal93102-30M05-00
Required: 1
.OIL SEAL
Cross Ship
Leaves in 2-5 days
$11.10
$9.44
You save $1.67
More details
Crankcase Seal
6
Yamaha Motors
Crankcase Seal688-15379-00-00
Required: 1
SEAL, CRANKCASE
Cross Ship
Leaves in 2-5 days
$16.25
$13.81
You save $2.44
More details
Hose (L460)
7
Yamaha Motors
Hose (L460)90445-07M86-00
Required: 1
HOSE (L460)
Cross Ship
Leaves in 2-5 days
$22.99
$19.54
You save $3.45
More details
Crankshaft
10
Yamaha Motors
Crankshaft688-11411-01-00
Required: 1
CRANKSHAFT
Cross Ship
Leaves in 2-5 days
$1008.35
$857.10
You save $151.25
More details
Bearing
11
Yamaha Motors
Bearing93310-636U4-00
Required: 1
BEARING
Cross Ship
Leaves in 2-5 days
$110.99
$94.34
You save $16.65
More details
Bearing
14
Yamaha Motors
Bearing93310-835U8-00
Required: 2
BEARING
Cross Ship
Leaves in 2-5 days
$142.99
$121.54
You save $21.45
More details
Bearing
15
Yamaha Motors
Bearing93306-206U5-00
Required: 1
BEARING
Cross Ship
Leaves in 2-5 days
$85.99
$73.09
You save $12.90
More details
Piston (Standard)
17
Yamaha Motors
Piston (Standard)6H1-11631-03-95
Required: 3
PISTON (STD)
Cross Ship
Leaves in 2-5 days
$164.75
$140.04
You save $24.71
More details
Piston (0.50MM O/S)
17
Yamaha Motors
Piston (0.50MM O/S)6H1-11636-03-00
Required: 3
PISTON (0.50MM O/S)
Cross Ship
Leaves in 2-5 days
$177.70
$151.05
You save $26.66
More details
Piston Ring Set (0.50Mm O/S)
18
Yamaha Motors
Piston Ring Set (0.50Mm O/S)688-11605-A0-00
Required: 3
PISTON RING SET (0.50MM O/S)
Cross Ship
Leaves in 2-5 days
$65.60
$55.76
You save $9.84
More details
Piston Pin
19
Yamaha Motors
Piston Pin663-11633-00-00
Required: 3
PIN, PISTON
Cross Ship
Leaves in 2-5 days
$20.65
$17.55
You save $3.10
More details
Piston Pin Clip
20
Yamaha Motors
Piston Pin Clip688-11634-10-00
Required: 6
CLIP, PISTON PIN
Cross Ship
Leaves in 2-5 days
$5.50
$4.68
You save $0.83
More details
Connecting Rod Assembly
21
Yamaha Motors
Connecting Rod Assembly688-11650-03-00
Required: 3
CONNECTING ROD ASSY
Cross Ship
Leaves in 2-5 days
$253.20
$215.22
You save $37.98
More details
Bolt
22
Yamaha Motors
Bolt90109-08022-00
Required: 6
.BOLT
Supersedes: 90109-08M61-00
Cross Ship
Leaves in 2-5 days
$7.80
$6.63
You save $1.17
More details
Bearing
25
Yamaha Motors
Bearing93310-730V8-00
Required: 3
BEARING
Cross Ship
Leaves in 2-5 days
$116.99
$99.44
You save $17.55
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
