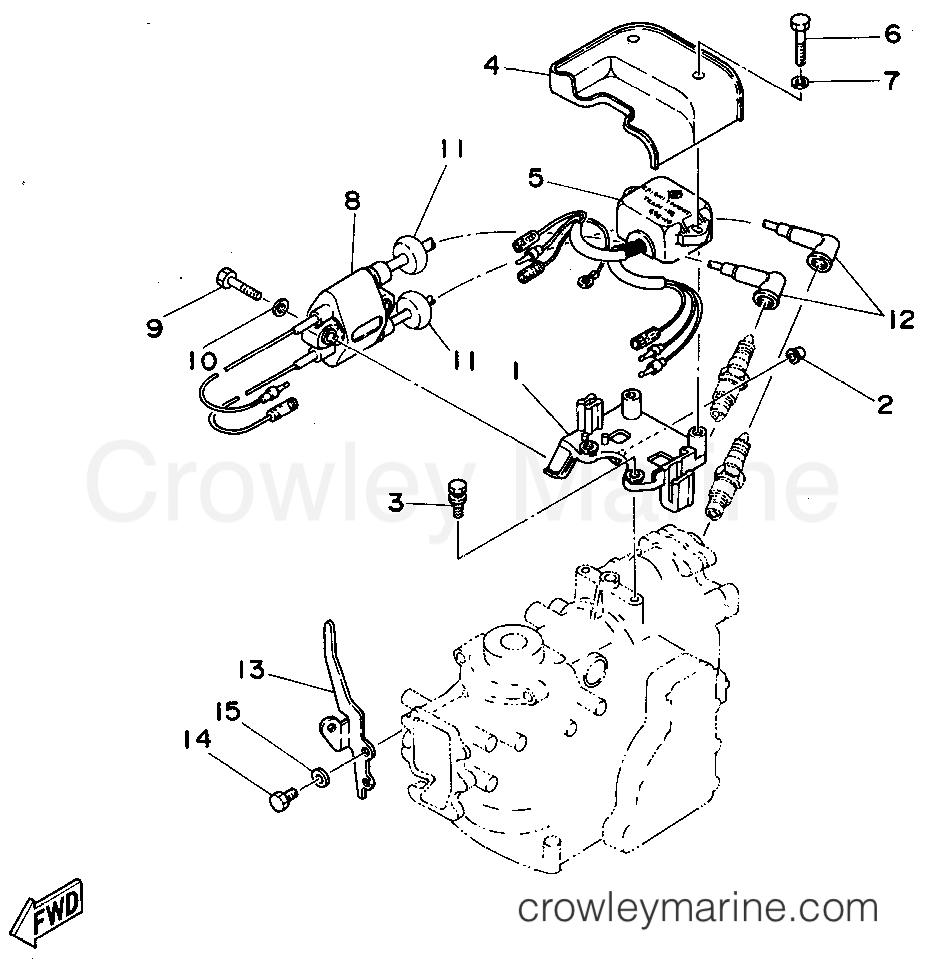

1994 Outboard 9.9hp - 9.9ELHS ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 9.9ELHS - ELECTRICAL 1
Change View:
Bracket
1
Yamaha Motors
Bracket6E7-85542-00-94
Required: 1
BRACKET
Cross Ship
Leaves in 2-5 days
$32.65
$27.75
You save $4.90
More details
Ignition Coil Damper
2
Yamaha Motors
Ignition Coil Damper6E7-82317-00-00
Required: 2
DAMPER, IGNITION COIL
Cross Ship
Leaves in 2-5 days
$6.30
$5.35
You save $0.95
More details
TERMINAL COVER
4
Yamaha Motors
TERMINAL COVER6E7-81916-00-00
Required: 1
COVER, TERMINAL
Cross Ship
Leaves in 2-5 days
$33.45
$28.43
You save $5.02
More details
Obsolete Yamaha Part
5
Yamaha Motors
Obsolete Yamaha Part695-85540-12-00
Required: 1
C.D.I. UNIT ASSEMBLY
Supersedes: 695-85540-11-00
Cross Ship
Leaves in 2-5 days
$241.95
$205.66
You save $36.29
More details
Plain Washer
7
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
.WASHER, PLAIN
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
Obsolete Yamaha Part
8
Yamaha Motors
Obsolete Yamaha Part680-85570-09-00
Required: 1
IGNITION COIL ASSEMBLY
Supersedes: 6E7-85570-19-00
Cross Ship
Leaves in 2-5 days
$279.85
$237.87
You save $41.98
More details
Timing Plate
13
Yamaha Motors
Timing Plate682-81332-02-00
Required: 1
PLATE, TIMING
Cross Ship
Leaves in 2-5 days
$14.75
$12.54
You save $2.21
More details
BOLT, HEXAGON DEEP RECESS
14
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
