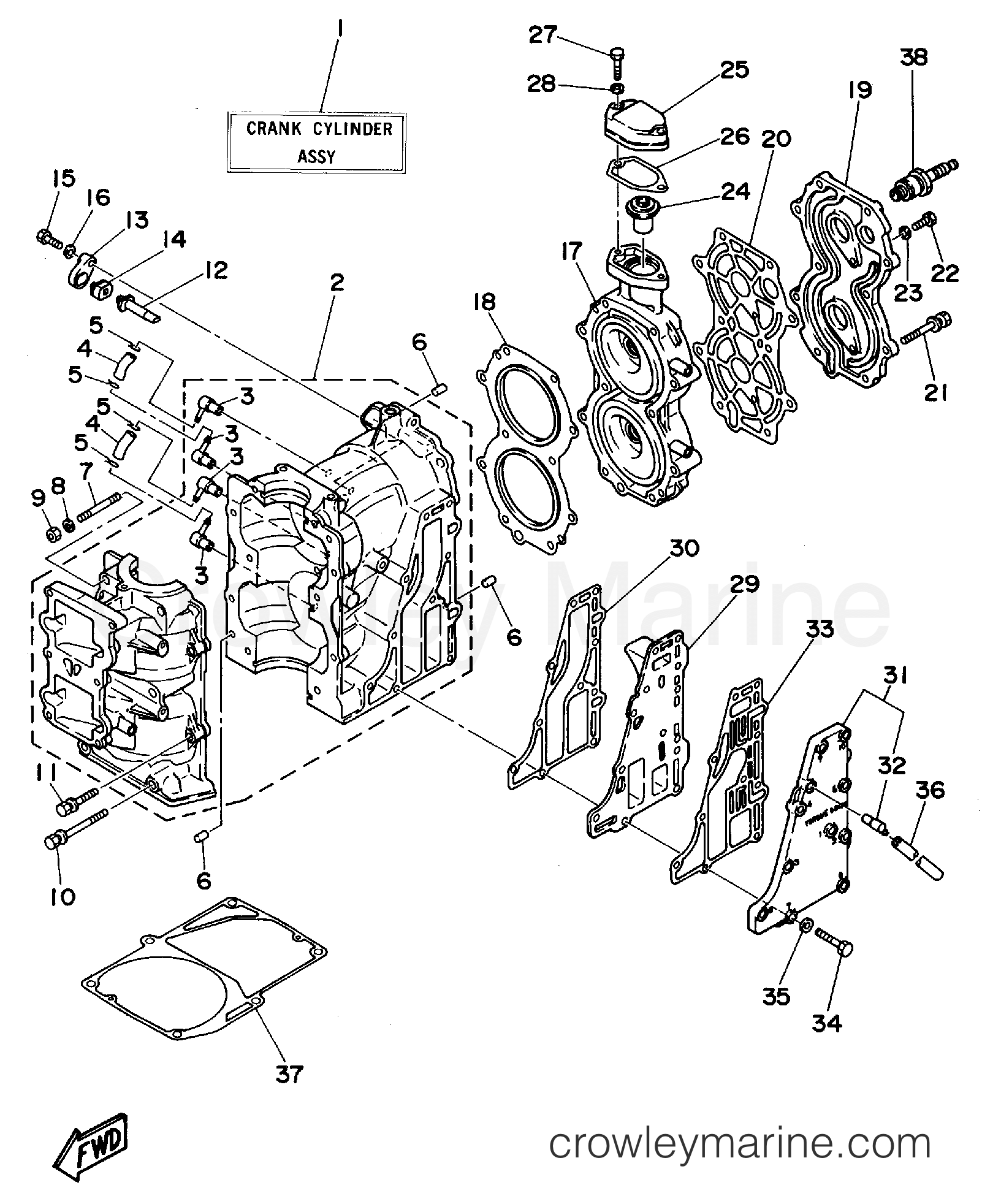

1994 Outboard 25hp - 25ELHS CYLINDER CRANKCASE diagram
1
Yamaha Motors
6L2-W0090-12-1S6L2-W0090-11-1S
Required: 1
CRANK CYLINDER ASSEMBLY
Supersedes: 6L2-W0090-11-4D
$1575.65
You save $278.06
2
Yamaha Motors
Crankcase Assembly6L2-15100-10-00
Required: 1
CRANKCASE ASSEMBLY
Supersedes: 6L2-15100-10-94
$757.65
You save $133.70
3
Yamaha Motors
Hose Nipple6E5-11372-01-00
Required: 4
.NIPPLE, HOSE
Supersedes: 6E5-11372-00-00
$8.67
You save $1.53
4
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 2
HOSE (L40)
Supersedes: 90445-07M15-00
In stock
Only 2 remaining
$6.29
You save $1.11
In stock
Only 3 remaining
$2.72
You save $0.48
In stock
Only 1 remaining
$4.42
You save $0.78
7
Yamaha Motors
Stud Bolt95617-08645-00
Required: 2
BOLT, STUD (95611-08645)
Supersedes: 95612-08645-00
$4.17
You save $0.74
8
Yamaha Motors
Plain Washer 90201-08086-00
Required: 2
WASHER, PLATE
$2.21
You save $0.39
In stock
Only 1 remaining
$3.23
You save $0.57
10
Yamaha Motors
Bolt with Washer90119-08M07-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-08M21-00
In stock
5+ in stock
$4.67
You save $0.82
11
Yamaha Motors
Bolt w/ Washer90119-06M14-00
Required: 4
BOLT, WITH WASHER
$8.07
You save $1.42
In stock
5+ in stock
$3.78
You save $0.67
$27.63
You save $4.88
14
Yamaha Motors
ANODE GROMMET6H3-11328-01-00
Required: 1
GROMMET, ANODE
Supersedes: 6H3-11328-00-00
In stock
5+ in stock
$5.74
You save $1.01
$2.35
You save $0.41
16
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
17
Yamaha Motors
Cylinder Head6L2-11111-01-1S
Required: 1
HEAD, CYLINDER 1
Supersedes: 6L2-11111-01-94
$136.04
You save $24.01
18
Yamaha Motors
Cylinder Head Gasket6L2-11181-A3-00
Required: 1
GASKET, CYLINDER HEAD 1
Supersedes: 6L2-11181-A1-00
In stock
5+ in stock
$33.02
You save $5.83
19
Yamaha Motors
Cylinder Head Cover6L2-11191-00-1S
Required: 1
COVER, CYLINDER HEAD 1
Supersedes: 6L2-11191-00-9M
$29.84
You save $5.27
20
Yamaha Motors
Head Cover Gasket6L2-11193-A1-00
Required: 1
.GASKET, HEAD COVER 1
In stock
5+ in stock
$10.79
You save $1.90
21
Yamaha Motors
Bolt w/ Washer90119-08M66-00
Required: 10
BOLT, WITH WASHER
Supersedes: 90119-08M20-00
In stock
Only 3 remaining
$3.10
You save $0.55
$2.35
You save $0.41
23
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
24
Yamaha Motors
Thermostat6E5-12411-02-00
Required: 1
THERMOSTAT
Supersedes: 6E5-12411-01-00
In stock
5+ in stock
$28.22
You save $4.98
25
Yamaha Motors
Thermostat Cover6H4-12413-00-1S
Required: 1
COVER, THERMOSTAT
Supersedes: 6H4-12413-00-9M
In stock
5+ in stock
$12.07
You save $2.13
26
Yamaha Motors
Cover Gasket61A-12414-A0-00
Required: 1
GASKET, COVER
Supersedes: 6J8-12414-A0-00
In stock
Only 5 remaining
$5.14
You save $0.91
$2.85
You save $0.50
28
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
29
Yamaha Motors
Exhaust Inner Cover6L2-41111-00-1S
Required: 1
INNER COVER, EXHAUST
Supersedes: 6L2-41111-00-9M
$32.38
You save $5.72
30
Yamaha Motors
Exhaust Inner Cover Gasket6L2-41112-A3-00
Required: 1
.GASKET, EXHAUST INNER COVER
Supersedes: 6L2-41112-A1-00
In stock
Only 1 remaining
$16.41
You save $2.89
31
Yamaha Motors
Exhaust Outer Cover6L2-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 6L2-41113-00-9M
$39.06
You save $6.89
32
Yamaha Motors
Hose Nipple676-11372-00-00
Required: 1
.NIPPLE, HOSE
In stock
Only 4 remaining
$13.18
You save $2.33
33
Yamaha Motors
Exhaust Outer Cover Gasket6L2-41114-A1-00
Required: 1
.GASKET, EXHAUST OUTER COVER
In stock
Only 2 remaining
$5.91
You save $1.04
34
Yamaha Motors
Bolt97080-06030-00
Required: 10
BOLT
Supersedes: 97095-06030-00
In stock
5+ in stock
$3.49
You save $0.62
In stock
5+ in stock
$2.42
You save $0.43
36
Yamaha Motors
Hose (L400)90445-10M43-00
Required: 1
HOSE (L330)
Supersedes: 90445-10M40-00
In stock
5+ in stock
$5.70
You save $1.00
37
Yamaha Motors
Upper Casing Gasket6L2-45113-A2-00
Required: 1
.GASKET, UPPER CASING
Supersedes: 6L2-45113-A1-00
$16.79
You save $2.96
38
Yamaha Motors
Spark Plug NGK BR7HS-10BR7-HS100-00-00
Required: 2
PLUG, SPARK (NGK B7HS-10)
Supersedes: NGK-B7HS1-00-00
In stock
5+ in stock
$4.00
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
