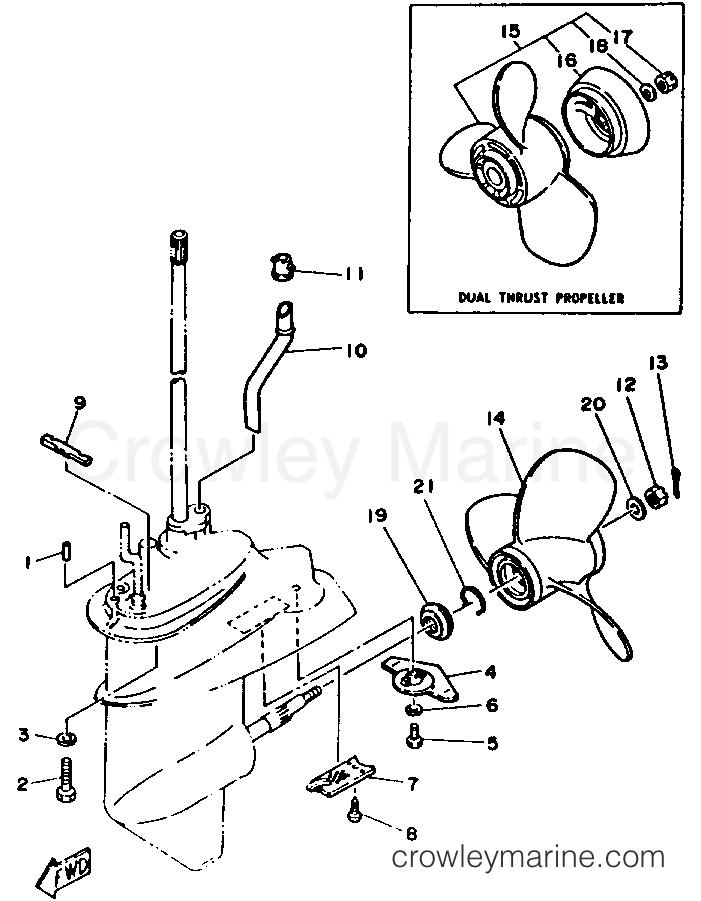

1993 Outboard 9.9hp - F9.9MLHR LOWER DRIVE 2 diagram
In stock
5+ in stock
$3.91
You save $0.69
2
Yamaha Motors
Bolt97095-08035-00
Required: 4
BOLT
Supersedes: 97090-08035-00
In stock
5+ in stock
$4.67
You save $0.82
3
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER, PLATE
In stock
5+ in stock
$2.29
You save $0.41
4
Yamaha Motors
Anode6E8-45251-02-00
Required: 1
ANODE
Supersedes: 6E8-45251-01-00
In stock
Only 2 remaining
$6.50
You save $1.15
5
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT, HEXAGON
Supersedes: 97395-06020-00
In stock
5+ in stock
$3.82
You save $0.68
6
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
7
Yamaha Motors
Water Inlet Cover6E7-45214-00-00
Required: 1
COVER, WATER INLET 1
$12.54
You save $2.21
8
Yamaha Motors
Screw98580-05012-00
Required: 1
.SCREW, PAN HEAD
In stock
Only 1 remaining
$6.79
You save $1.20
9
Yamaha Motors
DAMPER, SEAL682-45375-02-00
Required: 1
DAMPER, SEAL
Supersedes: 682-45375-01-00
In stock
Only 1 remaining
$5.70
You save $1.00
$14.19
You save $2.51
$22.74
You save $4.01
11
Yamaha Motors
WATER SEAL626-44365-02-00
Required: 1
DAMPER, WATER SEAL
Supersedes: 626-44365-01-00
$6.63
You save $1.17
In stock
Only 5 remaining
$6.08
You save $1.07
In stock
Only 2 remaining
$7.22
You save $1.27
13
Yamaha Motors
PIN. COTTER91490-30025-00
Required: 1
PIN. COTTER
Supersedes: 91490-30020-00
In stock
5+ in stock
$3.39
You save $0.60
14
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x9RH Aluminum683-45945-00-00
Required: 1
PROPELLER (3X9-1/4"X9"-J)
Supersedes: 683-45945-00-EL
$153.00
You save $27.00
14
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x9.75RH Aluminum683-45952-00-00
Required: 1
PROPELLER (3X9-1/4"X9-3/4"-J)
Supersedes: 683-45952-00-EL
$153.00
You save $27.00
14
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x8RH Aluminum683-45947-00-00
Required: 1
PROPELLER (3X9-1/4"X8"-J)
Supersedes: 683-45947-00-EL
$153.00
You save $27.00
14
Yamaha Motors
Propeller (3X9-1/4"X10-1/2"-J)683-45943-00-EL
Required: 1
PROPELLER (3X9-1/4"X10-1/2"-J)
$135.15
You save $23.85
15
Yamaha Motors
Propeller (3X9-3/4"X8"-J)683-W4591-02-EL
Required: 1
PROPELLER (3X9-3/4"X8"-J)
$143.65
You save $25.35
15
Yamaha Motors
Dual Thrust Prop - 3 Blade 9.75x6.5RH Aluminum683-W4592-02-00
Required: 1
PROPELLER (3X9-3/4""X6-1/2""-J)
Supersedes: 683-W4592-02-EL
$143.65
You save $25.35
16
Yamaha Motors
Deflector Ring6E7-45986-00-00
Required: 1
.RING, DEFLECTOR
$13.39
You save $2.36
In stock
Only 2 remaining
$10.58
You save $1.87
18
Yamaha Motors
Plate Washer90201-10M02-00
Required: 1
.WASHER, PLATE
In stock
Only 2 remaining
$3.91
You save $0.69
$25.24
You save $4.46
20
Yamaha Motors
Plate Washer90201-10M01-00
Required: 1
WASHER, PLATE
In stock
Only 1 remaining
$5.57
You save $0.98
In stock
Only 1 remaining
$15.30
You save $2.70
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
