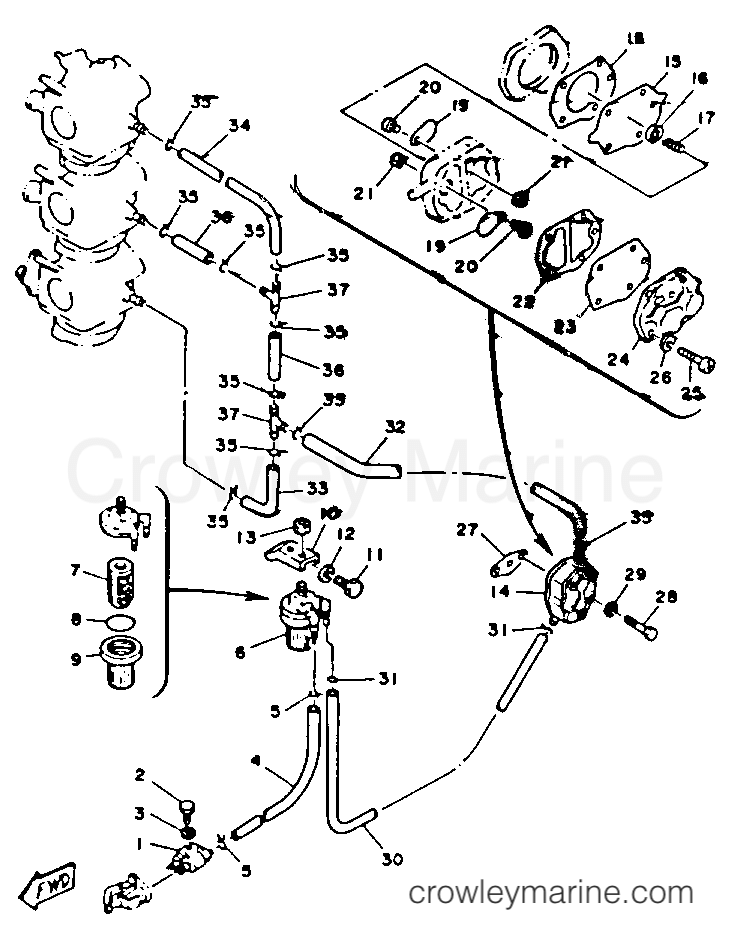

1993 Outboard 85hp - C85TLRR FUEL SYSTEM diagram
1
Yamaha Motors
FUEL PIPE JOINT COMP. 16G1-24304-11-00
Required: 1
FUEL PIPE JOINT COMP. 1
Supersedes: 6G1-24304-02-00
In stock
Only 5 remaining
$29.92
You save $5.28
2
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT, HEXAGON
Supersedes: 97395-06020-00
In stock
5+ in stock
$3.82
You save $0.68
3
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
4
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE
Supersedes: 90445-09078-00
In stock
5+ in stock
$10.62
You save $1.87
In stock
5+ in stock
$8.07
You save $1.42
6
Yamaha Motors
Filter Assembly61N-24560-10-00
Required: 1
FILTER ASSEMBLY
Supersedes: 655-24560-01-00
In stock
5+ in stock
$34.98
You save $6.17
7
Yamaha Motors
Filter Element6F5-24563-00-00
Required: 1
.ELEMENT, FILTER
In stock
5+ in stock
$17.34
You save $3.06
In stock
5+ in stock
$5.23
You save $0.92
$14.62
You save $2.58
10
Yamaha Motors
Filter Bracket 648-24566-01-00
Required: 1
BRACKET, FILTER
$14.11
You save $2.49
11
Yamaha Motors
BOLT, HEXAGON DEEP R97D95-06014-00
Required: 1
BOLT, HEXAGON
Supersedes: 97313-06014-00
In stock
5+ in stock
$1.32
You save $0.23
12
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
In stock
Only 1 remaining
$7.22
You save $1.27
14
Yamaha Motors
Fuel Pump Assembly692-24410-01-00
Required: 1
FUEL PUMP ASSEMBLY
Supersedes: 6A0-24410-05-00
In stock
5+ in stock
$45.94
You save $8.11
$21.12
You save $3.73
16
Yamaha Motors
Spring Seat648-24424-00-00
Required: 1
.SEAT, SPRING
$3.87
You save $0.68
17
Yamaha Motors
Diaphragm Spring648-24423-00-00
Required: 1
.SPRING, DIAPHRAGM
$4.51
You save $0.79
18
Yamaha Motors
Body Gasket648-24434-01-00
Required: 1
.GASKET, BODY
In stock
5+ in stock
$7.31
You save $1.29
19
Yamaha Motors
Check Valve62Y-24421-01-00
Required: 2
.VALVE, CHECK
Supersedes: 6A0-24421-01-00
In stock
5+ in stock
$13.00
You save $2.29
20
Yamaha Motors
Pan Head Screw6A0-14325-00-00
Required: 2
.SCREW, PAN HEAD
In stock
Only 3 remaining
$4.55
You save $0.80
In stock
Only 3 remaining
$1.57
You save $0.28
22
Yamaha Motors
GASKET, BODY 2648-24435-03-00
Required: 1
.GASKET, BODY 2
Supersedes: 648-24435-02-00
In stock
5+ in stock
$11.81
You save $2.09
In stock
Only 2 remaining
$9.27
You save $1.63
$15.00
You save $2.65
25
Yamaha Motors
98580-05530-0097890-05030-00
Required: 3
.SCREW, PAN HEAD
Supersedes: 98580-05530-00
In stock
5+ in stock
$4.04
You save $0.71
26
Yamaha Motors
Spring Washer92990-05100-00
Required: 3
.WASHER, SPRING
In stock
Only 5 remaining
$0.30
You save $0.05
27
Yamaha Motors
Fuel Pump Gasket650-24431-A0-00
Required: 1
GASKET, FUEL PUMP 1
In stock
5+ in stock
$2.98
You save $0.52
28
Yamaha Motors
Bolt97095-06040-00
Required: 2
BOLT
Supersedes: 97395-06040-00
In stock
5+ in stock
$2.38
You save $0.42
29
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
30
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L210)
Supersedes: 90445-09094-00
In stock
5+ in stock
$10.62
You save $1.87
In stock
5+ in stock
$8.07
You save $1.42
32
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L260)
Supersedes: 90445-09100-00
In stock
5+ in stock
$10.62
You save $1.87
In stock
5+ in stock
$14.41
You save $2.54
In stock
5+ in stock
$14.41
You save $2.54
In stock
5+ in stock
$8.07
You save $1.42
36
Yamaha Motors
Pipe 55RB-24315-00-00
Required: 2
HOSE (L30)
Supersedes: 90445-09220-00
$7.22
You save $1.27
37
Yamaha Motors
Joint Pipe688-24378-00-00
Required: 2
PIPE, JOINT 3
In stock
5+ in stock
$14.03
You save $2.47
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
