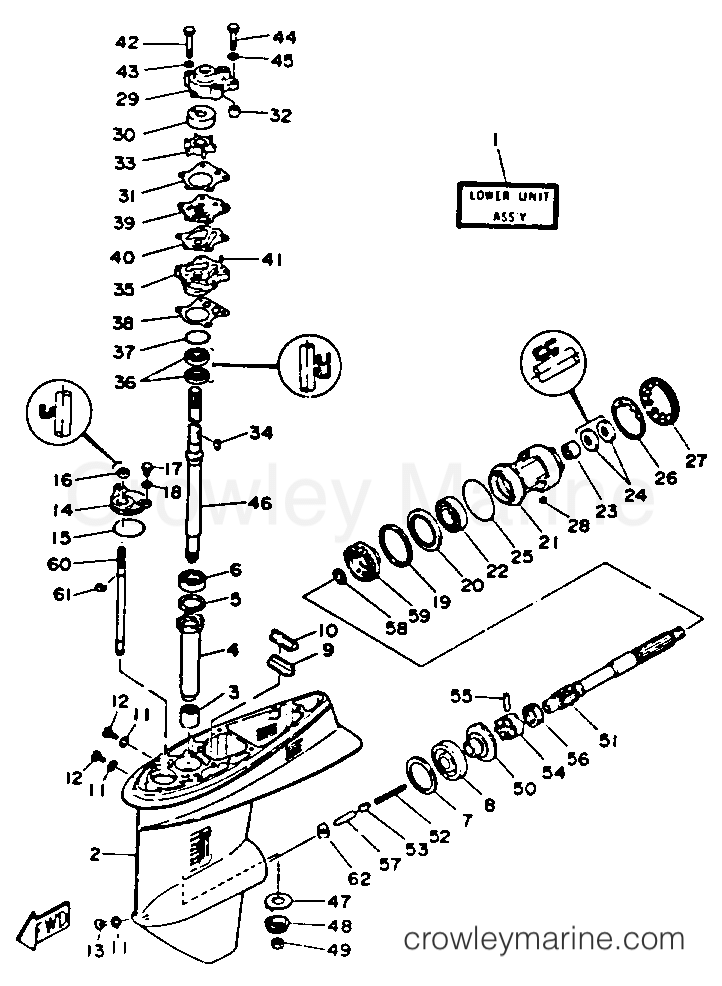

1993 Outboard 55hp - C55ELRR LOWER DRIVE 1 diagram
1
Yamaha Motors
Lower Unit Assembly697-45300-11-EK
Required: 1
LOWER UNIT ASSEMBLY
$1030.19
You save $69.91
2
Yamaha Motors
Obsolete Yamaha Part697-45301-02-EK
Required: 1
CASING, LOWER
Supersedes: 697-45311-00-EK
$554.71
You save $97.89
In stock
Only 1 remaining
$53.59
You save $13.40
4
Yamaha Motors
Drive Shaft Sleeve663-45536-00-00
Required: 1
SLEEVE, DRIVE SHAFT
$26.77
You save $4.73
5
Yamaha Motors
Shim (T:0.30MM)663-45587-40-00
Required: 1
SHIM (T:0.30MM)
Supersedes: 663-45587-01-30
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.18MM)663-45587-30-00
Required: 1
SHIM (T:0.18MM)
Supersedes: 663-45587-01-18
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.15MM)663-45587-20-00
Required: 1
SHIM (T:0.15MM)
Supersedes: 663-45587-01-15
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.12MM)663-45587-10-00
Required: 1
SHIM (T:0.12MM)
Supersedes: 663-45587-01-12
$2.84
You save $0.71
5
Yamaha Motors
Shim (T:0.10MM)663-45587-01-00
Required: 1
SHIM (T:0.10MM)
Supersedes: 663-45587-01-10
$2.84
You save $0.71
5
Yamaha Motors
Shim (T:0.40MM)663-45587-50-00
Required: 1
SHIM (T:0.40MM)
Supersedes: 663-45587-01-40
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.50MM)663-45587-60-00
Required: 1
SHIM (T:0.50MM)
Supersedes: 663-45587-01-50
In stock
Only 2 remaining
$2.84
You save $0.71
In stock
Only 1 remaining
$51.19
You save $12.80
7
Yamaha Motors
Shim (T:0.12MM)663-45567-10-00
Required: 1
SHIM (T:0.12MM)
Supersedes: 663-45567-01-12
$3.02
You save $0.53
7
Yamaha Motors
Shim (T:0.15MM)663-45567-20-00
Required: 1
SHIM (T:0.15MM)
Supersedes: 663-45567-01-15
$3.02
You save $0.53
7
Yamaha Motors
Shim (T:0.10MM)663-45567-01-00
Required: 1
SHIM (T:0.10MM)
Supersedes: 663-45567-01-10
$3.02
You save $0.53
7
Yamaha Motors
Shim (T:0.18MM)663-45567-30-00
Required: 1
SHIM (T:0.18MM)
Supersedes: 663-45567-01-18
$3.02
You save $0.53
7
Yamaha Motors
Shim (T:0.30MM)663-45567-40-00
Required: 1
SHIM (T:0.30MM)
Supersedes: 663-45567-01-30
$3.02
You save $0.53
7
Yamaha Motors
Shim (T:0.40MM)663-45567-50-00
Required: 1
SHIM (T:0.40MM)
Supersedes: 663-45567-01-40
$3.02
You save $0.53
7
Yamaha Motors
Shim (T:0.50MM)663-45567-60-00
Required: 1
SHIM (T:0.50MM)
Supersedes: 663-45567-01-50
$3.02
You save $0.53
$76.49
You save $13.50
9
Yamaha Motors
Seal Damper Guide663-45376-00-00
Required: 1
GUIDE, SEAL DAMPER
Supersedes: 663-45376-00-94
In stock
5+ in stock
$11.92
You save $2.98
$14.53
You save $2.56
11
Yamaha Motors
Tank Cap Gasket90430-08003-00
Required: 3
.GASKET
Supersedes: 90430-08020-00
In stock
5+ in stock
$1.24
You save $0.31
12
Yamaha Motors
Straight Screw Plug90340-08002-00
Required: 2
PLUG, STRAIGHT SCREW
Supersedes: 90340-08M04-00
In stock
5+ in stock
$10.20
You save $2.55
13
Yamaha Motors
Drain Plug688-45341-10-00
Required: 1
PLUG, DRAIN
Supersedes: 688-45341-00-00
In stock
5+ in stock
$10.16
You save $2.54
$39.31
You save $6.94
In stock
5+ in stock
$6.79
You save $1.70
In stock
5+ in stock
$6.72
You save $1.68
17
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
BOLT, HEX
Supersedes: 97395-06016-00
$2.21
You save $0.55
18
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
19
Yamaha Motors
Obsolete Yamaha Part663-45577-40-00
Required: 1
SHIM (T:0.30MM)
Supersedes: 663-45577-01-30
$5.31
You save $0.94
19
Yamaha Motors
Obsolete Yamaha Part663-45577-30-00
Required: 1
SHIM (T:0.18MM)
Supersedes: 663-45577-01-18
$3.02
You save $0.53
19
Yamaha Motors
Obsolete Yamaha Part663-45577-20-00
Required: 1
SHIM (T:0.15MM)
Supersedes: 663-45577-01-15
$3.02
You save $0.53
19
Yamaha Motors
Obsolete Yamaha Part663-45577-10-00
Required: 1
SHIM (T:0.12MM)
Supersedes: 663-45577-01-12
$3.02
You save $0.53
-50%
19
Yamaha Motors
Obsolete Yamaha Part663-45577-01-00
Required: 1
SHIM (T:0.10MM)
Supersedes: 663-45577-01-10
$3.13
You save $3.13
-50%
19
Yamaha Motors
Obsolete Yamaha Part663-45577-50-00
Required: 1
SHIM (T:0.40MM)
Supersedes: 663-45577-01-40
$1.77
You save $1.77
19
Yamaha Motors
Obsolete Yamaha Part663-45577-60-00
Required: 1
SHIM (T:0.50MM)
Supersedes: 663-45577-01-50
$5.00
You save $1.25
20
Yamaha Motors
Thrust Washer663-45576-00-00
Required: 1
WASHER, THRUST
$13.68
You save $3.42
21
Yamaha Motors
Bearing Housing663-45331-00-CA
Required: 1
HOUSING, BEARING
Supersedes: 663-45331-00-94
$106.38
You save $18.77
$53.59
You save $13.40
In stock
5+ in stock
$40.79
You save $10.20
In stock
Only 1 remaining
$6.04
You save $1.51
In stock
5+ in stock
$9.08
You save $2.27
$10.96
You save $2.74
27
Yamaha Motors
Nut697-45384-02-00
Required: 1
NUT
Supersedes: 697-45384-00-00
In stock
5+ in stock
$19.12
You save $4.78
28
Yamaha Motors
Straight Key90282-04010-00
Required: 1
KEY, STRAIGHT
In stock
Only 1 remaining
$11.36
You save $2.84
29
Yamaha Motors
Water Pump Housing663-44311-02-00
Required: 1
HOUSING, WATER PUMP
In stock
Only 1 remaining
$46.58
You save $8.22
30
Yamaha Motors
Cartridge Insert663-44322-00-00
Required: 1
.INSERT, CARTRIDGE
In stock
5+ in stock
$13.72
You save $3.43
31
Yamaha Motors
Water Pump Gasket663-44315-A0-00
Required: 1
GASKET, WATER PUMP
In stock
5+ in stock
$4.36
You save $1.09
32
Yamaha Motors
DAMPER, WATER SEAL 2663-44366-01-00
Required: 1
DAMPER, WATER SEAL 2
Supersedes: 663-44366-00-00
In stock
5+ in stock
$5.04
You save $1.26
33
Yamaha Motors
Impeller6H3-44352-00-00
Required: 1
IMPELLER
Supersedes: 697-44352-00-00
In stock
5+ in stock
$29.96
You save $7.49
34
Yamaha Motors
Woodruff Key90280-03M03-00
Required: 1
.KEY, WOODRUFF
In stock
5+ in stock
$6.08
You save $1.52
35
Yamaha Motors
Water Pump Housing663-44341-00-00
Required: 1
HOUSING, WATER PUMP
Supersedes: 663-44341-00-94
In stock
5+ in stock
$35.12
You save $8.78
In stock
5+ in stock
$10.96
You save $2.74
In stock
5+ in stock
$6.79
You save $1.70
38
Yamaha Motors
Water Pump Gasket663-44316-A0-00
Required: 1
GASKET, WATER PUMP
In stock
5+ in stock
$4.16
You save $1.04
39
Yamaha Motors
Cartridge Outer Plate663-44323-00-00
Required: 1
OUTER PLATE, CARTIDGE
In stock
5+ in stock
$13.20
You save $3.30
40
Yamaha Motors
Cartridge Gasket663-44324-A0-00
Required: 1
GASKET, CARTRIDGE
In stock
Only 1 remaining
$4.16
You save $1.04
In stock
Only 1 remaining
$2.84
You save $0.71
42
Yamaha Motors
Bolt97095-08055-00
Required: 2
BOLT
Supersedes: 97395-08055-00
In stock
Only 2 remaining
$5.09
You save $0.90
43
Yamaha Motors
Plate Washer92990-08600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.16
You save $0.54
44
Yamaha Motors
Bolt97095-08045-00
Required: 2
BOLT
Supersedes: 97395-08045-00
In stock
Only 4 remaining
$2.48
You save $0.62
45
Yamaha Motors
Plate Washer92990-08600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.16
You save $0.54
46
Yamaha Motors
Drive Shaft Assembly663-45510-11-00
Required: 1
DRIVE SHAFT ASSEMBLY
$405.75
You save $71.60
47
Yamaha Motors
Plain Bearing663-45552-00-00
Required: 1
BEARING, PLAIN
In stock
Only 1 remaining
$25.97
You save $4.58
$143.61
You save $25.34
$9.19
You save $2.30
$264.31
You save $46.64
51
Yamaha Motors
Propeller Shaft697-45611-00-00
Required: 1
SHAFT, PROPELLER
$251.17
You save $44.33
52
Yamaha Motors
Compression Spring90501-16233-00
Required: 1
SPRING, COMPRESSION
$6.16
You save $1.54
In stock
5+ in stock
$11.36
You save $2.84
$159.95
You save $28.80
55
Yamaha Motors
Straight Pin90250-06023-00
Required: 1
PIN, STRAIGHT
In stock
Only 2 remaining
$8.32
You save $2.08
56
Yamaha Motors
Cross Pin Ring663-45633-00-00
Required: 1
RING, CROSS PIN
In stock
Only 4 remaining
$2.56
You save $0.64
57
Yamaha Motors
Shift Plunger688-45635-00-00
Required: 1
PLUNGER, SHIFT
In stock
Only 4 remaining
$23.20
You save $5.80
58
Yamaha Motors
Plate Washer90201-22429-00
Required: 1
WASHER, PLATE
In stock
Only 1 remaining
$5.72
You save $1.43
$264.31
You save $46.64
In stock
Only 1 remaining
$41.82
You save $7.38
In stock
Only 4 remaining
$7.59
You save $1.90
In stock
5+ in stock
$26.56
You save $6.64
