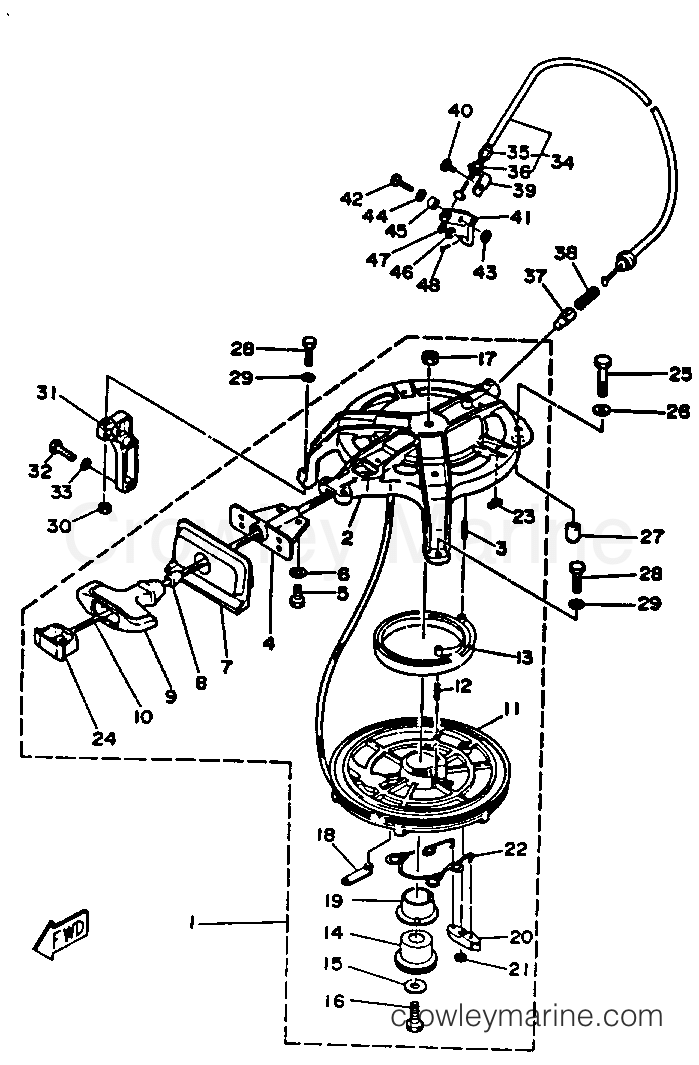

1993 Outboard 25hp - C25ELRR MANUAL STARTER diagram
1
Yamaha Motors
Starter Assembly689-15710-04-00
Required: 1
STARTER ASSEMBLY
Supersedes: 689-15710-03-00
$210.67
You save $37.18
2
Yamaha Motors
Starter Case676-15711-01-94
Required: 1
.CASE, STARTER
$111.94
You save $19.75
$2.72
You save $0.48
4
Yamaha Motors
Obsolete Yamaha Part689-15758-02-94
Required: 1
.GUIDE, ROPE
Supersedes: 689-15758-01-94
$27.16
You save $4.79
5
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
.BOLT, HEX
Supersedes: 97395-06016-00
$2.35
You save $0.41
6
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
.WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
7
Yamaha Motors
Rubber Seal689-15762-01-00
Required: 1
.SEAL, RUBBER 2
$32.00
You save $5.65
$8.37
You save $1.48
9
Yamaha Motors
Starter Handle689-15755-02-00
Required: 1
.HANDLE, STARTER
Supersedes: 689-15755-01-00
In stock
5+ in stock
$5.31
You save $0.94
10
Yamaha Motors
Rope Starter90580-50M01-00
Required: 1
.ROPE, STARTER
In stock
5+ in stock
$13.18
You save $2.33
11
Yamaha Motors
Sheave Drum676-15714-00-94
Required: 1
.DRUM, SHEAVE
$64.56
You save $11.39
$2.72
You save $0.48
13
Yamaha Motors
Spiral Spring90510-09M00-00
Required: 1
.SPRING, SPIRAL
In stock
Only 3 remaining
$29.50
You save $5.21
14
Yamaha Motors
Starter Shaft676-15717-00-00
Required: 1
.SHAFT, STARTER
$33.45
You save $5.90
15
Yamaha Motors
Plate Washer90201-08309-00
Required: 1
.WASHER, PLATE
$1.87
You save $0.33
In stock
5+ in stock
$8.07
You save $1.42
In stock
Only 1 remaining
$3.23
You save $0.57
$12.33
You save $2.18
$14.53
You save $2.56
In stock
5+ in stock
$12.07
You save $2.13
In stock
Only 5 remaining
$3.02
You save $0.53
22
Yamaha Motors
Drive Pawl Spring676-15705-00-00
Required: 1
.SPRING, DRIVE PAWL
$13.69
You save $2.42
$9.65
You save $1.70
$4.55
You save $0.80
25
Yamaha Motors
Bolt97095-08035-00
Required: 1
BOLT
Supersedes: 97090-08035-00
In stock
5+ in stock
$4.67
You save $0.82
26
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.29
You save $0.41
27
Yamaha Motors
Dowel Pin99530-12016-00
Required: 1
PIN, DOWEL
Supersedes: 99510-12016-00
In stock
Only 2 remaining
$4.16
You save $0.73
$2.57
You save $0.45
29
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
In stock
5+ in stock
$4.08
You save $0.72
In stock
Only 1 remaining
$14.75
You save $2.60
32
Yamaha Motors
Bolt90101-06M27-00
Required: 2
BOLT
Supersedes: 97313-06025-00
$2.85
You save $0.50
33
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
34
Yamaha Motors
Starter Stop Cable Complete656-15770-00-00
Required: 1
CABLE COMP., STARTER STOP
$25.67
You save $4.53
$8.25
You save $1.46
36
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 2
.NUT, HEXAGON
In stock
5+ in stock
$4.08
You save $0.72
37
Yamaha Motors
Starter Stop Plunger656-15748-00-00
Required: 1
PLUNGER, STARTER STOP
In stock
Only 5 remaining
$11.43
You save $2.02
38
Yamaha Motors
Compression Spring90501-10227-00
Required: 1
SPRING, COMPRESSION
In stock
Only 1 remaining
$6.54
You save $1.16
$8.97
You save $1.58
40
Yamaha Motors
Bolt97085-06010-00
Required: 1
BOLT, HEXAGON
Supersedes: 97313-06010-00
In stock
Only 5 remaining
$1.27
You save $0.22
41
Yamaha Motors
Starter Stop Link656-15749-00-00
Required: 1
LINK, STARTER STOP
$16.79
You save $2.96
42
Yamaha Motors
Hexagon Bolt97313-06020-00
Required: 1
BOLT, HEXAGON
$3.82
You save $0.68
43
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
$5.70
You save $1.00
45
Yamaha Motors
COLLAR90387-06761-00
Required: 1
COLLAR
Supersedes: 90387-06568-00
$8.92
You save $1.57
$4.29
You save $0.76
47
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER, PLATE
In stock
Only 4 remaining
$0.68
You save $0.12
$2.29
You save $0.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
