All diagrams for this model

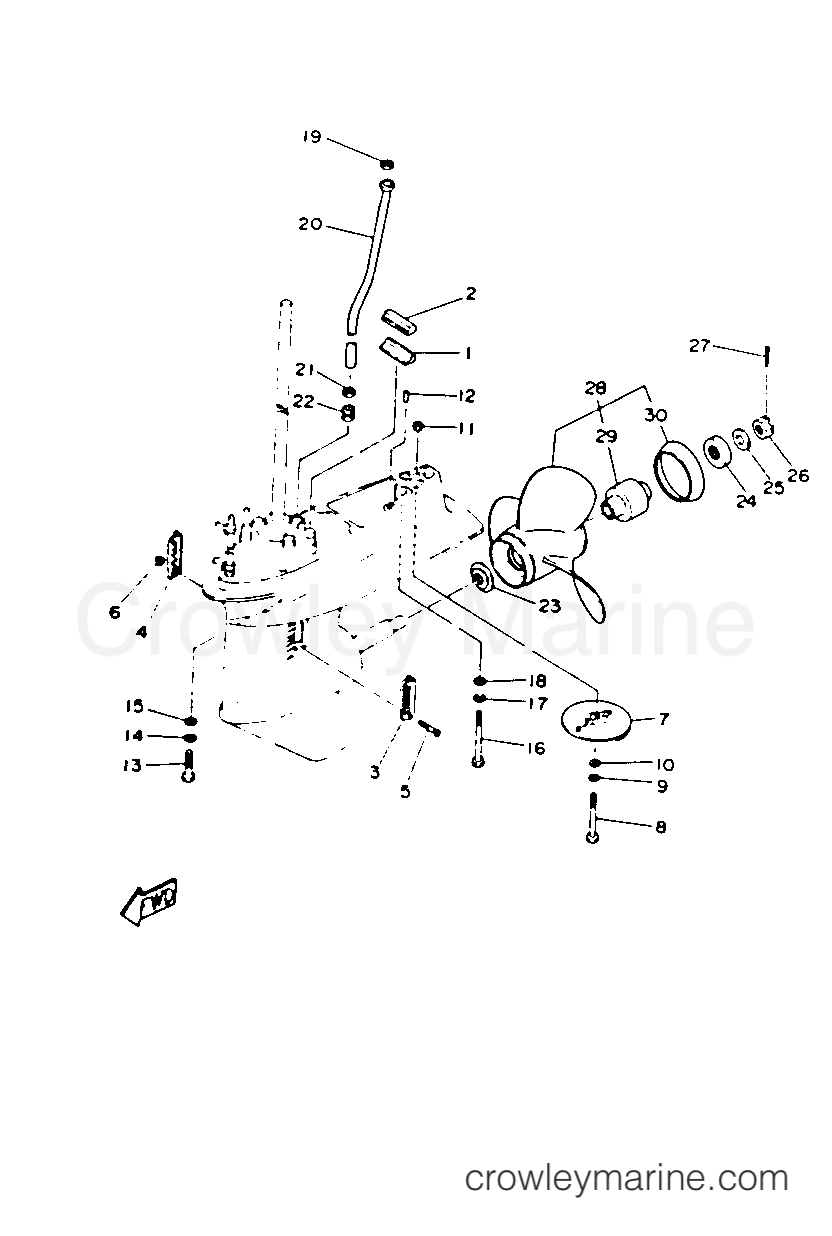

1991 Outboard 40hp - 40MJHP LOWER DRIVE 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 40MJHP - LOWER DRIVE 2
Change View:
Screw (M8 X 40)
5
Yamaha Motors
Screw (M8 X 40)98780-05535-00
Required: 1
SCREW, OVAL HEAD
Supersedes: 98680-05535-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Hexagon Bolt
8
Yamaha Motors
Hexagon Bolt97575-08675-00
Required: 1
BOLT
Supersedes: 97375-08075-00
Cross Ship
Leaves in 2-5 days
$9.30
$7.91
You save $1.40
More details
Spring Washer
9
Yamaha Motors
Spring Washer92990-08100-00
Required: 1
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$5.60
$4.76
You save $0.84
More details
Spring Washer
17
Yamaha Motors
Spring Washer92990-08100-00
Required: 1
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$5.60
$4.76
You save $0.84
More details
WATER TUBE
20
Yamaha Motors
WATER TUBE6H4-44361-00-00
Required: 1
TUBE, WATER
Cross Ship
Leaves in 2-5 days
$27.75
$23.59
You save $4.16
More details
WATER TUBE
20
Yamaha Motors
WATER TUBE6H4-44361-10-00
Required: 1
TUBE, WATER
Cross Ship
Leaves in 2-5 days
$31.65
$26.90
You save $4.75
More details
Washer
25
Yamaha Motors
Washer92990-16200-00
Required: 1
WASHER, PLAIN
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Painted Stainless Steel Prop - 3 Blade 11.75x12RH Stainless Steel
28
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 11.75x12RH Stainless Steel663-45970-60-00
Required: 1
PROPELLER (3X11-3/4"X12"-G)
Supersedes: 663-45970-60-98
Cross Ship
Leaves in 2-5 days
$575.00
$488.75
You save $86.25
More details
Painted Stainless Steel Prop - 3 Blade 12x11RH Stainless Steel
28
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 12x11RH Stainless Steel663-45972-60-00
Required: 1
PROPELLER (3X12"X11"-G)
Supersedes: 663-45972-60-98
Cross Ship
Leaves in 2-5 days
$575.00
$488.75
You save $86.25
More details
Painted Stainless Steel Prop - 3 Blade 11.5x13RH Stainless Steel
28
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 11.5x13RH Stainless Steel663-45974-60-00
Required: 1
PROPELLER (3X11-1/2"X13"-G)
Supersedes: 663-45974-60-98
Cross Ship
Leaves in 2-5 days
$575.00
$488.75
You save $86.25
More details
Aluminum Prop - 3 Blade 11.25x14RH Aluminum
28
Yamaha Motors
Aluminum Prop - 3 Blade 11.25x14RH Aluminum663-45958-01-00
Required: 1
PROPELLER (3X11-1/4"X14"-G)
Supersedes: 663-45958-01-EL
Cross Ship
Leaves in 2-5 days
$186.00
$158.10
You save $27.90
More details
Aluminum Prop - 3 Blade 11.63x11RH Aluminum
28
Yamaha Motors
Aluminum Prop - 3 Blade 11.63x11RH Aluminum69W-45947-00-00
Required: 1
PROPELLER (3X11-5/8"X11"-G)
Supersedes: 663-45947-02-EL
Cross Ship
Leaves in 2-5 days
$186.00
$158.10
You save $27.90
More details
Propeller (3X10-3/4"X17"-G)
28
Yamaha Motors
Propeller (3X10-3/4"X17"-G)663-45941-01-EL
Required: 1
PROPELLER (3X10-3/4"X17"-G)
Cross Ship
Leaves in 2-5 days
$186.00
$158.10
You save $27.90
More details
Aluminum Prop - 3 Blade 10.75x16RH Aluminum
28
Yamaha Motors
Aluminum Prop - 3 Blade 10.75x16RH Aluminum663-45949-01-00
Required: 1
PROPELLER (3X10-3/4"X16"-G)
Supersedes: 663-45949-01-EL
Cross Ship
Leaves in 2-5 days
$186.00
$158.10
You save $27.90
More details
Aluminum Prop - 3 Blade 12.25x9RH Aluminum
28
Yamaha Motors
Aluminum Prop - 3 Blade 12.25x9RH Aluminum663-45956-01-00
Required: 1
PROPELLER (3X12-1/4"X9"-G)
Supersedes: 663-45956-01-EL
Cross Ship
Leaves in 2-5 days
$186.00
$158.10
You save $27.90
More details
Rubber Propeller Damper
29
Yamaha Motors
Rubber Propeller Damper663-45981-10-00
Required: 1
DAMPER, RUBBER PROP
Cross Ship
Leaves in 2-5 days
$39.75
$33.79
You save $5.96
More details
Reflector Ring
30
Yamaha Motors
Reflector Ring663-45986-00-00
Required: 1
RING, DEFLECTOR
Supersedes: 663-45986-00-94
Cross Ship
Leaves in 2-5 days
$9.50
$8.07
You save $1.43
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
