All diagrams for this model

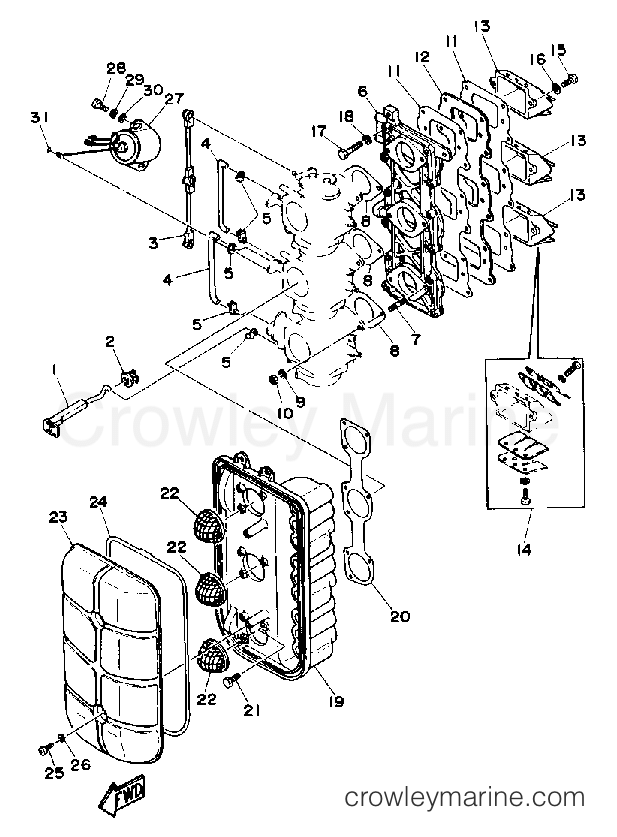

1990 Outboard 85hp - CV85ELD INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CV85ELD - INTAKE
Change View:
Choke Rod 1
1
Yamaha Motors
Choke Rod 1692-41256-01-00
Required: 1
ROD, CHOKE 1
Supersedes: 692-41256-00-00
Cross Ship
Leaves in 2-5 days
$25.65
$21.80
You save $3.85
More details
Choke Rod
4
Yamaha Motors
Choke Rod688-41257-01-00
Required: 2
ROD, CHOKE 2
Cross Ship
Leaves in 2-5 days
$6.75
$5.74
You save $1.01
More details
Manifold
6
Yamaha Motors
Manifold688-13641-01-00
Required: 1
MANIFOLD 1
Supersedes: 688-13641-00-94
Cross Ship
Leaves in 2-5 days
$79.20
$67.32
You save $11.88
More details
Gasket
8
Yamaha Motors
Gasket688-14198-A2-00
Required: 3
GASKET
Supersedes: 688-14198-00-00
Cross Ship
Leaves in 2-5 days
$6.60
$5.61
You save $0.99
More details
Reed Valve Plate
12
Yamaha Motors
Reed Valve Plate688-13624-00-00
Required: 1
PLATE,REED VALVE
Cross Ship
Leaves in 2-5 days
$17.70
$15.04
You save $2.66
More details
Reed Valve Assembly
13
Yamaha Motors
Reed Valve Assembly688-13610-00-00
Required: 3
REED VALVE ASSY
Cross Ship
Leaves in 2-5 days
$98.30
$83.55
You save $14.75
More details
Pan Head Screw
15
Yamaha Motors
Pan Head Screw98580-05020-00
Required: 6
.SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$1.50
$1.27
You save $0.23
More details
Cover
19
Yamaha Motors
Cover688-14417-00-94
Required: 1
COVER 1
Cross Ship
Leaves in 2-5 days
$102.90
$87.47
You save $15.44
More details
Gasket
20
Yamaha Motors
Gasket688-14483-A0-00
Required: 1
GASKET
Supersedes: 688-14483-00-00
Cross Ship
Leaves in 2-5 days
$6.30
$5.35
You save $0.95
More details
Carburetor Cap
22
Yamaha Motors
Carburetor Cap688-14481-00-00
Required: 3
CAP, CARBURETOR
Cross Ship
Leaves in 2-5 days
$8.85
$7.52
You save $1.33
More details
Cover 2
23
Yamaha Motors
Cover 2688-14418-00-00
Required: 1
COVER 2
Cross Ship
Leaves in 2-5 days
$32.10
$27.29
You save $4.82
More details
Solenoid Coil Assembly
27
Yamaha Motors
Solenoid Coil Assembly688-86110-01-00
Required: 1
SOLENOID COIL ASSEMBLY
Cross Ship
Leaves in 2-5 days
$115.60
$98.26
You save $17.34
More details
Plain Washer
30
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
.WASHER, PLAIN
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
