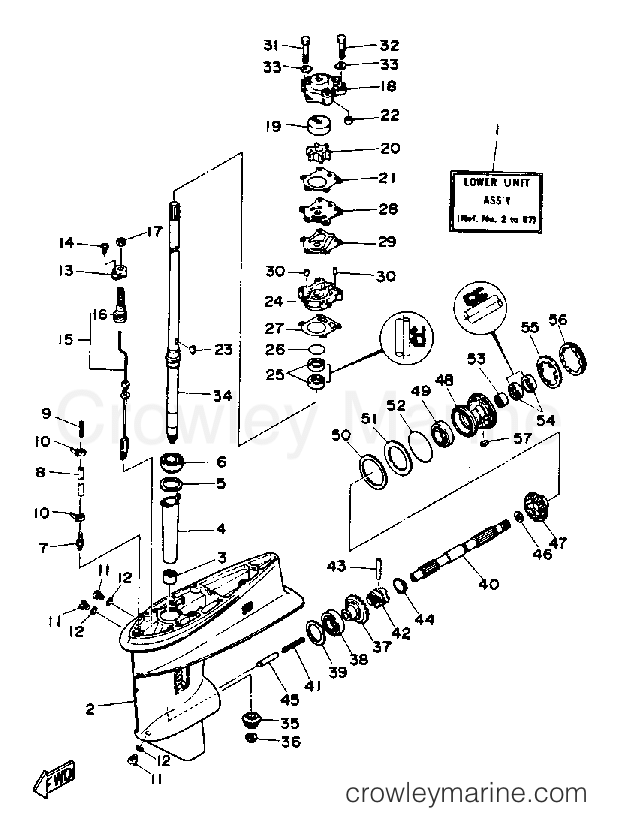

1990 Outboard 30hp - 30LD LOWER DRIVE 1 diagram
1
Yamaha Motors
Lower Unit Assembly6J8-45300-14-EK
Required: 1
LOWER UNIT ASSEMBLY
$1743.22
You save $307.63
1
Yamaha Motors
Lower Unit Assembly6J8-45300-04-EK
Required: 1
LOWER UNIT ASSEMBLY
$1383.67
You save $244.18
2
Yamaha Motors
Obsolete Yamaha Part6J8-45301-02-EK
Required: 1
LOWER CASING
Supersedes: 6J8-45301-01-EK
$659.09
You save $116.31
$52.69
You save $9.30
4
Yamaha Motors
Drive Shaft Sleeve6J8-45536-00-00
Required: 1
SLEEVE, DRIVE SHAFT
$20.44
You save $3.61
5
Yamaha Motors
Shim (T:0.12MM)663-45587-10-00
Required: 1
SHIM (T:0.12MM)
Supersedes: 663-45587-01-12
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.10MM)663-45587-01-00
Required: 1
SHIM (T:0.10MM)
Supersedes: 663-45587-01-10
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.15MM)663-45587-20-00
Required: 1
SHIM (T:0.15MM)
Supersedes: 663-45587-01-15
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.50MM)663-45587-60-00
Required: 1
SHIM (T:0.50MM)
Supersedes: 663-45587-01-50
In stock
Only 2 remaining
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.40MM)663-45587-50-00
Required: 1
SHIM (T:0.40MM)
Supersedes: 663-45587-01-40
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.30MM)663-45587-40-00
Required: 1
SHIM (T:0.30MM)
Supersedes: 663-45587-01-30
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.18MM)663-45587-30-00
Required: 1
SHIM (T:0.18MM)
Supersedes: 663-45587-01-18
$3.02
You save $0.53
In stock
Only 1 remaining
$54.39
You save $9.60
In stock
5+ in stock
$9.18
You save $1.62
8
Yamaha Motors
Hose (L250)90445-07MF2-00
Required: 1
HOSE (L120)
Supersedes: 90445-07ME9-00
In stock
5+ in stock
$3.53
You save $0.62
8
Yamaha Motors
Hose90445-07M19-00
Required: 1
HOSE (L200)
Supersedes: 90445-07M31-00
In stock
Only 1 remaining
$8.92
You save $1.57
In stock
Only 2 remaining
$9.69
You save $1.71
10
Yamaha Motors
Clamp90465-10098-00
Required: 2
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
11
Yamaha Motors
Straight Screw Plug90340-08002-00
Required: 3
PLUG, STRAIGHT SCREW
Supersedes: 90340-08M04-00
In stock
5+ in stock
$10.84
You save $1.91
12
Yamaha Motors
Tank Cap Gasket90430-08003-00
Required: 3
.GASKET
Supersedes: 90430-08020-00
In stock
5+ in stock
$1.32
You save $0.23
In stock
5+ in stock
$7.95
You save $1.40
14
Yamaha Motors
Tapping Screw97780-50610-00
Required: 1
SCREW, PAN HEAD
Supersedes: 97780-50110-00
In stock
5+ in stock
$8.07
You save $1.42
In stock
Only 2 remaining
$66.43
You save $11.72
$70.04
You save $12.36
16
Yamaha Motors
Shift Rod Boot682-44147-00-00
Required: 1
.BOOT, SHIFT ROD
In stock
5+ in stock
$12.03
You save $2.12
16
Yamaha Motors
Shift Rod Boot682-44147-00-00
Required: 1
.BOOT, SHIFT ROD
In stock
5+ in stock
$12.03
You save $2.12
In stock
Only 4 remaining
$8.07
You save $1.42
18
Yamaha Motors
Water Pump Housing6J8-44311-00-00
Required: 1
HOUSING, WATER PUMP
In stock
5+ in stock
$11.77
You save $2.08
18
Yamaha Motors
Water Pump Housing6J8-44311-00-00
Required: 1
HOUSING, WATER PUMP
In stock
5+ in stock
$11.77
You save $2.08
19
Yamaha Motors
Cartridge Insert663-44322-00-00
Required: 1
.INSERT, CARTRIDGE
In stock
5+ in stock
$14.58
You save $2.57
In stock
5+ in stock
$29.37
You save $5.18
21
Yamaha Motors
Water Pump Gasket663-44315-A0-00
Required: 1
GASKET, WATER PUMP
Supersedes: 663-44315-00-00
In stock
5+ in stock
$4.63
You save $0.82
22
Yamaha Motors
DAMPER, WATER SEAL 2663-44366-01-00
Required: 1
DAMPER, WATER SEAL 2
Supersedes: 663-44366-00-00
In stock
5+ in stock
$5.35
You save $0.95
23
Yamaha Motors
Woodruff Key90280-03024-00
Required: 1
.KEY, WOODRUFF
In stock
5+ in stock
$6.21
You save $1.10
24
Yamaha Motors
Water Pump Housing663-44341-00-00
Required: 1
HOUSING, WATER PUMP
Supersedes: 663-44341-00-94
In stock
5+ in stock
$37.31
You save $6.59
In stock
5+ in stock
$11.65
You save $2.05
In stock
5+ in stock
$7.22
You save $1.27
27
Yamaha Motors
Water Pump Gasket663-44316-A0-00
Required: 1
GASKET, WATER PUMP
Supersedes: 663-44316-00-00
In stock
5+ in stock
$4.42
You save $0.78
28
Yamaha Motors
Cartridge Outer Plate663-44323-00-00
Required: 1
OUTER PLATE, CARTIDGE
In stock
5+ in stock
$14.03
You save $2.47
29
Yamaha Motors
Cartridge Gasket663-44324-A0-00
Required: 1
OIL SEAL
Supersedes: 663-44324-00-00
In stock
Only 1 remaining
$4.42
You save $0.78
In stock
Only 1 remaining
$3.02
You save $0.53
31
Yamaha Motors
Bolt97095-08050-00
Required: 2
BOLT
Supersedes: 97395-08050-00
$5.09
You save $0.90
32
Yamaha Motors
Bolt97095-08040-00
Required: 2
BOLT
Supersedes: 97395-08040-00
In stock
Only 2 remaining
$3.87
You save $0.68
$5.23
You save $0.92
34
Yamaha Motors
Complete Drive Shaft6J8-45501-00-00
Required: 1
DRIVE SHAFT COMP.
$264.31
You save $46.64
34
Yamaha Motors
Complete Drive Shaft6J8-45501-10-00
Required: 1
DRIVE SHAFT COMP.
$278.97
You save $49.23
In stock
Only 1 remaining
$89.04
You save $15.71
In stock
Only 1 remaining
$11.89
You save $2.10
In stock
Only 1 remaining
$119.77
You save $21.14
$56.94
You save $10.05
39
Yamaha Motors
Obsolete Yamaha Part6J8-45567-01-00
Required: 1
SHIM (T:0.10MM)
Supersedes: 6J8-45567-01-10
In stock
Only 1 remaining
$2.85
You save $0.50
39
Yamaha Motors
Obsolete Yamaha Part24W-17537-60-00
Required: 1
SHIM (T:0.50MM)
Supersedes: 6J8-45567-01-50
In stock
Only 2 remaining
$3.19
You save $0.56
39
Yamaha Motors
Obsolete Yamaha Part24W-17537-50-00
Required: 1
SHIM (T:0.40MM)
Supersedes: 6J8-45567-01-40
In stock
Only 1 remaining
$7.22
You save $1.27
39
Yamaha Motors
Obsolete Yamaha Part24W-17537-40-00
Required: 1
SHIM (T:0.30MM)
Supersedes: 6J8-45567-01-30
In stock
Only 1 remaining
$3.19
You save $0.56
39
Yamaha Motors
Obsolete Yamaha Part6J8-45567-30-00
Required: 1
SHIM (T:0.18MM)
Supersedes: 6J8-45567-01-18
$2.42
You save $0.43
39
Yamaha Motors
Obsolete Yamaha Part24W-17537-20-00
Required: 1
SHIM (T:0.15MM)
Supersedes: 6J8-45567-01-15
$7.22
You save $1.27
39
Yamaha Motors
Obsolete Yamaha Part6J8-45567-10-00
Required: 1
SHIM (T:0.12MM)
Supersedes: 6J8-45567-01-12
$3.02
You save $0.53
40
Yamaha Motors
Propeller Shaft6J8-45611-00-00
Required: 1
SHAFT, PROPELLER
$172.25
You save $30.40
41
Yamaha Motors
Compression Spring90501-10065-00
Required: 1
SPRING, COMPRESSION
In stock
5+ in stock
$6.54
You save $1.16
42
Yamaha Motors
Dog Clutch6J8-45631-01-00
Required: 1
CLUTCH, DOG
Supersedes: 6J8-45631-00-00
In stock
Only 1 remaining
$58.78
You save $10.37
43
Yamaha Motors
Straight Pin90250-05010-00
Required: 1
PIN, STRAIGHT
In stock
Only 3 remaining
$4.72
You save $0.83
44
Yamaha Motors
Cross Pin Ring648-45633-10-00
Required: 1
RING, CROSS PIN
Supersedes: 648-45633-00-00
$7.14
You save $1.26
45
Yamaha Motors
Shift Plunger6J8-45635-00-00
Required: 1
PLUNGER, SHIFT
$9.69
You save $1.71
46
Yamaha Motors
Plate Washer90201-20417-00
Required: 1
WASHER, PLATE
In stock
Only 2 remaining
$6.08
You save $1.07
$97.54
You save $17.21
48
Yamaha Motors
Bearing Housing689-45331-01-00
Required: 1
HOUSING, BEARING
Supersedes: 689-45331-01-94
$55.08
You save $9.72
In stock
Only 1 remaining
$44.19
You save $7.80
50
Yamaha Motors
Obsolete Yamaha Part664-45577-60-00
Required: 1
SHIM (T:0.50MM)
Supersedes: 664-45577-01-50
$5.31
You save $0.94
50
Yamaha Motors
Obsolete Yamaha Part664-45577-01-00
Required: 1
SHIM (T:0.10MM)
Supersedes: 664-45577-01-10
In stock
Only 1 remaining
$5.31
You save $0.94
50
Yamaha Motors
Obsolete Yamaha Part664-45577-20-00
Required: 1
SHIM (T:0.15MM)
Supersedes: 664-45577-01-15
$5.31
You save $0.94
50
Yamaha Motors
Obsolete Yamaha Part664-45577-40-00
Required: 1
SHIM (T:0.30MM)
Supersedes: 664-45577-01-30
$5.31
You save $0.94
50
Yamaha Motors
Obsolete Yamaha Part664-45577-10-00
Required: 1
SHIM (T:0.12MM)
Supersedes: 664-45577-01-12
$5.31
You save $0.94
50
Yamaha Motors
Obsolete Yamaha Part664-45577-30-00
Required: 1
SHIM (T:0.18MM)
Supersedes: 664-45577-01-18
$3.74
You save $0.66
50
Yamaha Motors
Obsolete Yamaha Part664-45577-50-00
Required: 1
SHIM (T:0.40MM)
Supersedes: 664-45577-01-40
$3.74
You save $0.66
51
Yamaha Motors
Thrust Washer664-45576-00-00
Required: 1
WASHER, THRUST
$14.11
You save $2.49
In stock
Only 3 remaining
$6.54
You save $1.16
In stock
Only 1 remaining
$42.20
You save $7.45
In stock
5+ in stock
$6.08
You save $1.07
In stock
Only 1 remaining
$8.59
You save $1.52
56
Yamaha Motors
Nut664-45384-02-00
Required: 1
NUT
Supersedes: 664-45384-00-00
In stock
Only 3 remaining
$20.44
You save $3.61
57
Yamaha Motors
Straight Key90282-04010-00
Required: 1
KEY, STRAIGHT
In stock
Only 1 remaining
$12.07
You save $2.13
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
