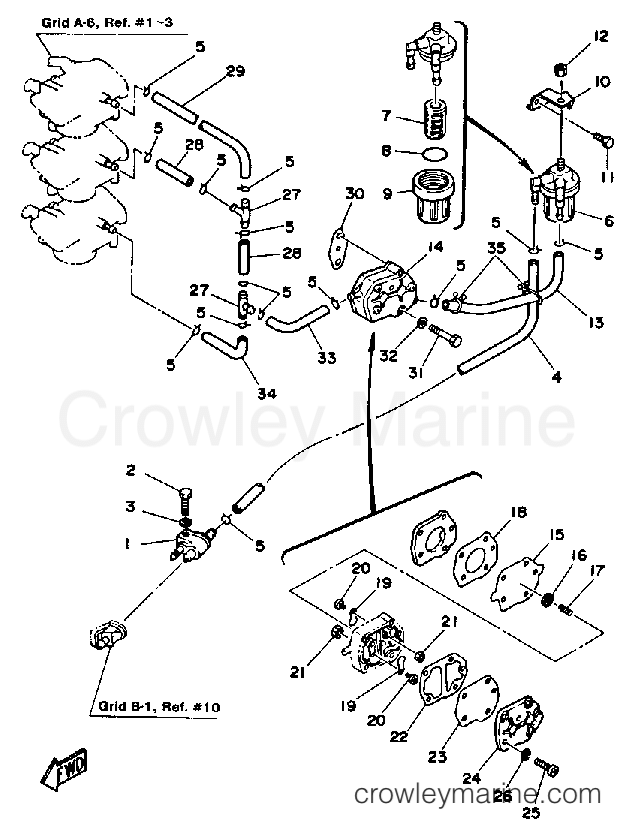

1987 Outboard 50hp - PRO50LH FUEL SYSTEM diagram
1
Yamaha Motors
FUEL PIPE JOINT COMP. 16G1-24304-11-00
Required: 1
FUEL PIPE JOINT COMP. 1
Supersedes: 6G1-24304-02-00
In stock
Only 5 remaining
$28.16
You save $7.04
2
Yamaha Motors
Bolt90101-06M27-00
Required: 1
BOLT
Supersedes: 97313-06025-00
$2.68
You save $0.67
3
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
In stock
Only 4 remaining
$5.56
You save $1.39
In stock
5+ in stock
$7.59
You save $1.90
6
Yamaha Motors
Filter Assembly61N-24560-10-00
Required: 1
FILTER ASSEMBLY
Supersedes: 655-24560-01-00
In stock
5+ in stock
$32.92
You save $8.23
7
Yamaha Motors
Filter Element6F5-24563-00-00
Required: 1
.ELEMENT, FILTER
In stock
5+ in stock
$16.32
You save $4.08
In stock
5+ in stock
$4.92
You save $1.23
$14.62
You save $2.58
10
Yamaha Motors
Filter Bracket 6H4-24566-01-00
Required: 1
BRACKET, FILTER
$5.74
You save $1.01
11
Yamaha Motors
.BOLT97313-06012-00
Required: 1
BOLT
Supersedes: 97013-06012-00
In stock
Only 2 remaining
$1.68
You save $0.42
In stock
Only 1 remaining
$3.04
You save $0.76
In stock
Only 1 remaining
$6.32
You save $1.58
14
Yamaha Motors
Fuel Pump Assembly692-24410-01-00
Required: 1
FUEL PUMP ASSEMBLY
Supersedes: 6A0-24410-05-00
In stock
5+ in stock
$43.24
You save $10.81
$19.88
You save $4.97
16
Yamaha Motors
Spring Seat648-24424-00-00
Required: 1
.SEAT, SPRING
$3.87
You save $0.68
17
Yamaha Motors
Diaphragm Spring648-24423-00-00
Required: 1
.SPRING, DIAPHRAGM
$4.51
You save $0.79
18
Yamaha Motors
Body Gasket648-24434-01-00
Required: 1
.GASKET, BODY
In stock
5+ in stock
$6.88
You save $1.72
19
Yamaha Motors
Check Valve62Y-24421-01-00
Required: 2
.VALVE, CHECK
Supersedes: 6A0-24421-01-00
In stock
5+ in stock
$12.24
You save $3.06
20
Yamaha Motors
Pan Head Screw90147-03M00-00
Required: 2
.SCREW, PAN HEAD
$2.21
You save $0.39
$3.61
You save $0.64
22
Yamaha Motors
GASKET, BODY 2648-24435-03-00
Required: 1
.GASKET, BODY 2
Supersedes: 648-24435-02-00
In stock
5+ in stock
$11.12
You save $2.78
In stock
Only 2 remaining
$8.72
You save $2.18
$15.24
You save $3.81
25
Yamaha Motors
Pan Head Screw(98503-05028-00)
Required: 3
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
Price unavailable
26
Yamaha Motors
Spring Washer92990-05100-00
Required: 3
.WASHER, SPRING
In stock
Only 5 remaining
$0.28
You save $0.07
27
Yamaha Motors
Joint Pipe688-24378-00-00
Required: 2
PIPE, JOINT 3
In stock
5+ in stock
$13.20
You save $3.30
28
Yamaha Motors
Hose (L180)90445-09M00-00
Required: 2
HOSE (L43)
Supersedes: 90445-09057-00
$5.91
You save $1.04
$5.36
You save $1.34
30
Yamaha Motors
Fuel Pump Gasket650-24431-A0-00
Required: 1
GASKET, FUEL PUMP 1
In stock
5+ in stock
$2.80
You save $0.70
31
Yamaha Motors
Bolt97095-06040-00
Required: 2
BOLT, HEXAGON
Supersedes: 97313-06040-00
In stock
5+ in stock
$2.24
You save $0.56
32
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
33
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L80)
Supersedes: 90445-09063-00
In stock
5+ in stock
$9.99
You save $2.50
In stock
5+ in stock
$13.56
You save $3.39
In stock
Only 1 remaining
$8.39
You save $2.10
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
