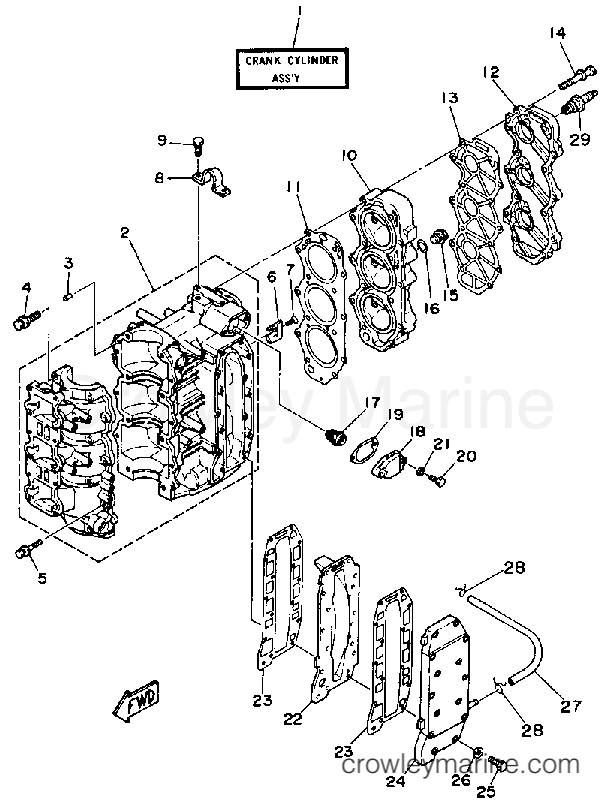

1987 Outboard 50hp - PRO50LH CRANKCASE CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors PRO50LH - CRANKCASE CYLINDER
Change View:
Obsolete Yamaha Part
1
Yamaha Motors
Obsolete Yamaha Part6H4-W0090-13-4D
Required: 1
CRANK-CYLINDER. ASSEMBLY. (REF.# 2~28 & GRID A-4, REF. #)
Supersedes: 6H4-W0090-13-EK
Cross Ship
Leaves in 2-5 days
$2988.25
$2540.01
You save $448.24
More details
Crankcase Assembly
2
Yamaha Motors
Crankcase Assembly 6H4-15100-19-94
Required: 1
CRANKCASE ASSEMBLY
Cross Ship
Leaves in 2-5 days
$2132.30
$1812.45
You save $319.85
More details
Engine Hanger
8
Yamaha Motors
Engine Hanger6H4-11119-01-00
Required: 1
HANGER, ENGINE
Supersedes: 6H4-11119-00-00
Cross Ship
Leaves in 2-5 days
$12.75
$10.84
You save $1.91
More details
Cylinder Head
10
Yamaha Motors
Cylinder Head 6H4-11111-01-94
Required: 1
HEAD, CYLINDER 1
Cross Ship
Leaves in 2-5 days
$233.60
$198.56
You save $35.04
More details
Cylinder Head Cover
12
Yamaha Motors
Cylinder Head Cover6H4-11191-01-1S
Required: 1
COVER, CYLINDER HEAD 1
Supersedes: 6H4-11191-01-9M
Cross Ship
Leaves in 2-5 days
$59.80
$50.83
You save $8.97
More details
Bolt
20
Yamaha Motors
Bolt90101-06M27-00
Required: 2
BOLT
Supersedes: 97313-06025-00
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
