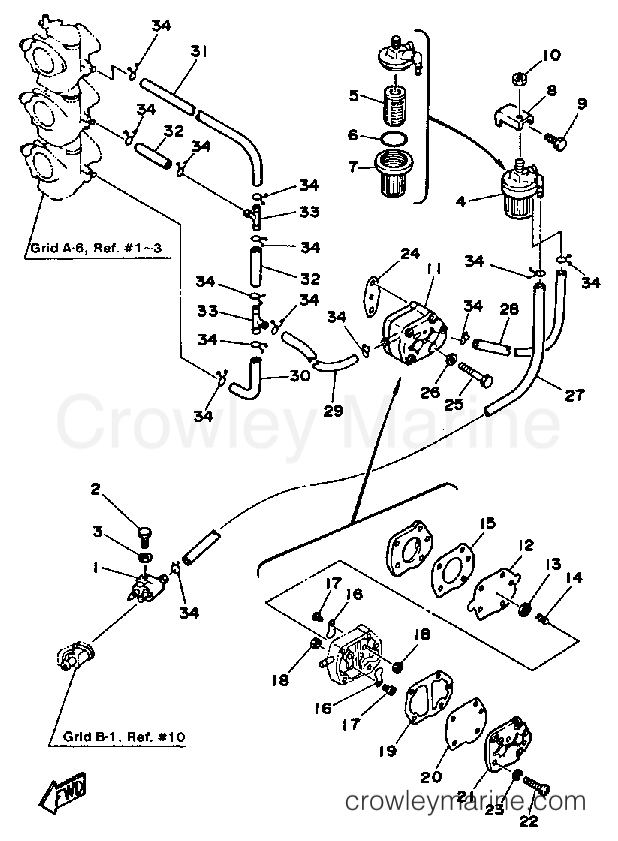

1987 Outboard 70hp - 70ETLH FUEL SYSTEM diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 70ETLH - FUEL SYSTEM
Change View:
Bolt
2
Yamaha Motors
Bolt90101-06M27-00
Required: 1
BOLT
Supersedes: 97313-06025-00
Cross Ship
Leaves in 2-5 days
$3.35
$2.68
You save $0.67
More details
FILTER CUP
7
Yamaha Motors
FILTER CUP655-24521-01-00
Required: 1
.CUP, FILTER
Cross Ship
Leaves in 999-0 days
$17.20
$14.62
You save $2.58
More details
Filter Bracket
8
Yamaha Motors
Filter Bracket 648-24566-01-00
Required: 1
BRACKET, FILTER
Cross Ship
Leaves in 2-5 days
$16.60
$14.11
You save $2.49
More details
Diaphragm
12
Yamaha Motors
Diaphragm648-24411-00-00
Required: 1
.DIAPHRAGM
Cross Ship
Leaves in 2-5 days
$24.85
$19.88
You save $4.97
More details
Spring Seat
13
Yamaha Motors
Spring Seat648-24424-00-00
Required: 1
.SEAT, SPRING
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
Diaphragm Spring
14
Yamaha Motors
Diaphragm Spring648-24423-00-00
Required: 1
.SPRING, DIAPHRAGM
Cross Ship
Leaves in 2-5 days
$5.30
$4.51
You save $0.79
More details
Pan Head Screw
17
Yamaha Motors
Pan Head Screw90147-03M00-00
Required: 2
.SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
Nut
18
Yamaha Motors
Nut98813-03100-00
Required: 2
.NUT
Cross Ship
Leaves in 2-5 days
$4.25
$3.61
You save $0.64
More details
.BODY 2
21
Yamaha Motors
.BODY 26A0-24413-00-00
Required: 1
.BODY 2
Cross Ship
Leaves in 2-5 days
$19.05
$15.24
You save $3.81
More details
Pan Head Screw
22
Yamaha Motors
Pan Head Screw98580-05020-00
Required: 3
.SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$1.50
$2.10
You save $-0.60
More details
Hose
32
Yamaha Motors
Hose90445-09M21-00
Required: 2
HOSE
Supersedes: 90445-09M22-00
Cross Ship
Leaves in 2-5 days
$29.99
$25.49
You save $4.50
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
