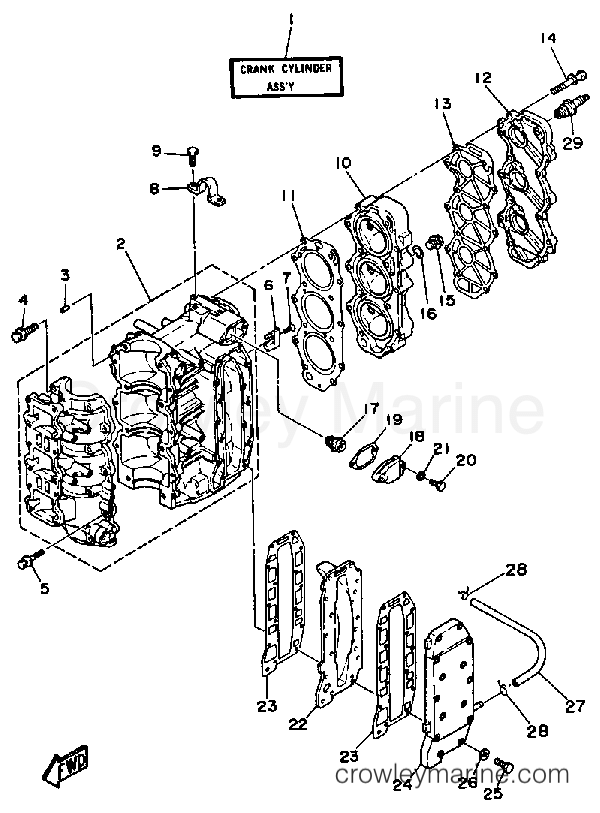

1987 Outboard 50hp - 50ESH-JD CRANKCASE CYLINDER diagram
1
Yamaha Motors
Obsolete Yamaha Part6H4-W0090-13-4D
Required: 1
CRANKCASE CYLINDER ASSY
Supersedes: 6H4-W0090-11-EK
$2540.01
You save $448.24
2
Yamaha Motors
Crankcase Assembly 6H4-15100-19-94
Required: 1
CRANKCASE ASSEMBLY
$1812.45
You save $319.85
In stock
5+ in stock
$3.91
You save $0.69
4
Yamaha Motors
Bolt with Washer90119-08019-00
Required: 8
BOLT, WITH WASHER
Supersedes: 90119-08M19-00
In stock
Only 1 remaining
$4.29
You save $0.76
5
Yamaha Motors
Bolt with Washer90119-06M13-00
Required: 6
BOLT, WITH WASHER
In stock
Only 4 remaining
$4.17
You save $0.74
In stock
5+ in stock
$5.95
You save $1.05
7
Yamaha Motors
Flat Head Screw98780-04016-00
Required: 2
SCREW OVAL HEAD
Supersedes: 98680-04016-00
In stock
5+ in stock
$1.27
You save $0.22
8
Yamaha Motors
Engine Hanger6H4-11119-01-00
Required: 1
HANGER, ENGINE
Supersedes: 6H4-11119-00-00
$10.84
You save $1.91
9
Yamaha Motors
BOLT, HEXAGON DEEP R97D95-06014-00
Required: 2
BOLT, HEXAGON
Supersedes: 97313-06014-00
In stock
5+ in stock
$1.32
You save $0.23
10
Yamaha Motors
Cylinder Head 6H4-11111-01-94
Required: 1
HEAD, CYLINDER 1
$198.56
You save $35.04
11
Yamaha Motors
Cylinder Head Gasket6H4-11181-A2-00
Required: 1
GASKET, CYLINDER HEAD 1
Supersedes: 6H4-11181-A0-00
In stock
Only 3 remaining
$44.03
You save $7.77
12
Yamaha Motors
Cylinder Head Cover6H4-11191-01-1S
Required: 1
COVER, CYLINDER HEAD 1
Supersedes: 6H4-11191-01-9M
$50.83
You save $8.97
13
Yamaha Motors
Head Cover Gasket6H4-11193-A1-00
Required: 1
GASKET, HEAD COVER 1
Supersedes: 6H4-11193-00-00
In stock
Only 1 remaining
$15.17
You save $2.68
14
Yamaha Motors
Bolt with Washer90119-08015-00
Required: 14
BOLT, WITH WASHER
Supersedes: 90119-08M29-00
In stock
5+ in stock
$2.42
You save $0.43
15
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 1
.PLUG, STRAIGHT SCREW
Supersedes: 90340-14M00-00
In stock
5+ in stock
$12.07
You save $2.13
In stock
Only 2 remaining
$2.55
You save $0.45
17
Yamaha Motors
Thermostat6E5-12411-30-00
Required: 1
THERMOSTAT
Supersedes: 6E5-12411-20-00
In stock
5+ in stock
$27.50
You save $4.85
18
Yamaha Motors
Thermostat Cover6H4-12413-00-1S
Required: 1
COVER, THERMOSTAT
Supersedes: 6H4-12413-00-9M
In stock
5+ in stock
$12.07
You save $2.13
19
Yamaha Motors
Cover Gasket61A-12414-A0-00
Required: 1
GASKET, COVER
Supersedes: 6J8-12414-A0-00
In stock
Only 5 remaining
$5.14
You save $0.91
20
Yamaha Motors
Bolt90101-06M27-00
Required: 2
BOLT
Supersedes: 97313-06025-00
$2.85
You save $0.50
21
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
22
Yamaha Motors
Exhaust Inner Cover6H4-41111-00-1S
Required: 1
INNER COVER, EXHAUST
Supersedes: 6H4-41111-00-9M
In stock
Only 4 remaining
$46.92
You save $8.28
23
Yamaha Motors
Exhaust Cover Gasket6H4-41114-A0-00
Required: 2
GASKET, EXHAUST COVER
In stock
Only 1 remaining
$6.08
You save $1.07
24
Yamaha Motors
Exhaust Outer Cover6H4-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 6H4-41113-00-9M
In stock
5+ in stock
$52.78
You save $9.32
25
Yamaha Motors
Bolt97080-06035-00
Required: 14
BOLT, HEXAGON
Supersedes: 97395-06035-00
In stock
5+ in stock
$4.67
You save $0.82
In stock
5+ in stock
$2.42
You save $0.43
27
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L240)
Supersedes: 90445-09M37-00
In stock
5+ in stock
$10.62
You save $1.87
In stock
5+ in stock
$8.07
You save $1.42
29
Yamaha Motors
NGK B8HS-10 SCREW TOP SPARK PLUGB8H-S1000-00-00
Required: 3
PLUG, SPARK (NGK B8HS-10)
Supersedes: NGK-B8HS1-00-00
In stock
5+ in stock
$4.00
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
