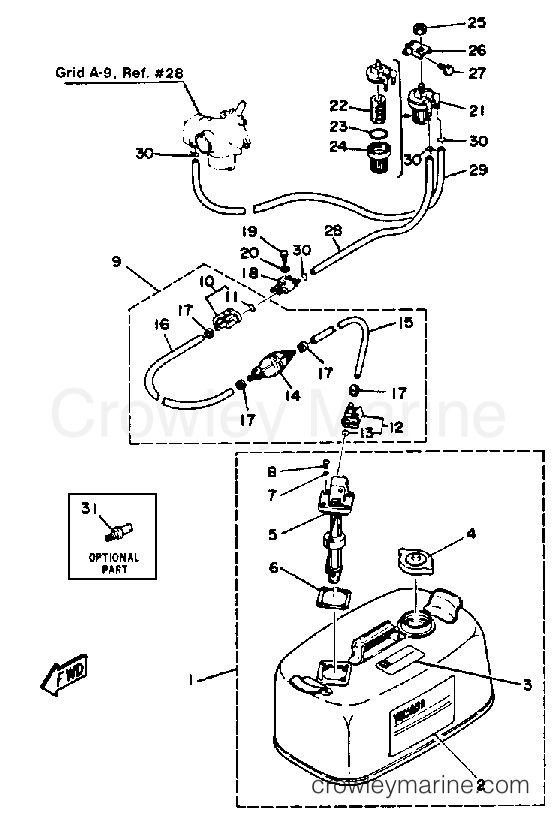

1987 Outboard 15hp - 15ESH FUEL TANK diagram
1
Yamaha Motors
Fuel Tank Assembly6Y1-W2420-42-24
Required: 1
FUEL TANK ASSEMBLY
$111.56
You save $19.69
2
Yamaha Motors
Side Graphic6Y1-24244-20-00
Required: 1
GRAPHIC, SIDE
$11.69
You save $2.06
3
Yamaha Motors
Fuel Tank Graphic6Y1-24255-40-00
Required: 1
GRAPHIC, FUEL TNK 8
$12.11
You save $2.14
$26.05
You save $4.60
5
Yamaha Motors
Fuel Meter Assembly6Y1-24260-02-00
Required: 1
FUEL METER ASSEMBLY
$90.40
You save $15.95
6
Yamaha Motors
Fuel Meter Gasket6Y1-24268-01-00
Required: 1
.GASKET, FUEL METER
Supersedes: 6Y1-24268-00-00
In stock
Only 1 remaining
$1.74
You save $0.31
In stock
5+ in stock
$2.29
You save $0.41
8
Yamaha Motors
Pan Head Screw98586-05016-00
Required: 4
SCREW, PAN HEAD
$3.10
You save $0.55
9
Yamaha Motors
FUEL PIPE COMP. 16Y1-24306-52-00
Required: 1
FUEL PIPE COMP. 1
Supersedes: 6Y1-24306-51-00
$217.52
You save $38.39
9
Yamaha Motors
FUEL PIPE COMP. 16Y1-24306-52-00
Required: 1
FUEL PIPE COMP. 1
Supersedes: 6Y1-24306-51-00
$217.52
You save $38.39
10
Yamaha Motors
Fuel Pipe Joint Comp6G1-24305-05-00
Required: 1
FUEL PIPE JOINT COMP. 2
Supersedes: 6G1-24305-01-00
In stock
5+ in stock
$23.80
You save $4.20
In stock
Only 4 remaining
$4.55
You save $0.80
12
Yamaha Motors
Fuel Pipe Joint Comp6Y1-24305-06-00
Required: 1
FUEL PIPE JOINT COMP. 2
Supersedes: 6Y1-24305-02-00
In stock
Only 2 remaining
$21.34
You save $3.77
In stock
Only 4 remaining
$4.55
You save $0.80
14
Yamaha Motors
PRIMER PUMP ASSY.6Y1-24360-51-00
Required: 1
PRIMER PUMP ASSY.
$37.78
You save $6.67
14
Yamaha Motors
PRIMER PUMP ASSY.6Y1-24360-51-00
Required: 1
PRIMER PUMP ASSY.
$37.78
You save $6.67
In stock
Only 2 remaining
$34.42
You save $6.08
15
Yamaha Motors
.HOSE (L3000)90445-11M81-00
Required: 1
.HOSE (L2050)
Supersedes: 90445-11M06-00
In stock
Only 2 remaining
$34.42
You save $6.08
16
Yamaha Motors
Hose (L800)90445-11M78-00
Required: 1
.HOSE (L850)
Supersedes: 90445-11M05-00
$7.57
You save $1.33
$7.57
You save $1.33
$2.29
You save $0.41
18
Yamaha Motors
FUEL PIPE JOINT COMP. 16G1-24304-11-00
Required: 1
FUEL PIPE JOINT COMP. 1
Supersedes: 6G1-24304-02-00
In stock
Only 5 remaining
$29.92
You save $5.28
19
Yamaha Motors
Hexagon Bolt97313-06020-00
Required: 1
BOLT, HEXAGON
$3.82
You save $0.68
20
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
21
Yamaha Motors
Filter Assembly61N-24560-10-00
Required: 1
FILTER ASSEMBLY
Supersedes: 655-24560-01-00
In stock
5+ in stock
$34.98
You save $6.17
22
Yamaha Motors
Filter Element6F5-24563-00-00
Required: 1
ELEMENT, FILTER
In stock
5+ in stock
$17.34
You save $3.06
22
Yamaha Motors
Filter Element6F5-24563-00-00
Required: 11
ELEMENT, FILTER
In stock
5+ in stock
$17.34
You save $3.06
In stock
5+ in stock
$5.23
You save $0.92
$14.62
You save $2.58
In stock
Only 1 remaining
$3.23
You save $0.57
26
Yamaha Motors
Filter Bracket682-24566-01-00
Required: 1
BRACKET, FILTER
Supersedes: 682-24566-00-00
$8.46
You save $1.49
27
Yamaha Motors
Bolt97085-06010-00
Required: 1
BOLT, HEXAGON
Supersedes: 97313-06010-00
In stock
Only 5 remaining
$1.27
You save $0.22
28
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE
Supersedes: 90445-09089-00
In stock
5+ in stock
$10.62
You save $1.87
29
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L260)
Supersedes: 90445-09100-00
In stock
5+ in stock
$10.62
You save $1.87
In stock
5+ in stock
$8.07
You save $1.42
31
Yamaha Motors
Jet Drive FlushABB-FLUSH-JD-00
Required: 1
JET DRIVE FLUSH
In stock
Only 1 remaining
$16.19
You save $2.86
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
