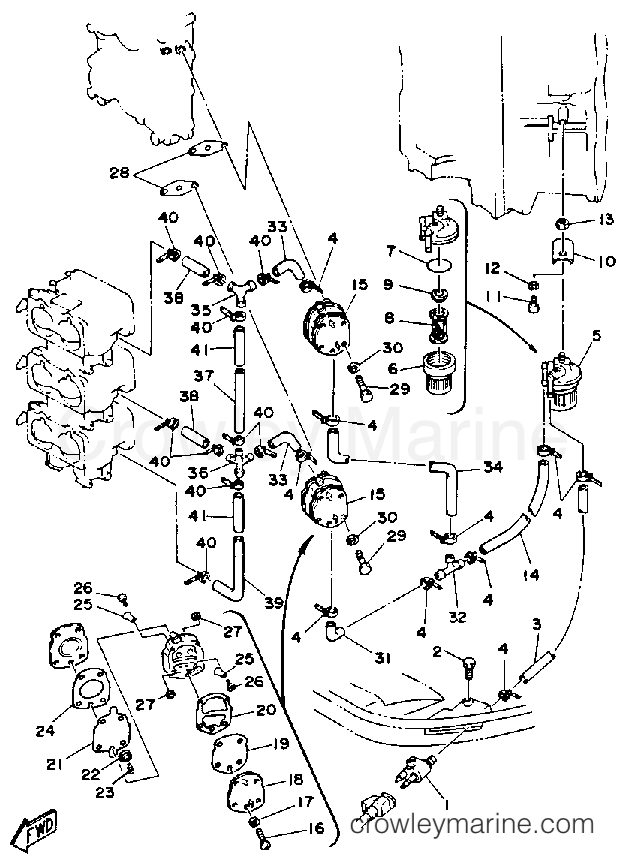

1986 Outboard 175hp - 175ETXJ FUEL SYSTEM 1 diagram
1
Yamaha Motors
Fuel Pipe Joint6E5-24304-20-00
Required: 1
FUEL PIPE JOINT COMP 1
Supersedes: 6E5-24304-10-00
In stock
Only 5 remaining
$19.46
You save $3.44
2
Yamaha Motors
Hexagon Bolt97313-06020-00
Required: 1
BOLT, HEXAGON
$3.82
You save $0.68
$17.30
You save $3.05
4
Yamaha Motors
Clamp90465-10098-00
Required: 10
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
5
Yamaha Motors
Filter Assembly6R3-24560-00-00
Required: 1
FILTER ASSY
Supersedes: 6E5-24560-00-00
In stock
5+ in stock
$64.13
You save $11.32
$14.62
You save $2.58
In stock
5+ in stock
$5.23
You save $0.92
8
Yamaha Motors
Filter Element6F5-24563-00-00
Required: 1
.ELEMENT, FILTER
In stock
5+ in stock
$17.34
You save $3.06
In stock
5+ in stock
$4.97
You save $0.88
10
Yamaha Motors
Filter Bracket 648-24566-01-00
Required: 1
BRACKET, FILTER
$14.11
You save $2.49
11
Yamaha Motors
BOLT, HEXAGON DEEP R97D95-06014-00
Required: 1
BOLT, HEXAGON
Supersedes: 97313-06014-00
In stock
5+ in stock
$1.32
You save $0.23
12
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
In stock
Only 1 remaining
$3.23
You save $0.57
In stock
Only 4 remaining
$9.69
You save $1.71
15
FUEL PUMP ASSY6E5-24410-09-00
Required: 2
FUEL PUMP ASSY
Supersedes: 6E5-24410-03-00
In stock
5+ in stock
$46.92
You save $8.28
16
Yamaha Motors
Pan Head Screw98580-05035-00
Required: 3
.SCREW, PAN HEAD
$7.52
You save $1.33
17
Yamaha Motors
Plate Washer92990-05600-00
Required: 3
.WASHER, PLATE
In stock
Only 4 remaining
$0.68
You save $0.12
$31.41
You save $5.54
$27.80
You save $4.91
20
Yamaha Motors
Body Gasket6E5-24435-00-00
Required: 1
.GASKET, BODY 2
$9.22
You save $1.63
$33.23
You save $5.87
22
Yamaha Motors
Spring Seat648-24424-00-00
Required: 1
.SEAT, SPRING
$3.87
You save $0.68
23
Yamaha Motors
Diaphragm Spring6E5-24423-00-00
Required: 1
.SPRING, DIAPHRAGM
$8.80
You save $1.55
24
Yamaha Motors
Body Gasket6E5-24434-02-00
Required: 1
.GASKET, BODY
$5.91
You save $1.04
25
Yamaha Motors
Check Valve62Y-24421-01-00
Required: 4
.VALVE, CHECK
Supersedes: 6A0-24421-01-00
In stock
5+ in stock
$13.00
You save $2.29
26
Yamaha Motors
Pan Head Screw98580-03008-00
Required: 4
.SCREW, PAN HEAD
$3.27
You save $0.58
$3.61
You save $0.64
28
Yamaha Motors
Fuel Pump Gasket650-24431-A0-00
Required: 2
GASKET, FUEL PUMP 1
In stock
5+ in stock
$2.98
You save $0.52
29
Yamaha Motors
Bolt97013-06050-00
Required: 4
BOLT
Supersedes: 97313-06050-00
$1.53
You save $0.27
30
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
In stock
5+ in stock
$11.43
You save $2.02
32
Yamaha Motors
Joint Pipe6E5-24378-00-00
Required: 1
PIPE, JOINT 3
In stock
Only 2 remaining
$17.98
You save $3.17
$14.24
You save $2.51
In stock
5+ in stock
$11.43
You save $2.02
In stock
Only 4 remaining
$13.18
You save $2.33
35
Yamaha Motors
Joint Pipe6G5-24376-00-00
Required: 1
PIPE, JOINT 1
In stock
Only 4 remaining
$9.27
You save $1.63
36
Yamaha Motors
Joint Pipe6G5-24377-00-00
Required: 1
PIPE, JOINT 2
In stock
Only 2 remaining
$9.69
You save $1.71
In stock
Only 4 remaining
$6.08
You save $1.07
38
Yamaha Motors
Overflow Pipe6G5-24318-00-00
Required: 2
PIPE, OVERFLOW
$5.52
You save $0.98
38
Yamaha Motors
Hose (L85)90445-13579-00
Required: 2
PIPE, OVERFLOW
Supersedes: 6G5-24318-10-00
In stock
5+ in stock
$3.57
You save $0.63
In stock
5+ in stock
$11.43
You save $2.02
$11.56
You save $2.04
40
Yamaha Motors
Clamp90465-10098-00
Required: 10
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
In stock
5+ in stock
$3.02
You save $0.53
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
