2015 Maxi-Scooter CP250 - CP250 (1B7F) [010] INTAKE diagram
$109.64
You save $19.35
$2.85
You save $0.50
$8.07
You save $1.42
$35.69
You save $6.30

5
Yamaha Motors
Manifold Gasket5RU-13556-00-00
Required: 1
GASKET, MANIFOLD
$28.89
You save $5.10
$8.92
You save $1.57
$3.27
You save $0.58

8
Yamaha Motors
Carburetor Joint 15VG-13586-00-00
Required: 1
JOINT, CARBURETOR 1
$28.89
You save $5.10

9
Yamaha Motors
Hexagon Bolt97017-06020-00
Required: 2
BOLT, HEXAGON
Supersedes: 97022-06020-00
$3.45
You save $0.61
10
Required: 1
PIPE INLET ASSEMBLY
Price unavailable
$9.34
You save $1.65

12
Yamaha Motors
Clamp90464-15195-00
Required: 2
CLAMP
Supersedes: 90464-13073-00
$3.75
You save $0.66
13
Required: 1
BOLT
Price unavailable

14
Yamaha Motors
Flange Bolt90105-05025-00
Required: 1
BOLT, FLANGE
Supersedes: 90105-05024-00
$0.98
You save $0.17
$4.67
You save $0.82
$0.84
You save $0.15
$8.07
You save $1.42
$3.02
You save $0.53
19
Required: 1
THROTTLE BODY ASSY
Price unavailable
$5.09
You save $0.90

21
Yamaha Motors
Wire Holder4KL-14415-00-00
Required: 2
. HOLDER, WIRE
$4.12
You save $0.73
$0.51
You save $0.09
$7.22
You save $1.27
$15.72
You save $2.77

25
Yamaha Motors
Diaphragm Assembly5RU-14368-01-00
Required: 1
. DIAPHRAGM ASSY 1
$39.94
You save $7.05

26
Yamaha Motors
SUCTION PISTON5RU-14313-00-00
Required: 1
. SUCTION PISTON
$44.19
You save $7.80

27
Yamaha Motors
Throttle Sensor Assembly5RU-85885-00-00
Required: 1
. THROTTLE SENSOR ASSY
$96.04
You save $16.95

28
Yamaha Motors
Hose Clamp Assembly90450-53007-00
Required: 1
HOSE CLAMP ASSY
Supersedes: 90450-53004-00
$8.07
You save $1.42
$11.89
You save $2.10
$1.96
You save $0.35
$7.22
You save $1.27
$3.49
You save $0.62
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

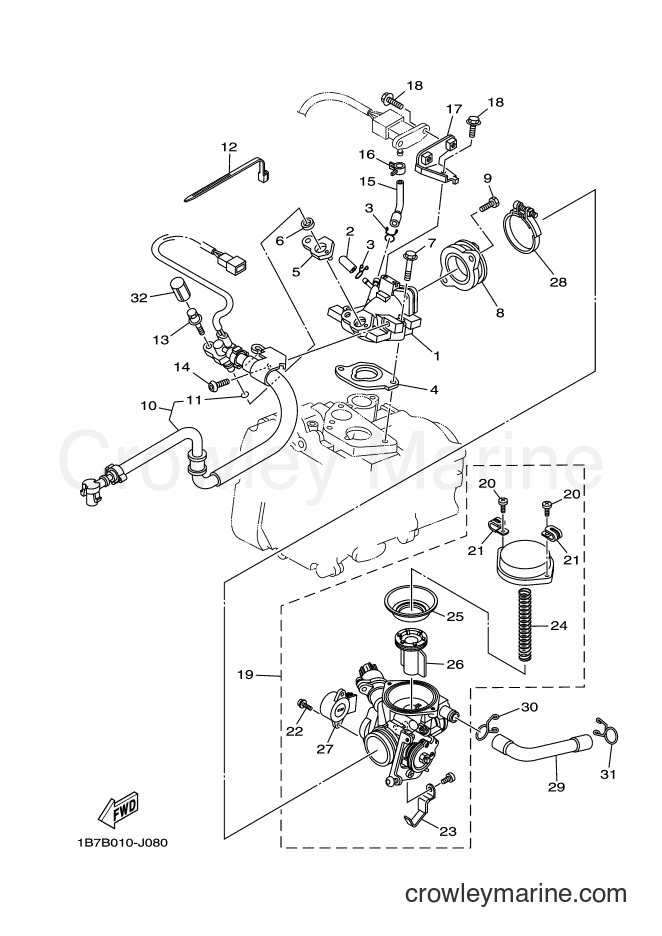

![Yamaha Motors CP250 (1B7F) [010] - INTAKE](https://cdn.crowleymarine.com/yamaha/iRjfkD03.png)
