2017 International 115hp - LF115XB-2017 (6EL4) [020] ELECTRICAL 2 diagram
In stock
5+ in stock
$111.22
You save $19.63

2
Yamaha Motors
Tapping Screw97780-60520-00
Required: 1
SCREW, TAPPING
Supersedes: 97780-60620-00
In stock
Only 1 remaining
$3.82
You save $0.67
$4.72
You save $0.83

4
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06610-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06610-00
In stock
Only 2 remaining
$0.85
You save $0.15

5
Yamaha Motors
Terminal Cap6P2-8183X-00-00
Required: 2
CAP, TERMINAL
$5.70
You save $1.00

6
Yamaha Motors
RELAY ASSY63P-W8195-00-00
Required: 1
RELAY ASSY
Supersedes: 63P-81950-00-00
$407.75
You save $71.95

7
Yamaha Motors
Lead Wire Cover6G5-82119-10-00
Required: 2
COVER, LEAD WIRE
Supersedes: 682-82119-01-00
In stock
Only 2 remaining
$8.84
You save $1.56

8
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06610-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06610-00
In stock
Only 2 remaining
$0.85
You save $0.15

9
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06520-00
In stock
Only 2 remaining
$2.59
You save $0.46
$25.24
You save $4.46

11
Yamaha Motors
Spacer64J-85516-01-00
Required: 4
SPACER
Supersedes: 64J-85516-00-00
$1.40
You save $0.25
$9.65
You save $1.70

13
Yamaha Motors
Bolt with Washer90119-06293-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06M56-00
In stock
Only 1 remaining
$3.57
You save $0.63
14
Yamaha Motors
DEEP FLANGE BOLT95D95-06016-00
Required: 2
BOLT, FLANGE
Supersedes: 95895-06016-00
In stock
5+ in stock
$0.81
You save $0.14

15
Yamaha Motors
COVER6EM-81942-01-00
Required: 1
COVER
Supersedes: 6EM-81942-00-00
$6.63
You save $1.17

16
Yamaha Motors
Truss Head Tapping Screw90169-05M00-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
5+ in stock
$4.17
You save $0.74
In stock
Only 5 remaining
$1.57
You save $0.28
In stock
Only 5 remaining
$1.57
You save $0.28
$259.68
You save $45.82
$41.05
You save $7.24

21
Yamaha Motors
Fuse (20A-BL)5JJ-82151-20-00
Required: 3
. FUSE (20A)
Supersedes: 67F-82151-00-00
$7.22
You save $1.27

22
Yamaha Motors
Fuse (12V/10A)5JJ-82151-60-00
Required: 2
. FUSE (30A)
Supersedes: 67F-82151-10-00
$7.22
You save $1.27

23
Yamaha Motors
Pan Head (M5) Screw68F-82846-00-00
Required: 4
. SCREW, PAN HEAD (M5)
$4.68
You save $0.83

24
Yamaha Motors
Tapping Screw97780-50620-00
Required: 3
SCREW, TAPPING
$2.72
You save $0.48
$5.70
You save $1.00
$5.70
You save $1.00
$4.72
You save $0.83

28
Yamaha Motors
REGULATOR GRAPHIC6EK-81919-01-00
Required: 1
GRAPHIC, REGULATOR
In stock
Only 1 remaining
$2.17
You save $0.38
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

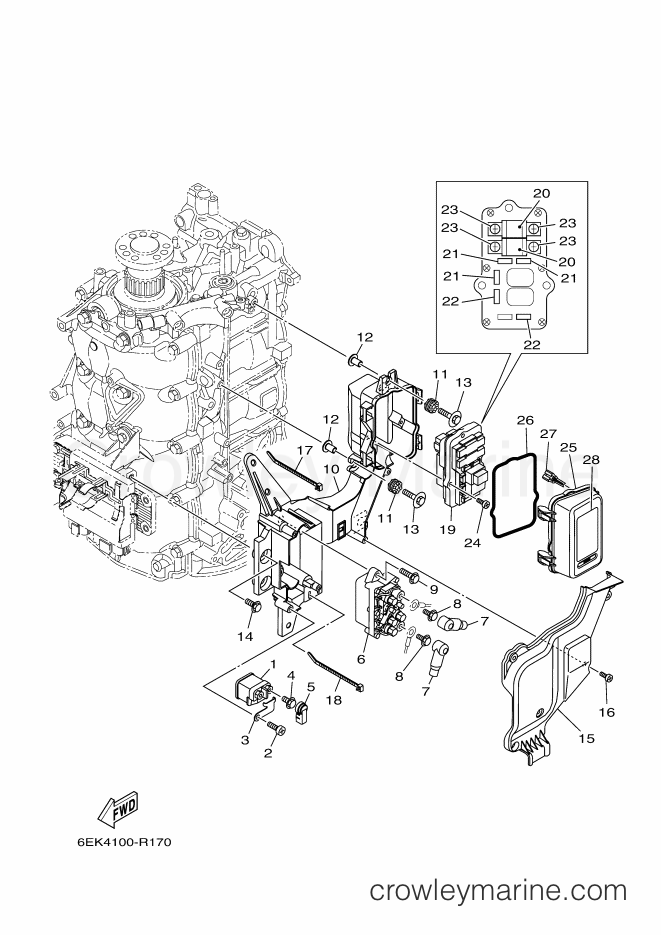

![Yamaha Motors LF115XB-2017 (6EL4) [020] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/TGOBjw7p.png)
