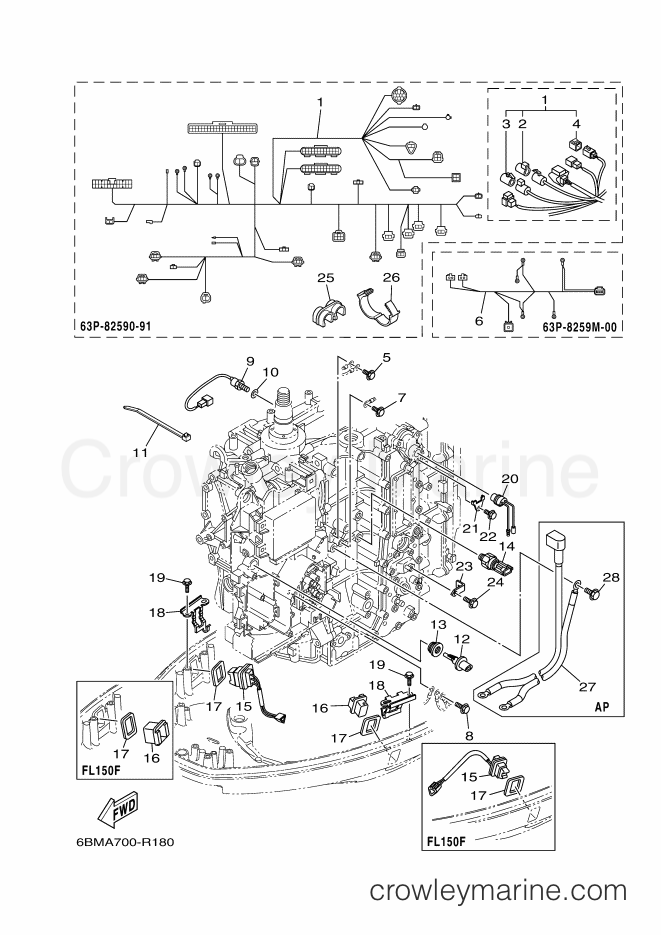

2017 International 150hp - F150FETX (6BMA) [080] ELECTRICAL 3 diagram
![Yamaha Motors F150FETX (6BMA) [080] - ELECTRICAL 3](https://cdn.crowleymarine.com/yamaha/QpzzRDLV.png)
1
Required: 1
WIRE HARNESS ASSY
Price unavailable
2
Yamaha Motors
Cap (Female)6DA-82582-00-00
Required: 1
. CAP 1 (FEMALE)
$3.44
You save $0.61
3
Yamaha Motors
Cap (Male)6DA-82582-10-00
Required: 1
. CAP 1 (MALE)
$4.72
You save $0.83
4
Yamaha Motors
Cap (4Pin)6Y8-82582-11-00
Required: 1
. CAP 1 (4PIN)
In stock
Only 4 remaining
$5.95
You save $1.05
5
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06516-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06516-00
$3.57
You save $0.63
6
Yamaha Motors
Wire Harness Assembly63P-8259M-00-00
Required: 1
WIRE HARNESS ASSY 2
$193.12
You save $34.08
7
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06516-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06516-00
$3.57
You save $0.63
8
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06512-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06512-00
In stock
Only 2 remaining
$1.74
You save $0.31
9
Yamaha Motors
THERMOSENSOR ASSY61A-85790-01-00
Required: 1
THERMOSENSOR ASSY
Supersedes: 61A-85790-00-00
In stock
Only 3 remaining
$122.48
You save $21.62
10
Yamaha Motors
Plate Washer92990-10600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.55
You save $0.45
11
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
12
Yamaha Motors
Air Temperature Sensor63P-85886-00-00
Required: 1
SENSOR, AIR TEMPERATURE
$39.06
You save $6.89
$6.29
You save $1.11
14
Yamaha Motors
SENDER, OIL PRESSURE6AW-83651-01-00
Required: 1
SENDER, OIL PRESSURE
Supersedes: 6AW-83651-00-00
$308.63
You save $54.47
15
Yamaha Motors
Trim & Tilt Switch Assembly69J-82563-01-00
Required: 1
TRIM & TILT SWITCH ASSY
In stock
5+ in stock
$54.32
You save $9.59
$29.03
You save $5.12
17
Yamaha Motors
Tank Cap Gasket69J-82587-01-00
Required: 2
GASKET
Supersedes: 69J-82587-00-00
In stock
Only 2 remaining
$4.72
You save $0.83
$19.38
You save $3.42
In stock
Only 5 remaining
$1.54
You save $0.27
20
Yamaha Motors
Thermo Switch Assembly6P2-82560-01-00
Required: 1
THERMO SWITCH ASSY
In stock
Only 5 remaining
$49.30
You save $8.70
$13.43
You save $2.37
In stock
Only 2 remaining
$2.51
You save $0.44
$6.88
You save $1.21
24
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06512-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06512-00
In stock
Only 2 remaining
$1.74
You save $0.31
In stock
Only 1 remaining
$3.20
You save $0.56
$1.99
You save $0.35
$321.56
You save $56.75
28
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-08516-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-08516-00
$1.15
You save $0.20
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
