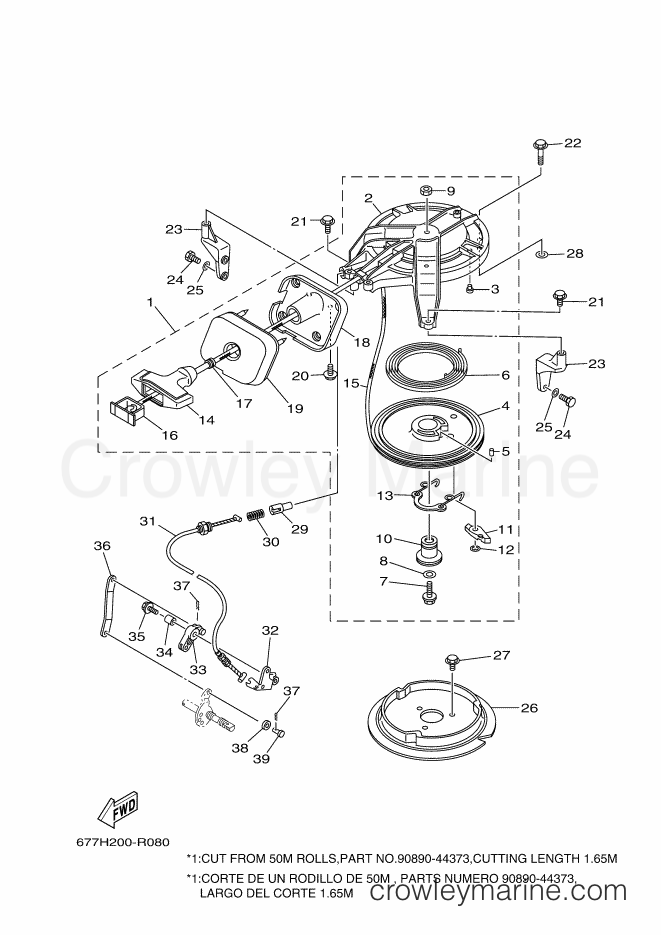

2017 International 8hp - E8DMHS (677H) [040] STARTER diagram
![Yamaha Motors E8DMHS (677H) [040] - STARTER](https://cdn.crowleymarine.com/yamaha/T6ZQyHBW.png)
1
Required: 1
STARTER ASSY
Price unavailable
2
Required: 1
. CASE, STARTER
Price unavailable
$4.04
You save $0.71
4
Yamaha Motors
Sheave Drum677-15714-00-94
Required: 1
. DRUM, SHEAVE
$48.62
You save $8.58
5
Yamaha Motors
Spring Pin91690-40020-00
Required: 1
. PIN, SPRING
$2.72
You save $0.48
6
Yamaha Motors
Spiral Spring90510-08M04-00
Required: 1
. SPRING, SPIRAL
$25.54
You save $4.51
-50%
7
Yamaha Motors
With Washer Bolt90119-06M34-00
Required: 1
. BOLT, WITH WASHER
In stock
Only 1 remaining
$1.45
You save $1.45
8
Yamaha Motors
Plain Washer90201-06020-00
Required: 1
. WASHER, PLATE
Supersedes: 90201-06060-00
In stock
Only 1 remaining
$8.39
You save $2.10
9
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 1
. NUT
Supersedes: 95303-06600-00
In stock
5+ in stock
$3.84
You save $0.96
10
Yamaha Motors
Starter Shaft677-15717-01-00
Required: 1
. SHAFT, STARTER
$23.40
You save $5.85
11
Yamaha Motors
Drive Pawl677-15741-01-00
Required: 1
. PAWL, DRIVE
In stock
Only 4 remaining
$10.04
You save $2.51
In stock
Only 5 remaining
$2.84
You save $0.71
13
Yamaha Motors
Drive Pawl Spring677-15705-02-00
Required: 1
. SPRING, DRIVE PAWL
In stock
Only 3 remaining
$11.80
You save $2.95
14
Yamaha Motors
Starter Handle689-15755-02-00
Required: 1
. HANDLE, STARTER
Supersedes: 689-15755-01-00
In stock
5+ in stock
$5.00
You save $1.25
15
Required: 1
. WIRE (L1650)
Price unavailable
$4.28
You save $1.07
17
Yamaha Motors
DAMPER 26A0-15789-01-00
Required: 1
. DAMPER
Supersedes: 6A0-15789-00-00
In stock
Only 3 remaining
$1.32
You save $0.33
18
Required: 1
. GUIDE, ROPE
Price unavailable
19
Required: 1
. SEAL, RUBBER 2
Price unavailable
20
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06516-00
Required: 2
. BOLT, WITH WASHER
Supersedes: 97595-06516-00
$3.57
You save $0.63
21
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06520-00
In stock
Only 2 remaining
$2.44
You save $0.61
22
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06535-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06535-00
$0.94
You save $0.17
23
Required: 2
STAY 1
Price unavailable
24
Yamaha Motors
Bolt97080-06018-00
Required: 4
BOLT
Supersedes: 97095-06018-00
$7.64
You save $1.35
25
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.28
You save $0.57
-50%
26
Yamaha Motors
Starter Pulley6E7-15723-00-94
Required: 1
PULLEY, STARTER
In stock
Only 1 remaining
$18.48
You save $18.48
-50%
27
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06512-00
Required: 3
BOLT, WITH WASHER
Supersedes: 97595-06512-00
In stock
Only 2 remaining
$1.03
You save $1.03
28
Yamaha Motors
Plate Washer90201-10049-00
Required: 1
WASHER, PLATE
Supersedes: 90201-10120-00
In stock
5+ in stock
$1.52
You save $0.38
29
Yamaha Motors
Starter Stop Plunger656-15748-00-00
Required: 1
PLUNGER, STARTER STOP
In stock
Only 4 remaining
$10.76
You save $2.69
30
Yamaha Motors
Compression Spring90501-10227-00
Required: 1
SPRING, COMPRESSION
$6.16
You save $1.54
31
Required: 1
CABLE COMP., STARTER STOP
Price unavailable
32
Required: 1
STAY 2
Price unavailable
33
Required: 1
ARM
Price unavailable
$6.71
You save $1.19
35
Yamaha Motors
Bolt with Washer90119-06M48-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-06M87-00
$5.44
You save $0.96
36
Required: 1
LINK
Price unavailable
$6.08
You save $1.07
38
Yamaha Motors
Plate Washer90202-05088-00
Required: 1
WASHER, PLATE
In stock
Only 2 remaining
$6.16
You save $1.54
39
Required: 1
SET PIN
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
