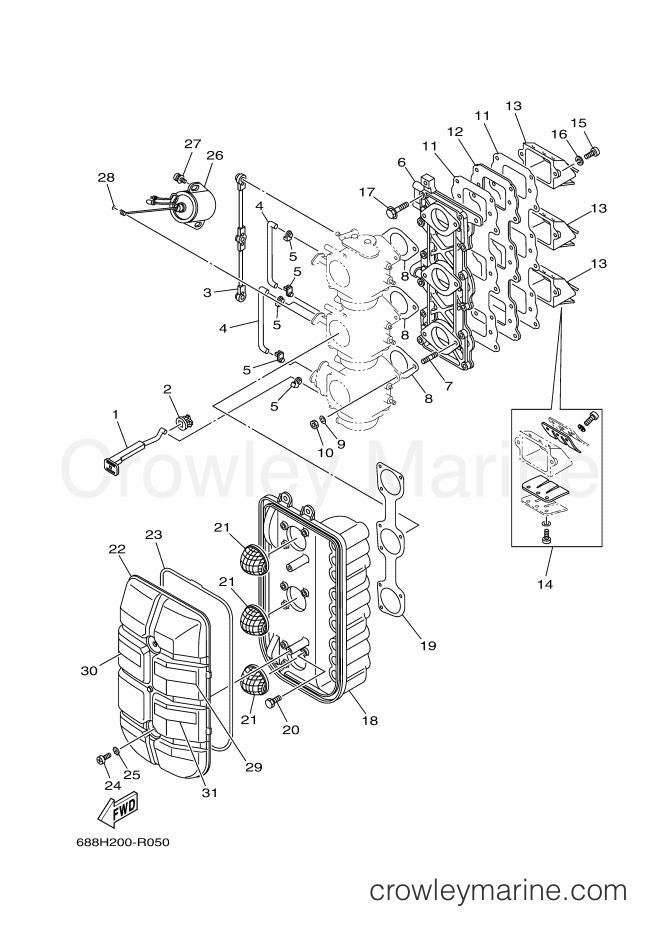

2017 International 85hp - 85AEDX (688H) [130] ADMISION diagram
![Yamaha Motors 85AEDX (688H) [130] - ADMISION](https://cdn.crowleymarine.com/yamaha/7jWTFlCj.png)
1
Yamaha Motors
Choke Rod 1692-41256-01-00
Required: 1
VARILLA DE AHOGADOR
$21.80
You save $3.85
2
Yamaha Motors
Grommet689-41273-00-00
Required: 1
TAPON PROTECTOR
In stock
Only 4 remaining
$9.27
You save $1.63
3
Yamaha Motors
Accelerator Lever Rod688-41217-01-00
Required: 1
VARILLA PALANCA ACELERADOR
In stock
5+ in stock
$16.06
You save $2.84
4
Yamaha Motors
Choke Rod688-41257-01-00
Required: 2
VARILLA DE AHOGADOR
$5.74
You save $1.01
5
Yamaha Motors
Choke Lever Joint661-41262-02-00
Required: 5
CONECTOR DE AHOGADOR
In stock
5+ in stock
$11.35
You save $2.00
6
Yamaha Motors
Manifold688-13641-01-00
Required: 1
CONECTOR DE ADMISSION 1
$67.32
You save $11.88
7
Yamaha Motors
Stud Bolt90116-06M30-00
Required: 6
ESPARRAGO
Supersedes: 90116-06122-00
In stock
Only 1 remaining
$5.06
You save $0.89
$5.61
You save $0.99
In stock
5+ in stock
$2.93
You save $0.52
In stock
5+ in stock
$4.08
You save $0.72
11
Yamaha Motors
Valve Seat Gasket688-13621-A1-00
Required: 2
JUNTA, DE VALV.DE EMPAQUE
In stock
5+ in stock
$5.61
You save $0.99
12
Yamaha Motors
Reed Valve Plate688-13624-00-00
Required: 1
PLACA DE VALVULA DE LAMINAS
$15.04
You save $2.66
13
Yamaha Motors
Reed Valve Assembly688-13610-00-00
Required: 3
VALVULA DE LAMINAS COMPLETA
$83.55
You save $14.75
14
Yamaha Motors
Reed Set688-W0004-00-00
Required: 1
. JUEGO DE VALVULAS DE LENGUETA
In stock
Only 4 remaining
$53.68
You save $9.47
15
Yamaha Motors
Pan Head Screw97885-05020-00
Required: 6
TORNILLO DE CABEZA CON PLANA
Supersedes: 97880-05020-00
$3.53
You save $0.62
16
Yamaha Motors
Spring Washer92990-05100-00
Required: 6
ARANDELA PLANA
In stock
Only 5 remaining
$0.30
You save $0.05
17
Yamaha Motors
Bolt With Washer (63M)97513-06530-00
Required: 12
PERNO CON ARANDELA
$3.82
You save $0.67
$98.90
You save $17.45
$5.35
You save $0.95
20
Yamaha Motors
BOLT97313-06018-00
Required: 6
PERNO
Supersedes: 97013-06018-00
In stock
Only 2 remaining
$1.19
You save $0.21
21
Yamaha Motors
Carburetor Cap688-14481-00-00
Required: 3
TAPA DE CARBURADOR
$7.52
You save $1.33
22
Required: 1
CUBIERTA 2
Price unavailable
$22.23
You save $3.92
24
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 2
TORNILLO A MUESCA
Supersedes: 97885-06016-00
In stock
Only 5 remaining
$2.85
You save $0.50
25
Yamaha Motors
Washer90209-06M05-00
Required: 2
ARANDELA DE SEPARACION
In stock
Only 4 remaining
$3.36
You save $0.59
$98.26
You save $17.34
27
Yamaha Motors
Screw With Washer90159-06M19-00
Required: 2
TORNILLO CON VALONA
$2.55
You save $0.45
In stock
5+ in stock
$5.82
You save $1.03
29
Yamaha Motors
SAFETY LABEL6EE-81994-40-00
Required: 1
ETIQUETA DE SEGURIDAD
$14.53
You save $2.56
30
Yamaha Motors
Label (Warning)6EE-81995-40-00
Required: 1
ETIQUETA DE PRECAUCION
$14.19
You save $2.51
$4.68
You save $0.83
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
