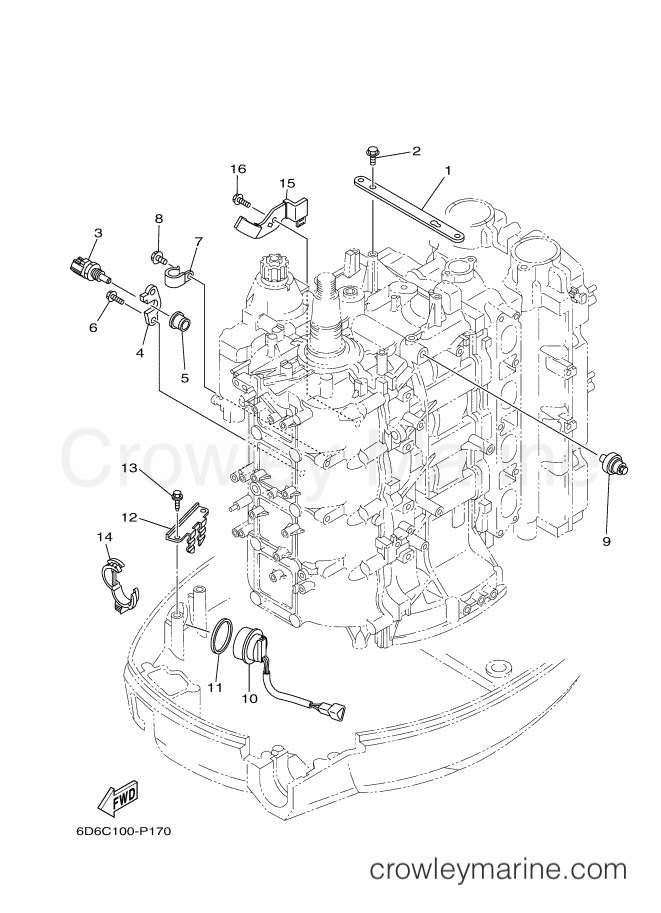

2016 International 90hp - F90XA-2016 (6D8D) [190] ELECTRICAL 4 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F90XA-2016 (6D8D) [190] - ELECTRICAL 4
Change View:
Plate
1
Yamaha Motors
Plate6D8-8132G-10-00
Required: 1
PLATE
Cross Ship
Leaves in 2-5 days
$12.35
$10.50
You save $1.85
More details
BOLT, HEXAGON W/W DE
2
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06516-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06516-00
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
Thermosensor Assembly
3
Yamaha Motors
Thermosensor Assembly6D8-85790-00-00
Required: 1
THERMOSENSOR ASSY
Cross Ship
Leaves in 2-5 days
$54.45
$46.28
You save $8.17
More details
Retainer
4
Yamaha Motors
Retainer67F-85757-00-00
Required: 1
RETAINER
Cross Ship
Leaves in 2-5 days
$14.20
$12.07
You save $2.13
More details
BOLT, HEXAGON W/W DE
6
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06516-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06516-00
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
Clamp
7
Yamaha Motors
Clamp90465-06M86-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$7.15
$6.08
You save $1.07
More details
Bracket
12
Yamaha Motors
Bracket67F-83614-00-00
Required: 1
BRACKET
Cross Ship
Leaves in 2-5 days
$13.35
$11.35
You save $2.00
More details
Clamp
14
Yamaha Motors
Clamp90464-28003-00
Required: 2
CLAMP
Supersedes: 90464-30003-00
Cross Ship
Leaves in 2-5 days
$4.46
$3.79
You save $0.67
More details
Holder Plate
15
Yamaha Motors
Holder Plate6D8-8252H-01-00
Required: 1
PLATE, HOLDER
Cross Ship
Leaves in 2-5 days
$42.55
$36.17
You save $6.38
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
