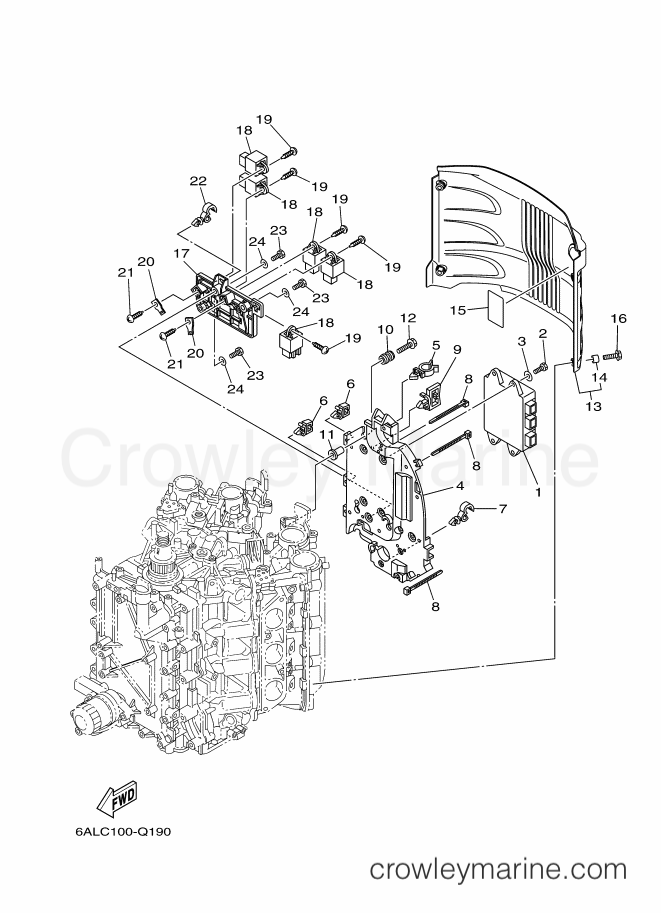

2016 International 250hp - F250XA-2016 (6P2D) [220] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F250XA-2016 (6P2D) [220] - ELECTRICAL 2
Change View:
ENGINE CONTROL UNIT ASSEMBLY
1
Yamaha Motors
ENGINE CONTROL UNIT ASSEMBLY6P2-8591A-44-00
Required: 1
ENGINE CONTROL UNIT ASSY
Cross Ship
Leaves in 2-5 days
$2083.25
$1770.76
You save $312.49
More details
Ignition Coil Bracket
4
Yamaha Motors
Ignition Coil Bracket6P2-82316-01-00
Required: 1
BRACKET, IGNITION COIL
Supersedes: 6P2-82316-00-00
Cross Ship
Leaves in 2-5 days
$57.70
$49.05
You save $8.66
More details
Clamp
5
Yamaha Motors
Clamp90464-19M45-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$4.40
$3.74
You save $0.66
More details
Clamp
6
Yamaha Motors
Clamp90464-11121-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Clamp
7
Yamaha Motors
Clamp90464-13249-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Ignition Coil Cover
13
Yamaha Motors
Ignition Coil Cover6P2-82314-10-00
Required: 1
COVER, IGNITION COIL
Cross Ship
Leaves in 2-5 days
$91.90
$78.11
You save $13.78
More details
Protector
15
Yamaha Motors
Protector6P2-42735-00-00
Required: 1
PROTECTOR
Cross Ship
Leaves in 2-5 days
$15.20
$12.92
You save $2.28
More details
Relay Holder
17
Yamaha Motors
Relay Holder6P2-81952-00-00
Required: 1
HOLDER, RELAY
Cross Ship
Leaves in 2-5 days
$45.00
$38.25
You save $6.75
More details
Relay Assembly
18
Yamaha Motors
Relay Assembly68V-81950-00-00
Required: 5
RELAY ASSY
Cross Ship
Leaves in 2-5 days
$150.80
$128.18
You save $22.62
More details
Bracket
20
Yamaha Motors
Bracket6P2-83635-00-00
Required: 2
BRACKET
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
Clamp
22
Yamaha Motors
Clamp90464-13249-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
