2016 International 130hp - F130AETL (6EM2) [160] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

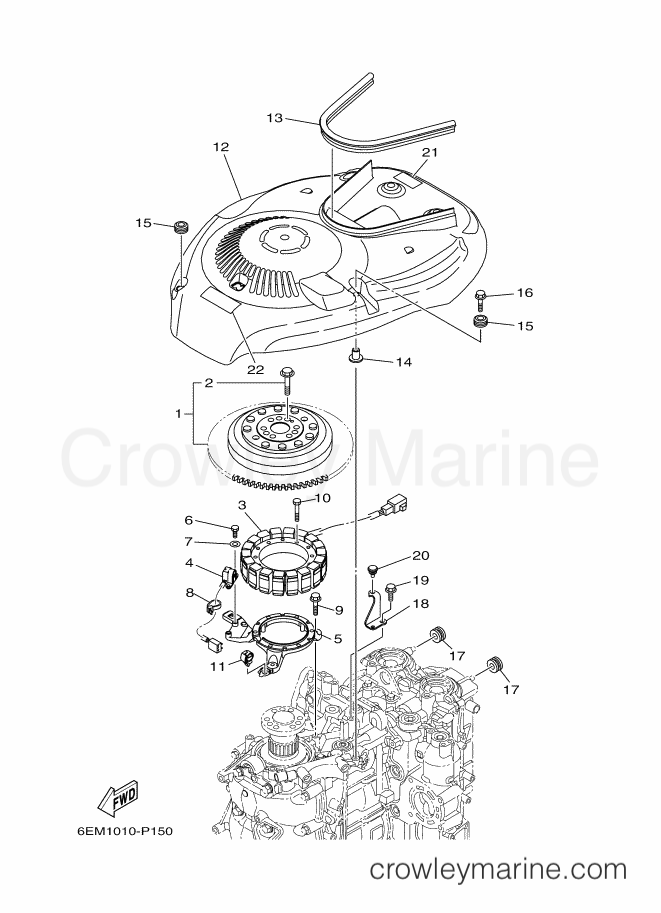

Yamaha Motors F130AETL (6EM2) [160] - GENERATOR
Change View:
Rotor Assembly (With Bolts)
1
Yamaha Motors
Rotor Assembly (With Bolts)6EK-W8145-01-00
Required: 1
ROTOR ASSY WITH BOLTS
Supersedes: 6EK-W8145-00-00
Cross Ship
Leaves in 2-5 days
$877.00
$745.45
You save $131.55
More details
BOLT SET
2
Yamaha Motors
BOLT SET6EK-W9010-00-00
Required: 1
. BOLT SET
Cross Ship
Leaves in 2-5 days
$79.90
$67.92
You save $11.98
More details
Stator Assembly
3
Yamaha Motors
Stator Assembly6EK-81410-00-00
Required: 1
STATOR ASSY
Cross Ship
Leaves in 2-5 days
$426.20
$362.27
You save $63.93
More details
COIL, PULSER
4
Yamaha Motors
COIL, PULSER6CB-85580-01-00
Required: 1
COIL, PULSER
Supersedes: 6CB-85580-00-00
Cross Ship
Leaves in 2-5 days
$98.10
$83.38
You save $14.72
More details
Magneto Base
5
Yamaha Motors
Magneto Base6EK-85561-00-00
Required: 1
BASE, MAGNETO
Cross Ship
Leaves in 2-5 days
$75.50
$64.17
You save $11.33
More details
Clamp
8
Yamaha Motors
Clamp90465-13M97-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$3.45
$2.93
You save $0.52
More details
Bolt
10
Yamaha Motors
Bolt91312-06035-00
Required: 6
BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$3.28
$2.79
You save $0.49
More details
Clamp
11
Yamaha Motors
Clamp90464-13249-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
COVER, FLYWHEEL
12
Yamaha Motors
COVER, FLYWHEEL6EK-81337-01-00
Required: 1
COVER, FLYWHEEL
Supersedes: 6EK-81337-00-00
Cross Ship
Leaves in 2-5 days
$50.25
$42.71
You save $7.54
More details
Form Damper
13
Yamaha Motors
Form Damper6EK-42617-00-00
Required: 1
DAMPER, FORM
Cross Ship
Leaves in 2-5 days
$25.00
$21.25
You save $3.75
More details
Plate
18
Yamaha Motors
Plate6EK-8132G-00-00
Required: 1
PLATE
Cross Ship
Leaves in 2-5 days
$6.60
$5.61
You save $0.99
More details
Grommet
20
Yamaha Motors
Grommet90480-06M19-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$5.35
$4.55
You save $0.80
More details
21
Required: 1
MARK, CAUTION
Price unavailable
22
Required: 1
LABEL, SAFETY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
