All diagrams for this model

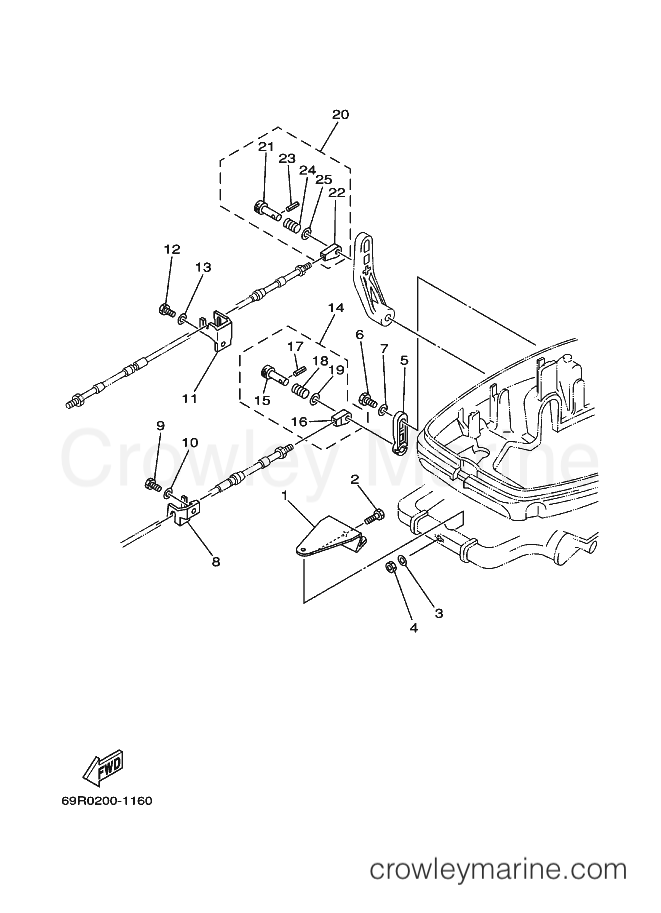

2012 International 30hp - 30HWCS (69SD) [270] CONTROL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 30HWCS (69SD) [270] - CONTROL 2
Change View:
BOLT
6
Yamaha Motors
BOLT97095-06012-00
Required: 1
PERNO
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
BOLT, HEXAGON DEEP RECESS
9
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 1
PERNO
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
BRACKET, REMOTE CONTROL 1
11
Yamaha Motors
BRACKET, REMOTE CONTROL 1689-48531-52-00
Required: 1
SOPORTE DE CONTROL REMOTO
Supersedes: 689-48531-50-00
Cross Ship
Leaves in 2-5 days
$16.50
$14.03
You save $2.47
More details
BOLT, HEXAGON DEEP RECESS
12
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 1
PERNO
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Cable End Assembly
14
Yamaha Motors
Cable End Assembly648-48340-50-00
Required: 1
TERMINAL DE CABLE COMPL.
Cross Ship
Leaves in 2-5 days
$33.70
$28.65
You save $5.05
More details
Cable Hook
15
Yamaha Motors
Cable Hook617-48361-91-00
Required: 1
. GANCHO CABLE
Cross Ship
Leaves in 2-5 days
$19.05
$16.19
You save $2.86
More details
Remote Control Cable End
16
Yamaha Motors
Remote Control Cable End617-48346-90-00
Required: 1
. TERMINAL CABLE DE CONTROL REMO
Cross Ship
Leaves in 2-5 days
$14.15
$12.03
You save $2.12
More details
Cable End Assembly
20
Yamaha Motors
Cable End Assembly648-48330-50-00
Required: 1
TERMINAL DE CABLE COMPL.
Cross Ship
Leaves in 2-5 days
$35.10
$29.84
You save $5.27
More details
Cable Hook
21
Yamaha Motors
Cable Hook617-48331-91-00
Required: 1
. GANCHO CABLE
Cross Ship
Leaves in 2-5 days
$21.80
$18.53
You save $3.27
More details
Remote Control Cable End
22
Yamaha Motors
Remote Control Cable End648-48346-50-00
Required: 1
. TERMINAL CABLE DE CONTROL REMO
Cross Ship
Leaves in 2-5 days
$13.35
$11.35
You save $2.00
More details
Compression Spring
24
Yamaha Motors
Compression Spring90501-10071-00
Required: 1
. RESORTE DE COMPRESION
Cross Ship
Leaves in 2-5 days
$7.70
$6.54
You save $1.16
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
