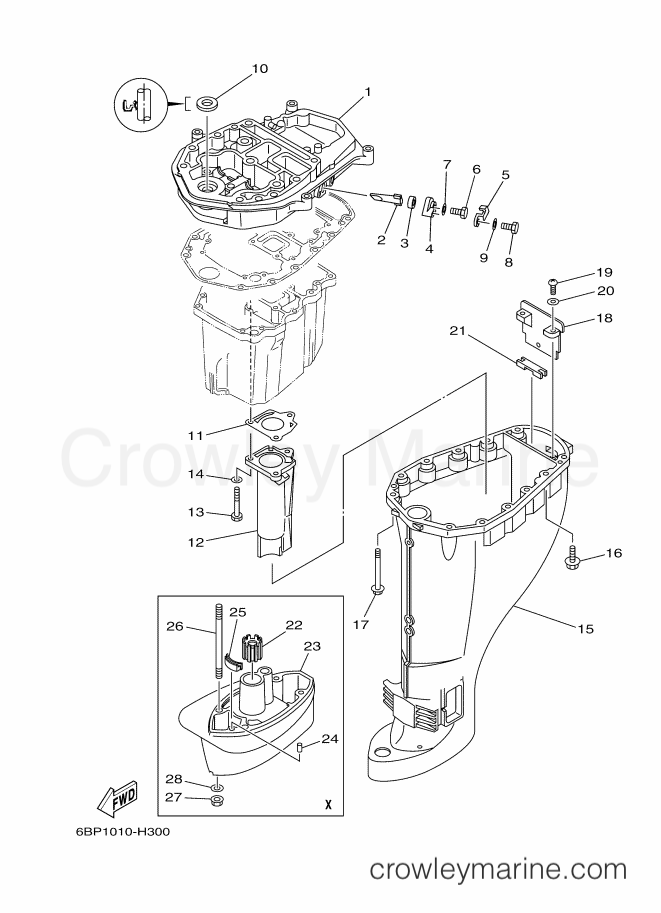

2010 International 25hp - F25DWHX (6BP2) [240] UPPER CASING diagram
![Yamaha Motors F25DWHX (6BP2) [240] - UPPER CASING](https://cdn.crowleymarine.com/yamaha/iziJ3LSI.png)
1
Yamaha Motors
GUIDE, EXHAUST (67C-13)99999-04325-00
Required: 1
GUIDE, EXHAUST
Supersedes: 67C-41137-13-5B
$463.89
You save $81.86
In stock
5+ in stock
$9.12
You save $2.28
3
Yamaha Motors
Anode Grommet66M-11328-01-00
Required: 1
GROMMET, ANODE
Supersedes: 66M-11328-00-00
In stock
5+ in stock
$1.08
You save $0.27
In stock
Only 2 remaining
$8.56
You save $2.14
In stock
Only 3 remaining
$5.00
You save $1.25
In stock
Only 1 remaining
$1.40
You save $0.35
7
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER
Supersedes: 92995-05600-00
In stock
Only 3 remaining
$0.64
You save $0.16
In stock
Only 1 remaining
$1.24
You save $0.31
9
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.28
You save $0.57
$13.30
You save $2.35
11
Yamaha Motors
Exhaust Manifold Gasket67C-41133-00-00
Required: 1
GASKET, EXHAUST MANIFOLD 1
$7.28
You save $1.82
12
Yamaha Motors
Exhaust Manifold68U-41131-00-CA
Required: 1
MANIFOLD, EXT. 1
Supersedes: 68U-41131-00-5B
$159.50
You save $28.15
13
Yamaha Motors
BOLT97080-06050-00
Required: 3
BOLT
Supersedes: 97075-06050-00
$4.72
You save $0.83
14
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.28
You save $0.57
15
Yamaha Motors
Upper Casing6BP-45111-00-8D
Required: 1
CASING, UPPER
Supersedes: 6BP-45111-00-4D
$496.44
You save $87.61
15
Yamaha Motors
Upper Casing6D5-45111-10-8D
Required: 1
CASING, UPPER
Supersedes: 6D5-45111-10-4D
$478.13
You save $84.38
16
Yamaha Motors
Bolt with Washer90119-08182-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-08102-00
$4.25
You save $0.75
17
Yamaha Motors
Bolt with Washer90119-08202-00
Required: 8
BOLT, WITH WASHER
Supersedes: 90119-08132-00
$5.99
You save $1.06
18
Yamaha Motors
Upper Casing Cover65W-45151-00-00
Required: 1
COVER, UPPER CASING
$10.84
You save $1.91
19
Yamaha Motors
Pan Head Screw97885-05016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 97880-05016-00
In stock
5+ in stock
$3.68
You save $0.92
20
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
WASHER, PLATE
In stock
Only 3 remaining
$0.64
You save $0.16
$6.54
You save $1.16
22
Required: 1
BUSHING, DRIVE SHAFT
Price unavailable
23
Required: 1
EXTENSION
Price unavailable
$4.72
You save $0.83
-50%
25
Yamaha Motors
DAMPER, SEAL61N-45375-01-00
Required: 1
DAMPER, SEAL
Supersedes: 61N-45375-00-00
In stock
Only 1 remaining
$6.08
You save $6.08
26
Required: 4
BOLT, STUD
Price unavailable
$2.92
You save $0.51
28
Yamaha Motors
Plate Washer92990-10600-00
Required: 4
WASHER
Supersedes: 92995-10600-00
In stock
5+ in stock
$2.40
You save $0.60
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
