All diagrams for this model

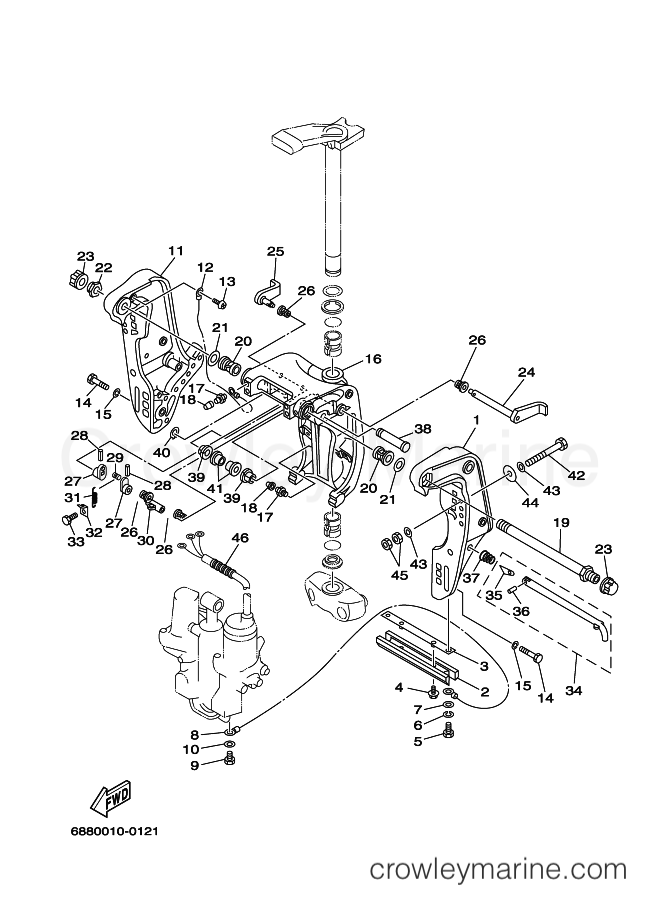

2003 International 85hp - 85AET (6882) [080] BRACKET 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 85AET (6882) [080] - BRACKET 1
Change View:
Clamp Bracket 1
1
Yamaha Motors
Clamp Bracket 16H1-43111-01-4D
Required: 1
BRACKET, CLAMP
Cross Ship
Leaves in 2-5 days
$332.50
$282.63
You save $49.88
More details
BOLT, HEXAGON DEEP RECESS
5
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
BOLT
9
Yamaha Motors
BOLT97095-06010-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
Clamp Bracket
11
Yamaha Motors
Clamp Bracket6H1-43112-00-8D
Required: 1
BRACKET, CLAMP
Supersedes: 6H1-43112-00-4D
Cross Ship
Leaves in 2-5 days
$309.15
$262.78
You save $46.37
More details
Pan Head Screw
13
Yamaha Motors
Pan Head Screw97885-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 97880-06012-00
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
Swivel Bracket
16
Yamaha Motors
Swivel Bracket6H1-43311-02-8D
Required: 1
BRACKET, SWIVEL 1
Supersedes: 6H1-43311-01-4D
Cross Ship
Leaves in 2-5 days
$630.45
$535.88
You save $94.57
More details
BOLT
33
Yamaha Motors
BOLT97095-06010-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
Tilt Lock Plate
35
Yamaha Motors
Tilt Lock Plate688-43165-00-00
Required: 1
. PLATE, TILT LOCK
Cross Ship
Leaves in 2-5 days
$12.55
$10.67
You save $1.88
More details
BOLT (L:105MM)
42
Yamaha Motors
BOLT (L:105MM)90101-12063-00
Required: 4
BOLT
Supersedes: 90101-12M65-00
Cross Ship
Leaves in 2-5 days
$33.25
$28.26
You save $4.99
More details
Nut
45
Yamaha Motors
Nut95380-12600-00
Required: 8
NUT
Cross Ship
Leaves in 2-5 days
$10.25
$8.71
You save $1.54
More details
Pipe
46
Yamaha Motors
Pipe90440-14M00-00
Required: 1
PIPE
Cross Ship
Leaves in 2-5 days
$5.95
$5.06
You save $0.89
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
