1990 International 70hp - 70CE (6J20) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

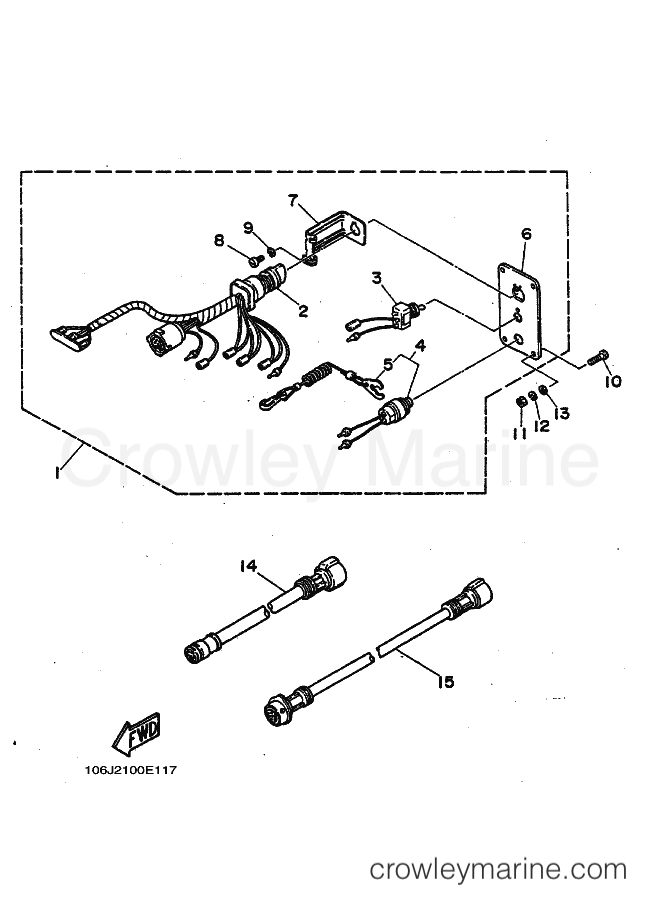

Yamaha Motors 70CE (6J20) [010] - ELECTRICAL 2
Change View:
PANEL SWITCH ASSY
1
Yamaha Motors
PANEL SWITCH ASSY689-82570-1D-00
Required: 1
PANEL SWITCH ASSY
Supersedes: 689-82570-15-00
Cross Ship
Leaves in 2-5 days
$278.00
$236.30
You save $41.70
More details
689-82510-08-00
2
Yamaha Motors
689-82510-08-00689-82510-09-00
Required: 1
.MAIN SWITCH ASSY
Supersedes: 689-82510-00-00
Cross Ship
Leaves in 2-5 days
$182.15
$154.83
You save $27.32
More details
Choke Switch
3
Yamaha Motors
Choke Switch6K1-82574-00-00
Required: 1
.SWITCH, choke
Supersedes: 703-82574-00-00
Cross Ship
Leaves in 2-5 days
$79.15
$67.28
You save $11.87
More details
Switch Panel
6
Yamaha Motors
Switch Panel689-82571-02-00
Required: 1
.PANEL, switch
Cross Ship
Leaves in 2-5 days
$34.15
$29.03
You save $5.12
More details
Cord Clamp Stay
7
Yamaha Motors
Cord Clamp Stay663-82581-01-00
Required: 1
.STAY, cord clamp
Cross Ship
Leaves in 2-5 days
$11.90
$10.12
You save $1.79
More details
Cylinder Head Screw
8
Yamaha Motors
Cylinder Head Screw98303-04008-00
Required: 1
.SCREW, cylinder head
Cross Ship
Leaves in 2-5 days
$4.80
$4.08
You save $0.72
More details
EXTENSION, WIRE HARNESS
14
Yamaha Motors
EXTENSION, WIRE HARNESS688-82586-51-00
Required: 1
EXTENSION, wireharness (L:5m)(7P)
Supersedes: 688-82586-50-00
Cross Ship
Leaves in 2-5 days
$144.55
$122.87
You save $21.68
More details
WIRE HARNESS EXTENSION 3.0M
15
Yamaha Motors
WIRE HARNESS EXTENSION 3.0M688-82586-31-00
Required: 1
EXTENSION, wireharness (L:3m)(7P)
Cross Ship
Leaves in 2-5 days
$139.00
$118.15
You save $20.85
More details
EXTENSION, WIRE HARNESS
15
Yamaha Motors
EXTENSION, WIRE HARNESS688-82586-12-00
Required: 1
EXTENSION, wireharness (L:2m)(7P)
Supersedes: 688-82586-11-00
Cross Ship
Leaves in 2-5 days
$103.65
$88.10
You save $15.55
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
