All diagrams for this model

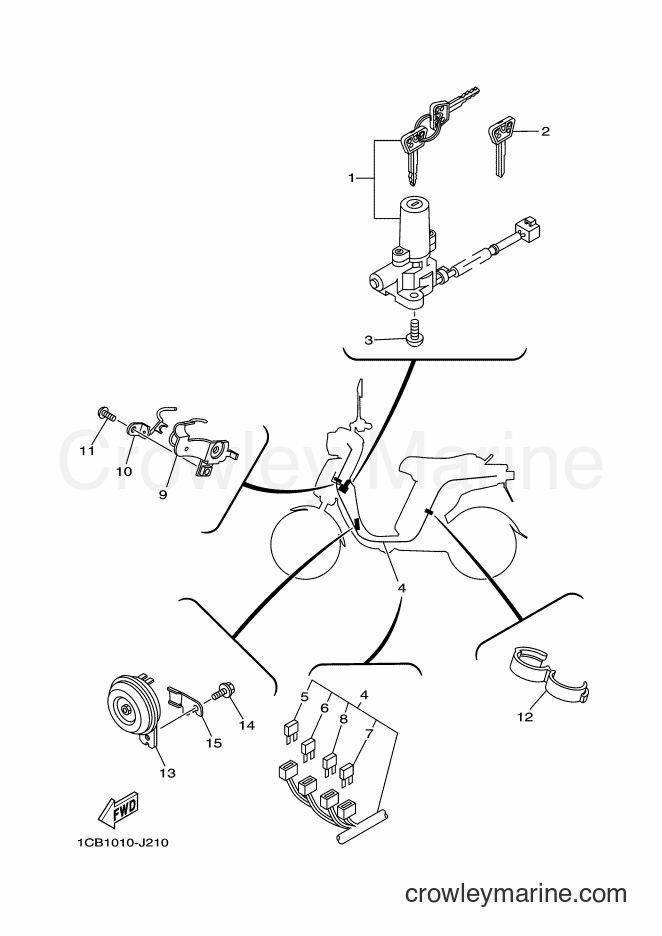

2011 Electric Scooter EC-03 - EC-03 (1CB3) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EC-03 (1CB3) [010] - ELECTRICAL 2
Change View:
1
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
BLANK KEY
2
Yamaha Motors
BLANK KEY4BH-82511-09-00
Required: 1
BLANK KEY
Cross Ship
Leaves in 2-5 days
$33.99
$28.89
You save $5.10
More details
Screw (M8 X 40)
3
Yamaha Motors
Screw (M8 X 40)90149-08002-00
Required: 2
SCREW
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
4
Required: 1
WIRE HARNESS ASSY
Price unavailable
5
Required: 1
. FUSE (5A-LP BL)
Price unavailable
6
Required: 1
. FUSE (7.5A-LP BL)
Price unavailable
Fuse (10A)
7
Yamaha Motors
Fuse (10A)67F-82151-40-00
Required: 1
. FUSE (10A-BL)
Supersedes: 5JJ-82151-30-00
Cross Ship
Leaves in 2-5 days
$7.10
$6.03
You save $1.07
More details
Fuse (12V/10A)
8
Yamaha Motors
Fuse (12V/10A)67F-82151-30-00
Required: 1
. FUSE (3A-BL)
Supersedes: 5JJ-82151-50-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
9
Required: 1
GUIDE, WIRE HARNESS
Price unavailable
10
Required: 1
CLAMP, CABLE
Price unavailable
SCREW (4JY)
11
Yamaha Motors
SCREW (4JY)92017-06010-00
Required: 1
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Clamp
12
Yamaha Motors
Clamp90464-16001-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$2.39
$2.03
You save $0.36
More details
13
Required: 1
HORN
Price unavailable
95817-06010-00
14
Yamaha Motors
95817-06010-0095812-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
15
Required: 1
GUIDE, WIRE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
