2000 Dirt Bike RT100 - RT100 (3ULB) [030] HANDLE SWITCH & LEVER diagram

1
Yamaha Motors
Handle Switch47J-83976-01-00
Required: 1
SWITCH, HANDLE 1
$40.79
You save $7.20
$15.72
You save $2.77

3
Yamaha Motors
98507-05020-0098506-05020-00
Required: 2
. SCREW, PAN HEAD
$1.06
You save $0.19

4
Yamaha Motors
Binding Screw98907-04008-00
Required: 1
. SCREW, BIND
Supersedes: 98906-04008-00
$0.42
You save $0.08

5
Yamaha Motors
Switch Cord Band437-83936-01-00
Required: 2
BAND, SWITCH CORD
$7.22
You save $1.27

6
Yamaha Motors
MINUS LEAD WIRE558-82116-00-00
Required: 1
WIRE, MINUS LEAD
$7.22
You save $1.27

7
Yamaha Motors
Lever Holder214-82911-01-00
Required: 1
HOLDER, LEVER 1
$52.69
You save $9.30

8
Yamaha Motors
LEVER 123X-83912-02-00
Required: 1
LEVER 1
Supersedes: 23X-83912-00-00
$26.34
You save $4.65
$8.07
You save $1.42
10
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
$2.46
You save $0.44
$8.07
You save $1.42

12
Yamaha Motors
Spring Washer92907-06100-00
Required: 1
WASHER, SPRING
In stock
Only 1 remaining
$1.10
You save $0.20

13
Yamaha Motors
Lever Holder233-82921-31-00
Required: 1
HOLDER, LEVER 2
$63.74
You save $11.25

14
Yamaha Motors
LEVER R23X-83922-01-00
Required: 1
LEVER 2
Supersedes: 23X-83922-00-00
$26.34
You save $4.65
$8.07
You save $1.42
16
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
$2.46
You save $0.44
$8.07
You save $1.42

18
Yamaha Motors
Spring Washer92907-06100-00
Required: 1
WASHER, SPRING
In stock
Only 1 remaining
$1.10
You save $0.20
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

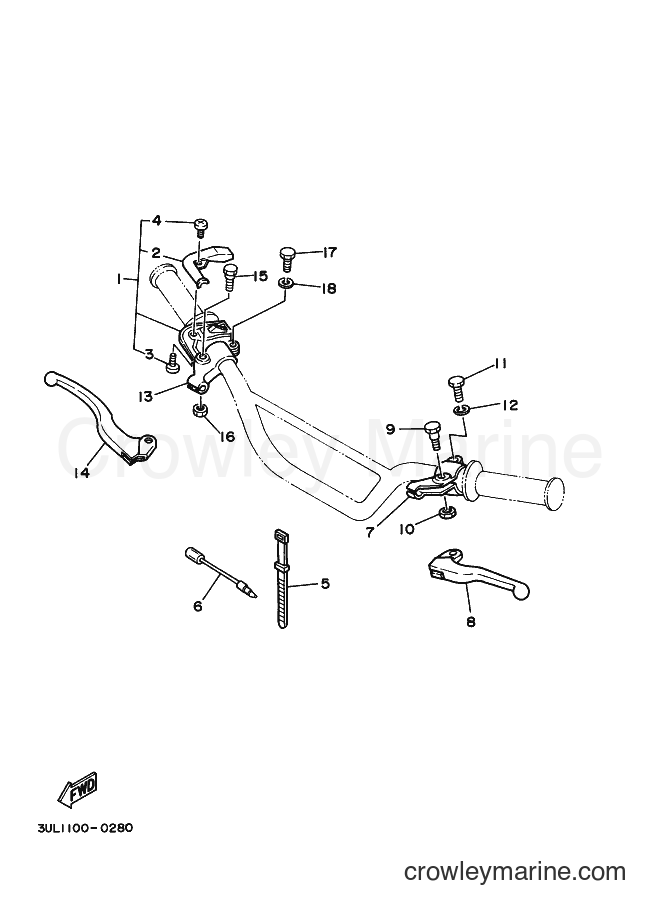

![Yamaha Motors RT100 (3ULB) [030] - HANDLE SWITCH & LEVER](https://cdn.crowleymarine.com/yamaha/MNIj3UE6.png)
