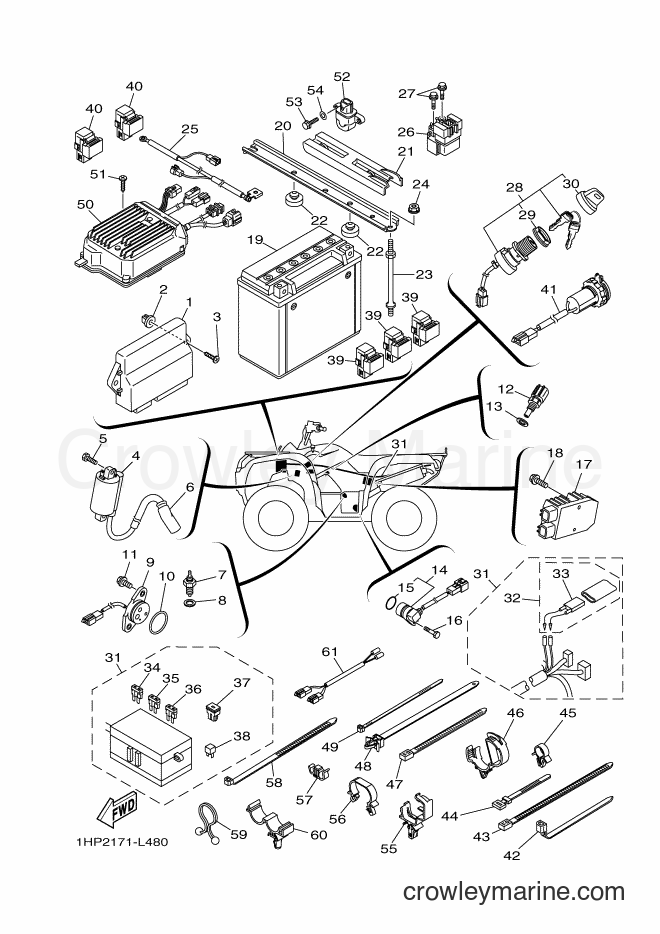

2012 ATV YFM700FWAD - YFM700FWAD (1HPF) [010] ELECTRICAL 1 diagram

1
Yamaha Motors
ENGINE CONTROL UNIT ASSEMBLY1HP-8591A-00-00
Required: 1
ENGINE CONTROL UNIT ASSY
$1022.54
You save $180.45
$2.00
You save $0.35

3
Yamaha Motors
Tapping Screw97702-60025-00
Required: 1
SCREW, TAPPING
$7.22
You save $1.27

4
Yamaha Motors
Ignition Coil Assembly1D7-82310-01-00
Required: 1
IGNITION COIL ASSY
$103.69
You save $18.30
$1.57
You save $0.28
$61.19
You save $10.80

7
Yamaha Motors
Neutral Switch Assembly3GB-82540-01-00
Required: 1
NEUTRAL SWITCH ASSY
$54.39
You save $9.60
$5.09
You save $0.90

9
Yamaha Motors
NEUTRAL SWITCH ASS3B4-82540-02-00
Required: 1
NEUTRAL SWITCH ASSY
Supersedes: 3B4-82540-01-00
$75.64
You save $13.35
$8.07
You save $1.42

11
Yamaha Motors
Bolt with Washer90119-06137-00
Required: 2
BOLT, WITH WASHER
$8.07
You save $1.42

12
Yamaha Motors
Thermosensor Assembly8CC-85790-01-00
Required: 1
THERMOSENSOR ASSY
$88.39
You save $15.60
$8.07
You save $1.42

14
Yamaha Motors
Speed Sensor3B4-83755-01-00
Required: 1
SENSOR, SPEED
Supersedes: 3B4-83755-00-00
$122.39
You save $21.60
In stock
Only 1 remaining
$6.37
You save $1.12
$1.78
You save $0.32

17
Yamaha Motors
Rectifier and Regulator1D7-81960-01-00
Required: 1
RECTIFIER & REGULATOR ASSY
Supersedes: 1D7-81960-00-00
$297.49
You save $52.50
18
Required: 2
BOLT, FLANGE
Price unavailable

19
Yamaha Motors
YTX20LBS YUASA BATTYTX-20LBS-00-00
Required: 1
BATTERY ASSY (YUASA YTX20L-BS)
Supersedes: 5FU-H2100-20-00
$141.09
You save $24.90

20
Yamaha Motors
BATTERY BRACKET1HP-H2128-00-00
Required: 1
BRACKET, BATTERY
$8.07
You save $1.42
21
Yamaha Motors
Battery Cover3B4-82129-00-00
Required: 1
COVER, BATTERY
In stock
Only 1 remaining
$6.37
You save $1.12
$8.07
You save $1.42

23
Yamaha Motors
Fitting Screw3B4-82133-10-00
Required: 2
SCREW, FITTING
$28.04
You save $4.95
In stock
Only 1 remaining
$2.21
You save $0.39

25
Yamaha Motors
MINUS LEAD WIRE34D-82116-01-00
Required: 1
WIRE, MINUS LEAD
Supersedes: 34D-82116-00-00
$58.64
You save $10.35

26
Yamaha Motors
Starter Relay Assembly3B4-81940-00-00
Required: 1
STARTER RELAY ASSY
$81.59
You save $14.40
In stock
Only 2 remaining
$8.07
You save $1.42

28
Yamaha Motors
MAIN SWITCH ASSY28P-82510-02-00
Required: 1
MAIN SWITCH ASSY
Supersedes: 28P-82510-00-00
$64.59
You save $11.40
29
Yamaha Motors
Main Switch Nut3HN-82569-00-00
Required: 1
. NUT, MAIN SWITCH
$5.09
You save $0.90
$13.17
You save $2.32

31
Yamaha Motors
Wire Harness Assembly1HP-82590-01-00
Required: 1
WIRE HARNESS ASSY
Supersedes: 1HP-82590-00-00
$760.74
You save $134.25

32
Yamaha Motors
Circuit Breaker Assembly5GT-82180-00-00
Required: 1
. CIRCUIT BREAKER ASSY
Supersedes: 4GB-82180-00-00
$30.59
You save $5.40

33
Yamaha Motors
Thermo Switch Assembly4GB-82560-00-00
Required: 1
. . THERMO SWITCH ASSY
$36.54
You save $6.45

34
Yamaha Motors
Fuse (10A)67F-82151-40-00
Required: 5
. FUSE (10A-BL)
Supersedes: 5JJ-82151-30-00
$6.03
You save $1.07

35
Yamaha Motors
Fuse (20A-BL)5JJ-82151-20-00
Required: 2
. FUSE (20A-BL)
$7.22
You save $1.27
36
Yamaha Motors
Fuse (5A)67F-82151-20-00
Required: 2
. FUSE (5A-BL)
Supersedes: 5JJ-82151-90-00
$5.14
You save $0.91

37
Yamaha Motors
Slow Blow FuseJR9-82151-00-00
Required: 2
. FUSE (40A)
Supersedes: 5PS-82151-00-00
$11.47
You save $2.02
$21.24
You save $3.75
39
Yamaha Motors
Starter Relay5DM-81950-01-00
Required: 3
RELAY ASSY (G8HN-1C4T-DJ-Y52)
Supersedes: 5DM-81950-00-00
In stock
Only 2 remaining
$27.19
You save $4.80
$37.39
You save $6.60

41
Yamaha Motors
TERMINAL COMP1HP-H254B-10-00
Required: 1
TERMINAL COMP.
$17.84
You save $3.15
$3.75
You save $0.66
$2.59
You save $0.46

44
Yamaha Motors
Switch Cord Band437-83936-01-00
Required: 4
BAND, SWITCH CORD
$7.22
You save $1.27
$8.07
You save $1.42
$4.01
You save $0.71
$3.15
You save $0.56
$8.07
You save $1.42
$6.37
You save $1.12

50
Yamaha Motors
POWER STRG. CONT. UN3B4-859A0-10-00
Required: 1
POWER STRG. CONT. UNIT ASSY
$846.59
You save $149.40

51
Yamaha Motors
Bind Screw98980-06020-00
Required: 1
SCREW, BIND
Supersedes: 98902-06020-00
$8.07
You save $1.42

52
Yamaha Motors
LEAN ANGLE SENSOR3B4-82576-00-00
Required: 1
SENSOR, LEAN ANGLE
$95.19
You save $16.80

53
Yamaha Motors
Bolt97095-05016-00
Required: 2
BOLT
Supersedes: 97002-05016-00
In stock
Only 3 remaining
$1.49
You save $0.26

54
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
WASHER, PLATE
Supersedes: 92902-05600-00
In stock
Only 4 remaining
$0.68
You save $0.12
$2.21
You save $0.39
$7.22
You save $1.27
$3.53
You save $0.62
In stock
Only 1 remaining
$4.67
You save $0.82
$3.15
You save $0.56
$7.22
You save $1.27
$28.89
You save $5.10
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
