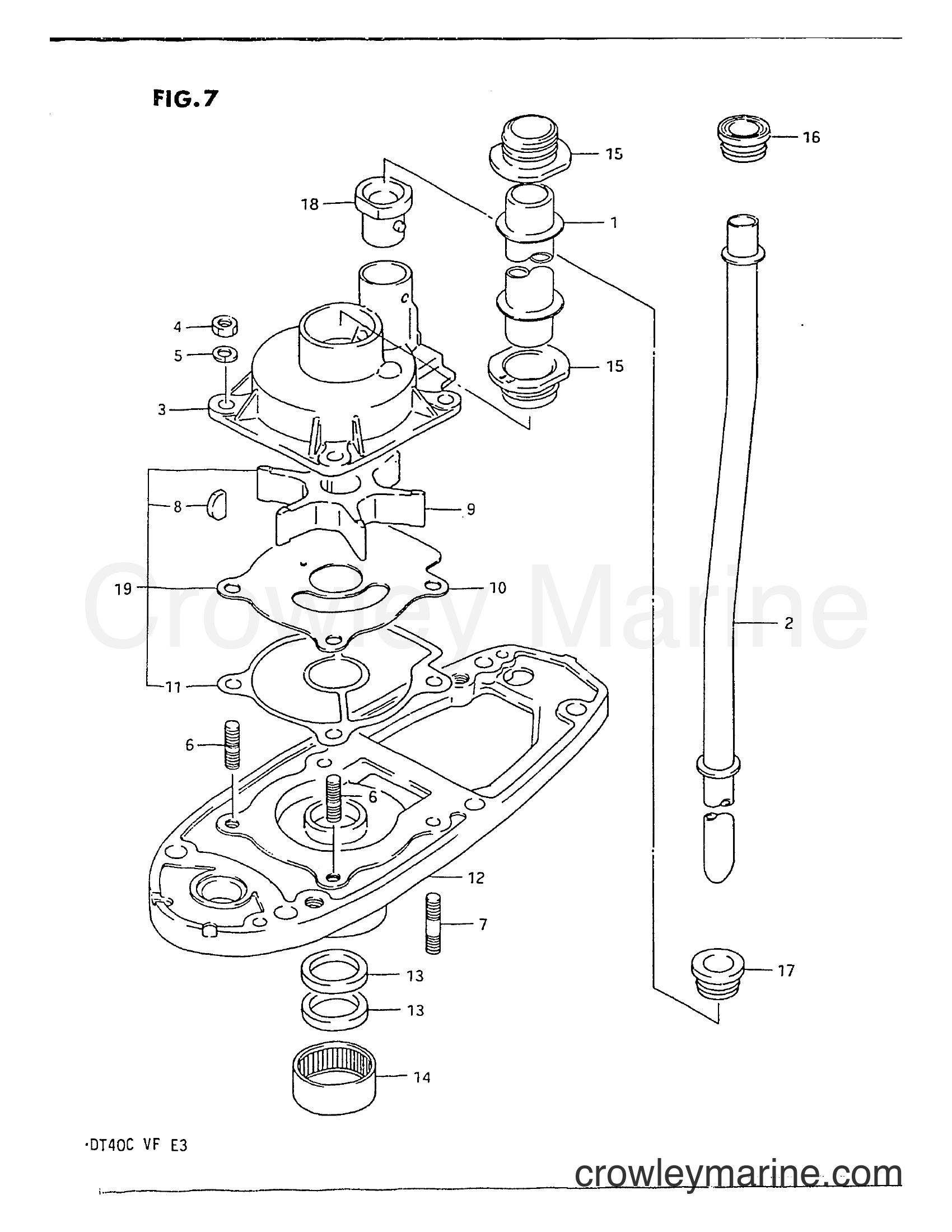

1984 Two-Stroke Outboard 40 - DT40 WATER PUMP diagram
1
Suzuki Marine
TUBE,WATER PUMP17431-92L10
Required: 1
TUBE, WATER PUMP SEAL (S)
Supersedes: 17431-94410
In stock
Only 1 remaining
$5.71
You save $1.43
1
Suzuki Marine
TUBE,WATER PUMP17431-92L20
Required: 1
TUBE, WATER PUMP SEAL (L)
Supersedes: 17431-94440
$13.76
You save $2.43
2
Suzuki Marine
TUBE,WATER(S)17561-92L50
Required: 1
TUBE, WATER (S)
Supersedes: 17561-94410
$23.43
You save $4.13
2
Suzuki Marine
Supersedes to 17561-92L6017561-92L10
Required: 1
TUBE, WATER (L)
Supersedes: 17561-94440
$18.34
You save $3.24
3
Suzuki Marine
Supersedes to 17411-9442117411-94420
Required: 1
CASE, WATER PUMP
Supersedes: 17411-94400
$30.53
You save $5.39
4
Suzuki Marine
Nut09140-06020
Required: 4
NUT
Supersedes: 09140-06004
In stock
Only 4 remaining
$1.62
You save $0.40
5
Suzuki Marine
WASHER09162-06006
Required: 4
LOCK WASHER
Supersedes: 09162-06001
$1.45
You save $0.36
In stock
Only 1 remaining
$1.54
You save $0.39
$2.83
You save $0.71
In stock
Only 1 remaining
$3.49
You save $0.87
9
Suzuki Marine
IMPELLER, WATER17461-96312
Required: 1
IMPELLER, WATER PUMP
Supersedes: 17461-96301
In stock
Only 1 remaining
$25.72
You save $6.43
10
Suzuki Marine
PANEL,PUMP CASE17471-94401
Required: 1
PANEL, PUMP CASE UNDER
Supersedes: 17471-94400
In stock
Only 1 remaining
$7.77
You save $1.94
11
Suzuki Marine
GASKET,PUMP CAS17472-96304
Required: 1
GASKET, PUMP CASE UNDER
Supersedes: 17472-96301
In stock
Only 1 remaining
$2.02
You save $0.51
12
Suzuki Marine
HOUSING,DRIVE S56130-94430-0ED
Required: 1
HOUSING, DRIVESHAFT BEARING
Supersedes: 56130-94400-02M
$138.38
You save $24.42
In stock
Only 3 remaining
$5.58
You save $1.40
14
Suzuki Marine
RN 25X33X15 BRG09263-25025
Required: 1
.BEARING (25X33X15)
$24.72
You save $6.18
15
Suzuki Marine
GROMMET,WATER P17432-96301
Required: 2
GROMMET, WATER PUMP SEAL TUBE
Supersedes: 17432-96300
In stock
Only 4 remaining
$2.11
You save $0.53
16
Suzuki Marine
GROMMET WATER T17563-94400
Required: 1
GROMMET, WATER TUBE,UPPER
In stock
Only 1 remaining
$3.49
You save $0.87
17
Suzuki Marine
GROMMET WATER T17565-94400
Required: 1
GROMMET, WATER TUBE,MIDDLE
In stock
Only 2 remaining
$4.15
You save $1.04
18
Suzuki Marine
GROMMET,WATER T17566-94401
Required: 1
GROMMET, WATER TUBE,LOWER
Supersedes: 17566-94400
In stock
Only 1 remaining
$2.25
You save $0.56
19
Suzuki Marine
Water Pump Repair Kit17400-96354
Required: 1
WATER PUMP KIT
Supersedes: 17400-96350
In stock
Only 2 remaining
$29.66
You save $7.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
